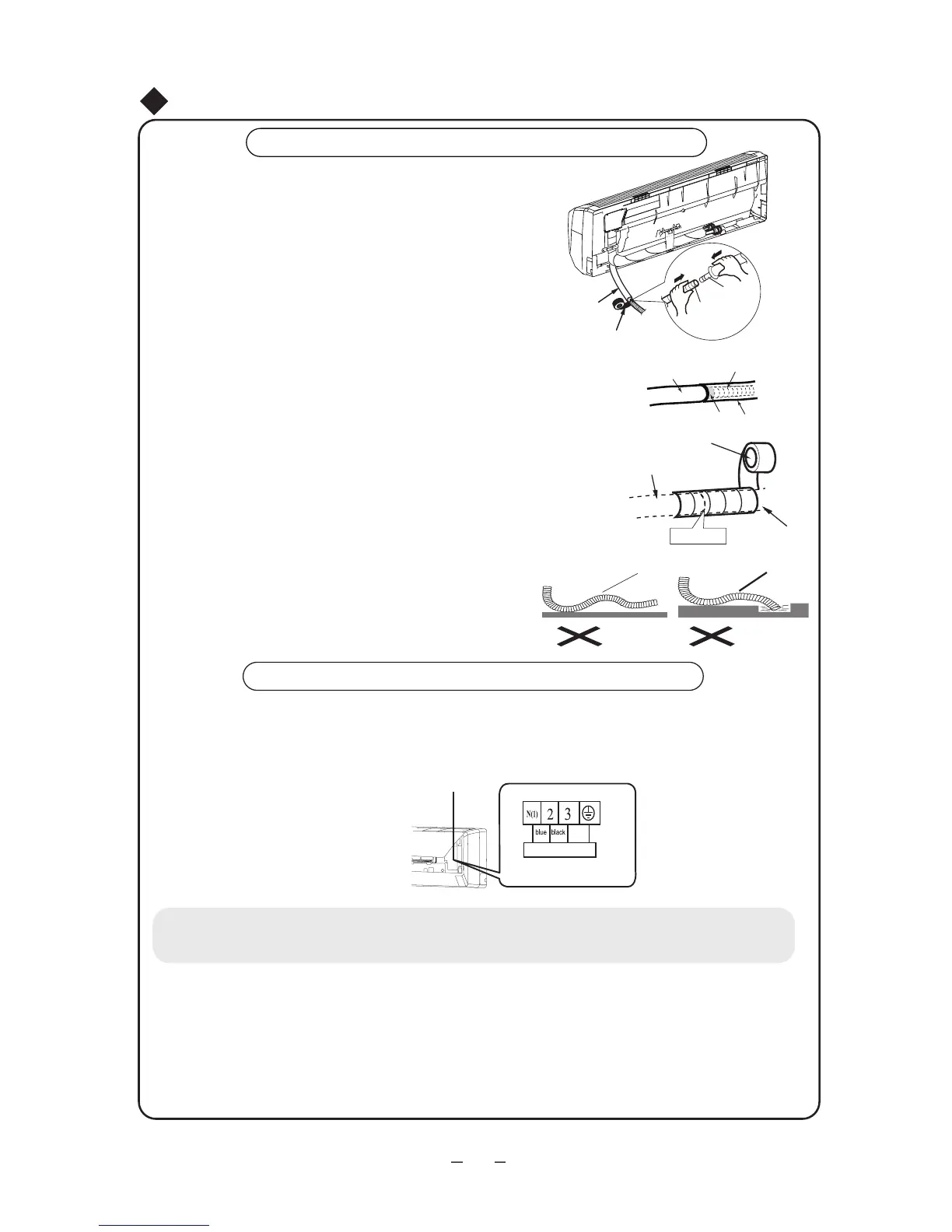

Connecting Indoor and Outdoor Electric Wires
5
Installation of Indoor Unit
Note: The insulating tube should be connected reliably with
the sleeve outside the outlet pipe. The drain hose should be
slanted downward slightly, without distortion, bulge or
fluctuation. Do not put the outlet in the water.
bulge
distortion
Flooded
●
●
●
After tightening the screws, pull the wire slightly to confirm whether it's firm or not.
●
● Make sure that all wiring connections are secure and the cover plates are reinstalled
NOTE:
All wires between indoor and outdoor units must be connected by the qualified electric
contractor.
Electric wires must be connected correctly. Improper connection may cause malfunction.
Tighten the terminal screws securely.
Make sure that the electric connections are earthed properly to prevent electric shock.
properly. Poor installation may cause fire or electric shock.
yellow-
green
brown
Fig.6
1.Open the front panel.
2.Remove the wiring cover as shown in Fig 6.
3.Make the power connection cord and pass through the hole at the back of indoor unit.
4.Reinstall the cord anchorage and wiring cover.
5.Reinstall
the front panel.
Wiring cover
outdoor unit connection
1.
2.
3.
Installation of Drain Hose
Connect the drain hose to the outlet pipe of the indoor unit.
Bind the joint with rubber belt.
Put the drain hose into insulating tube.
Wrap the insulating tube with wide rubber belt to prevent
the shift of insulating tube. Slant the drain hose downward
slightly for smooth drainage of condensate.
outlet pipe of
indoor unit
insulating tube
connected
insulating tube
drain hose
outlet pipe of
indoor unit
drain hose
outlet pipe of
indoor unit
outlet pipe of
indoor unit
rubber belt
rubber belt
rubber belt
