Gree GWC12KF-K3DNA5A Service Manual

13

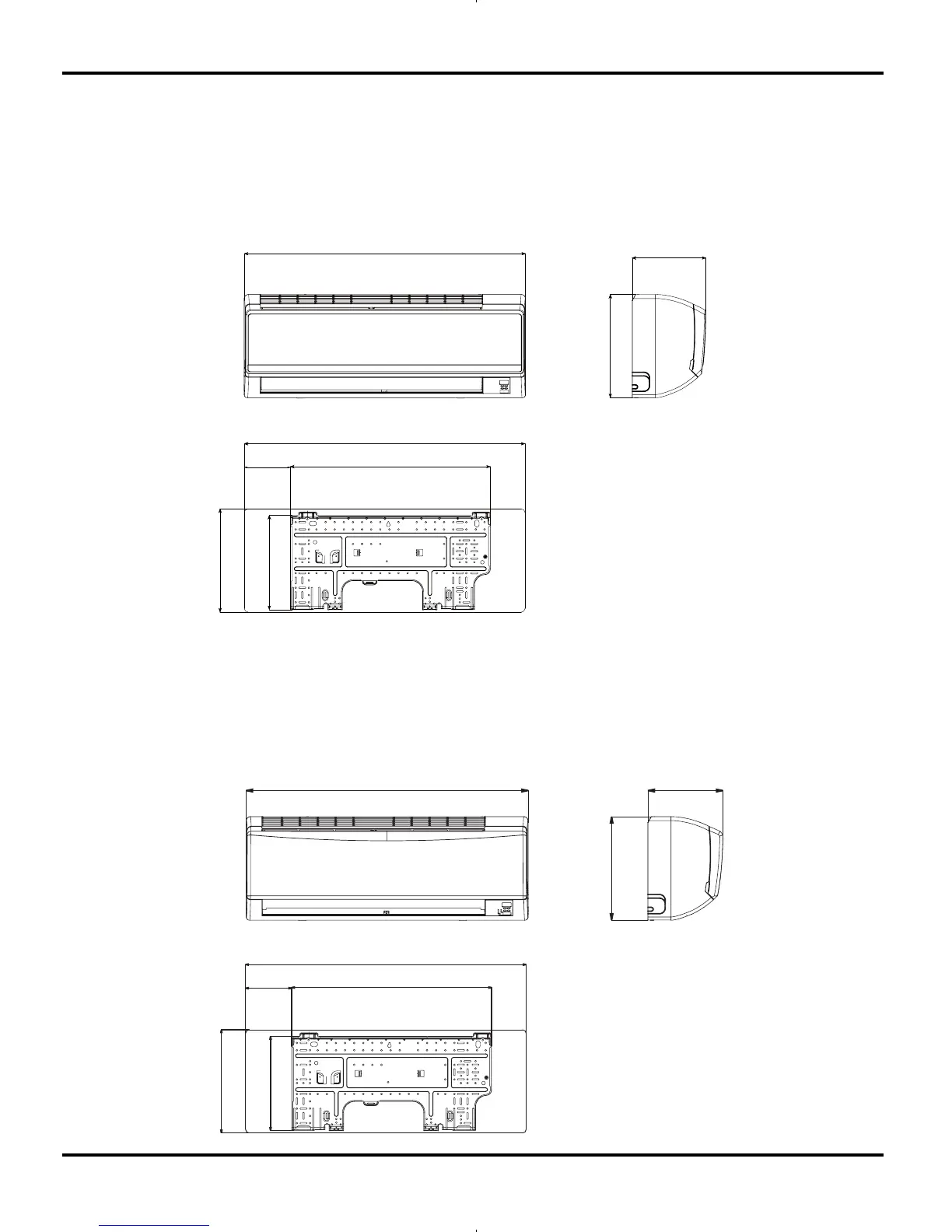

3. Construction Views
3.1 Indoor Unit
Constrction views
Models:GWC09KF-K3DNA5A/I,GWH09KF-K3DNA5A/I,GWC12KF-K3DNA5A/I,GWH12KF-K3DNA5A/I
Models:GWH09KF-K3DNA6A/I,GWH12KF-K3DNA6A/I
548.5
258.5
126.5
770
283
770
283
201
770
201
283
548.5
258.5
126.5
770
283
Unit:mm

Gree GWC12KF-K3DNA5A Specifications

General

Cooling Capacity	12000 BTU/h
Energy Efficiency Ratio (EER)	3.21
Power Supply	220-240V, 50Hz
Refrigerant	R410A
Refrigerant Type	R410A
Dimensions (Outdoor Unit)	776 x 540 x 320 mm
Type	Split System
Cooling Capacity (kW)	3.5 kW
Functions	Cooling, Heating, Dehumidification
Energy Efficiency Ratio (Cooling)	3.21 W/W
Coefficient of Performance (Heating)	3.62 W/W
Noise Level (Outdoor)	52 dB(A)
Operating Temperature (Cooling)	18°C to 43°C
Operating Temperature (Heating)	-7°C to 24°C
Power Input (Cooling)	1095 W
