5. Schematic Diagram
5.1 Electrical Data
5.2 Electrical wiring
Outdoor Unit
Symbol Color symbol Symbol Color symbol
WH
WHITE
BN
BROWN
YE
YELLOW
BU
BLUE
RD
RED
BK
BLACK
YEGN
YELLOW GREEN PROTECTIVE EARTH
Indoor Unit
Indoor Unit

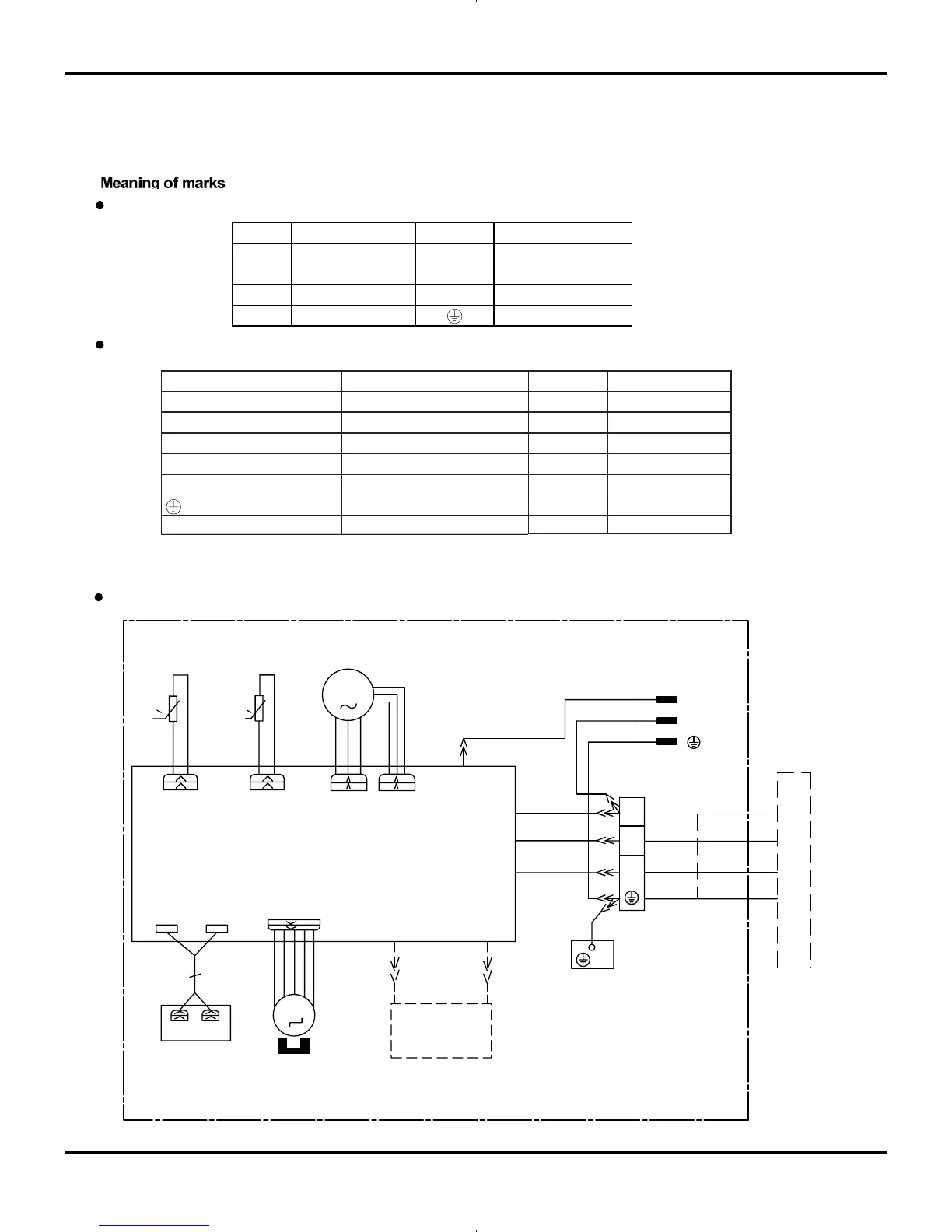

Schematic Diagram
Symbol Parts name Symbol Color symbol
L1
REACTOR
WH
WHITE
PCB1~PCB2
PRINTED CIRCUIT BOARD
YE
YELLOW
S10/S11S40/S70/S80/S90
CONNECTOR
RD
RED
SAT
OVERLOAD
BN
BROWN
COMP
COMPRESSOR
BU
BLUE
PROTECTIVE EARTH
BK
BLACK
YEGN
YELLOW GREEN
ORANGE
OG
to the models with cold-plasma function.
NOTE:The part with broken line is applicable
GENERATOR
COOL PLASMA
HEALTH-L HEALTH-N
AP2
MOTOR
SWING
DISPLAY
OUTDOOR UNIT
TUBE
TEM.SENSOR
ROOM
TEM.SENSOR
FAN
MOTOR
PG
RD
BU
M1
PGF
SWING-UD
DISP2
L-OUT
AC-L
AP1
BU
BN
BK
COM-OUT
YEGN
PE
BN
BK
RT2
0
DISP1
RT1
2
YEGN
3
YEGN
N
BU
BU
XT
N(1)
L
BN
POWER
M2
N
ROOM
TUBE
0
EVAPORATOR
