57
Technical Information
Service Manual
Outdoor Unit
1
Compressor UVW three phase input
interface
2 Interface of reactor
3 Interface of fan
4 4-way valve
5 Interface of earthing wire
6 Interface of live wire
7 Interface of netural wire
8 Interface of communication
9 Interface of electronic expansion valve
10 Overload interface of compressor
11 Interface of temperature sensor

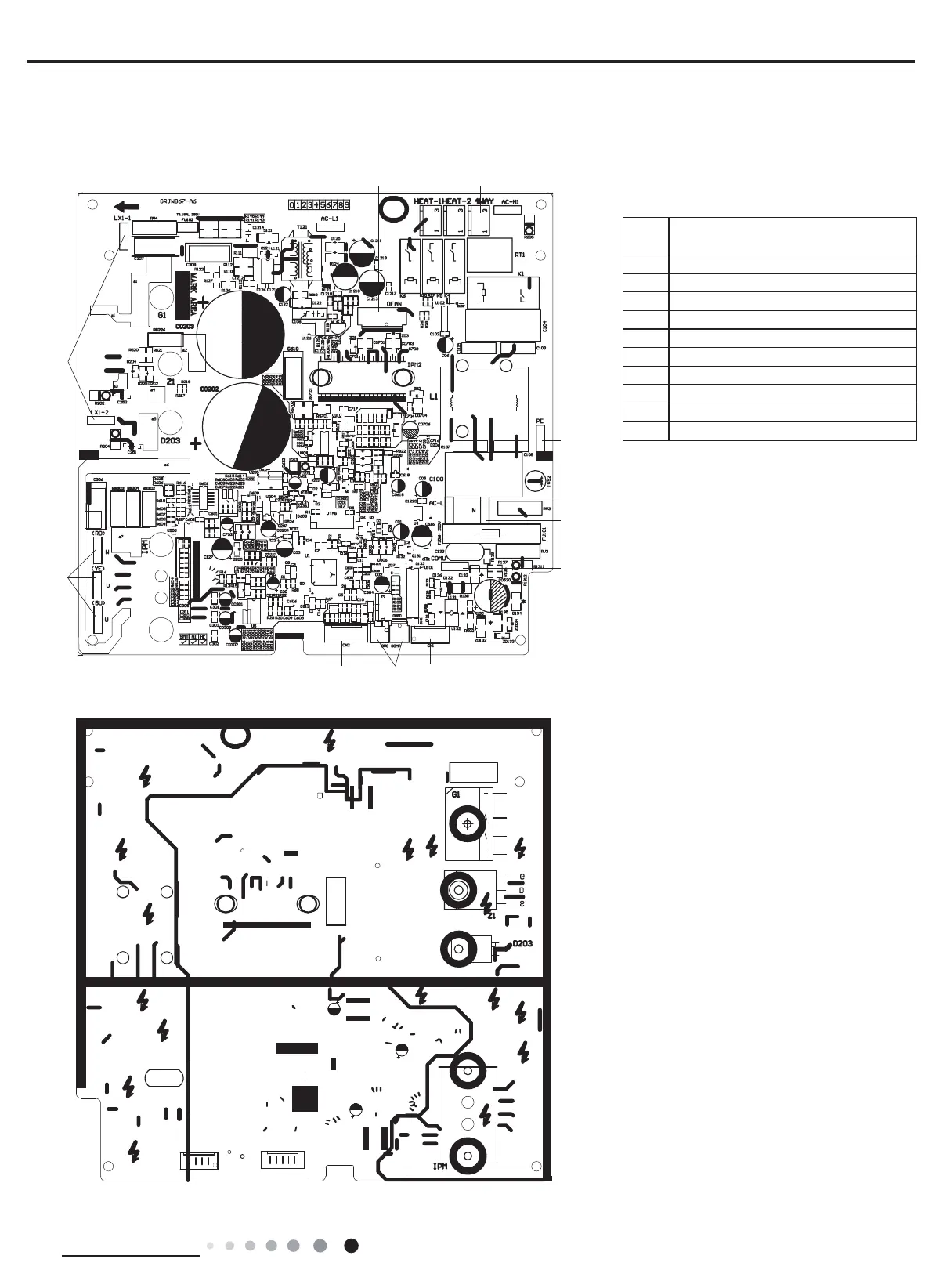

● Top view
● Bottom view
1
2
3 4
5
6
7
8
91011
GWH09QB-D3DNC6L/O GWH12QC-D3DNC6L/O
