Gree GWC18AFD-D3DNA1A/O User Manual

56
Technical Information
Service Manual

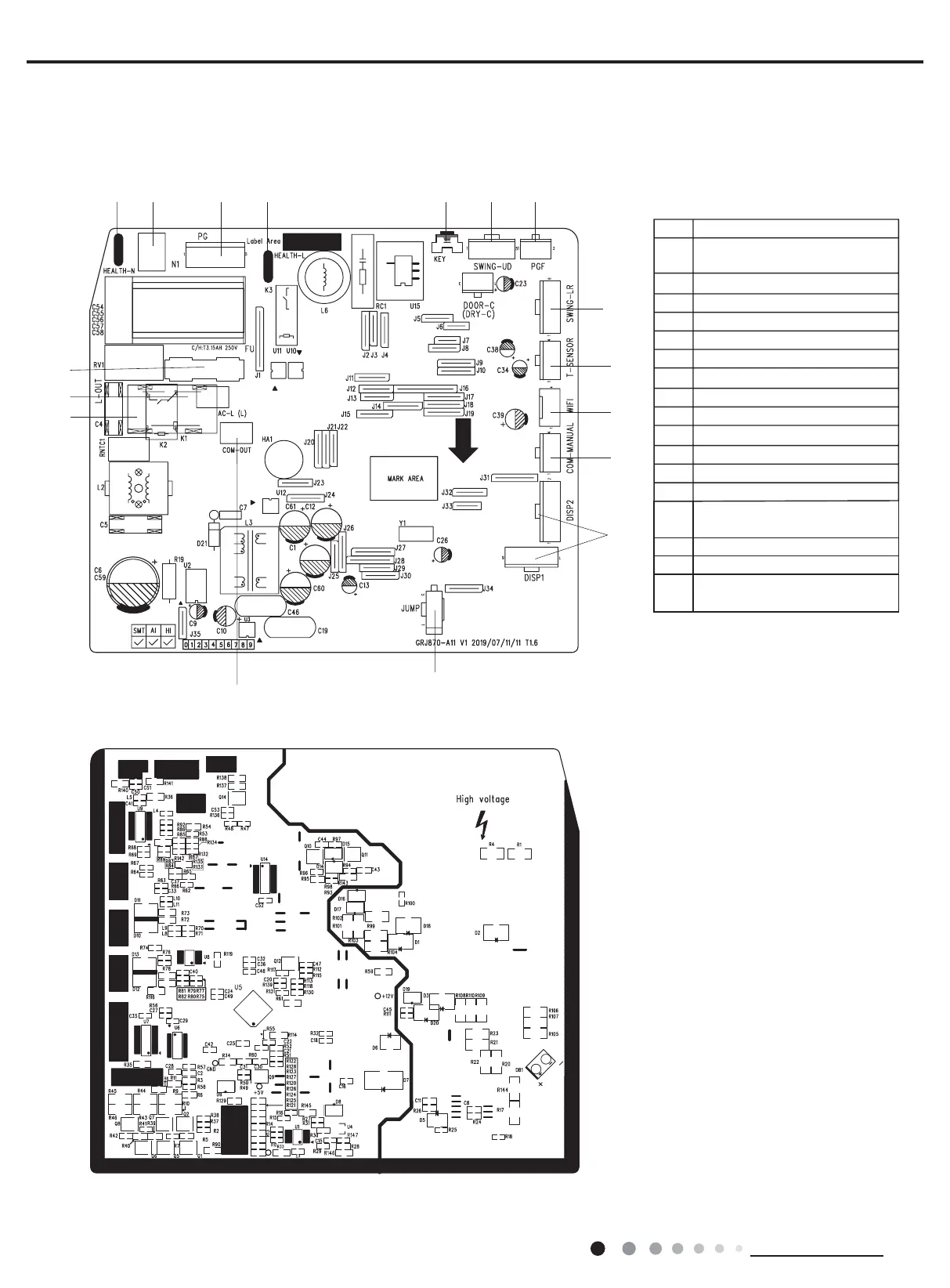

● Top view
● Bottom view
9
10
11
8
12
13
14
15
17
16
No. Name
1Interface of health function
neutral wire
2 Neutral wire terminal
3Motor terminal
4 Live wire terminal
5
6 Up&down swing terminal
14
Communication terminal for
indoor unit and outdoor unit
15 Live wire terminal
16 Fuse
17
Terminal of live wire used for
supplying power for outdoor unit
7
Interface of Motor feedback
8 Left&right swing terminal
9Terminal of temperature sensor
10
11 Wired controller terminal
12 Interface of display board
13 Jumper cap
Auto button
WIFI terminal
12 34 5 6 7
GWC12QC-D3DNB2M/I GWH12QC-D3DNB2M/I GWC24QE-D3DNB2R/I GWH24QE-D3DNB2R/I
GWC09QB-D3DNB2J/I GWH09QB-D3DNB2J/I

Gree GWC18AFD-D3DNA1A/O Specifications

General

Brand	Gree
Model	GWC18AFD-D3DNA1A/O
Category	Air Conditioner
Language	English
