Technical Information
Service Manual
GWC24QE-D3DNB2R/O GWH24QE-D3DNB2R/O
No. Name
1
Compressor three phase input
interface
2
3
Compressor overload protection
interface
Interface of temperature sensor
4
Interface of electronic expansion
valve
5Interface of fan
64-way valve interface
7
Interface of electric heating fo
r
compressor
9Interface of netural wire
8Interface of live wire
10 Interface of earthing wire
11 Interface of netural wire

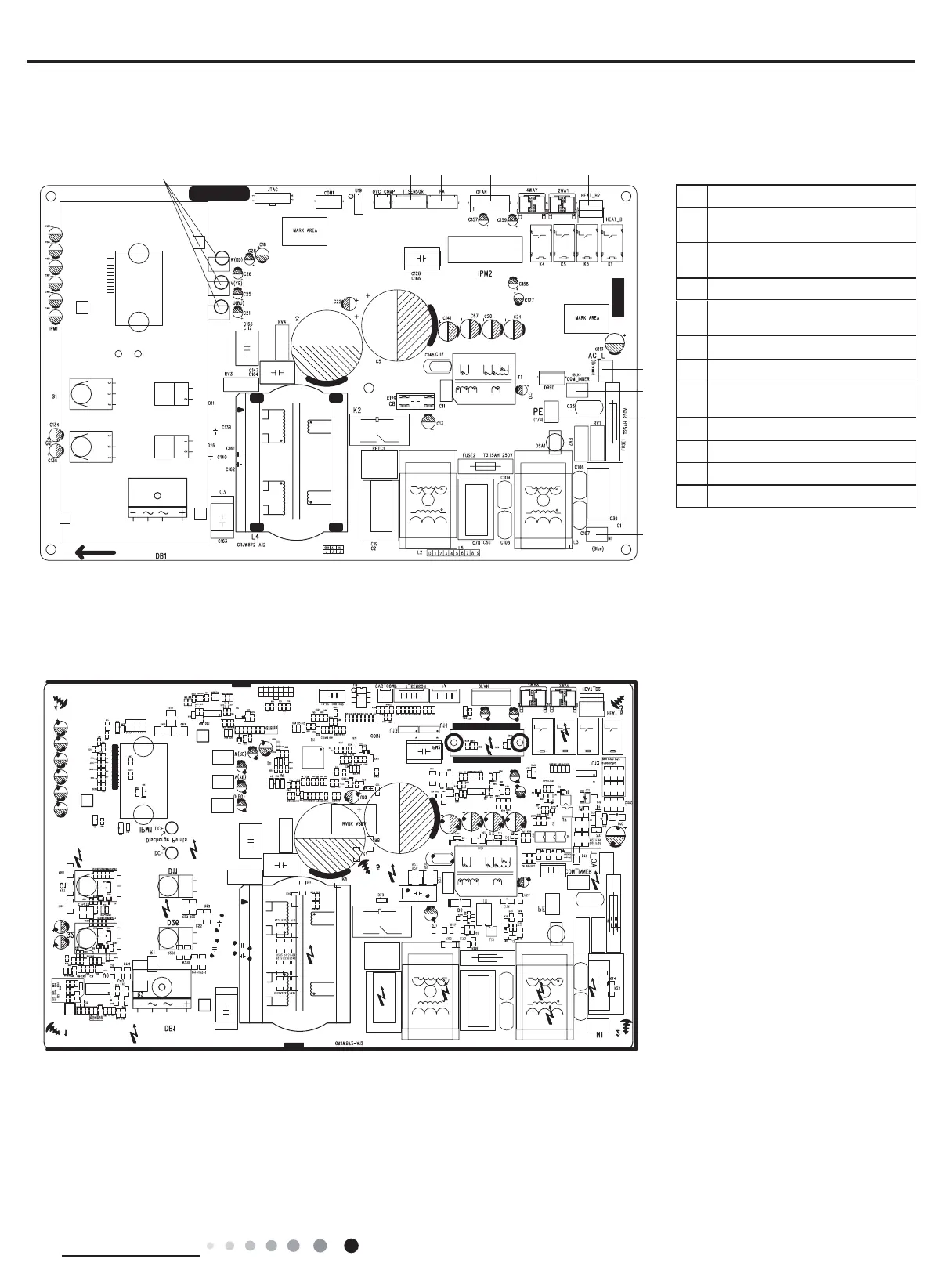

● Top view
● Bottom view
1234 657
8
9
10
11
