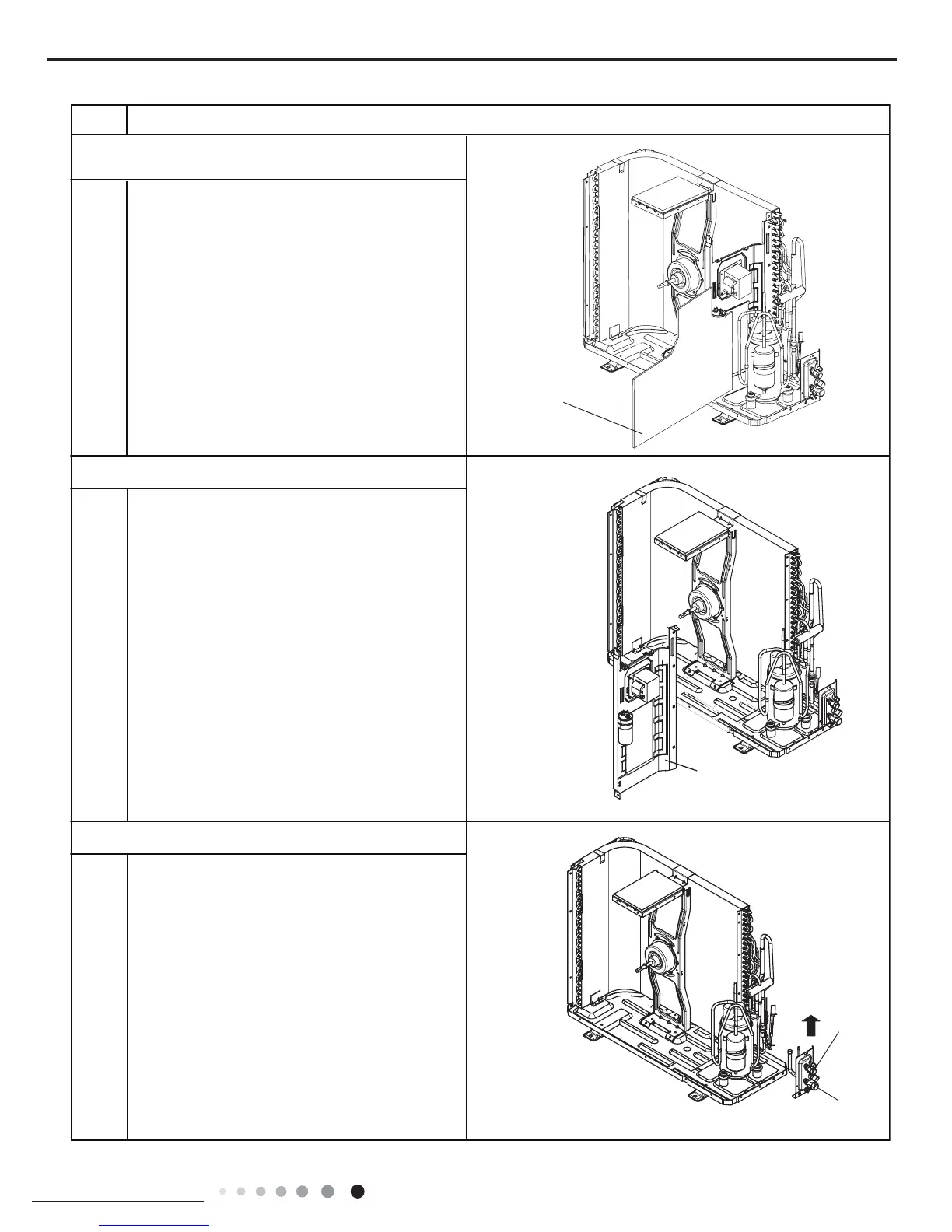

6.Remove sound-proof sponge
7.Remove isolation sheet
8.Remove gas valve and liquid valve
Remove the soundproof sponge wrapping the
compressor.
Remove screws fixing isolation sheet and then
remove the isolation sheet.
Twist off the 2 bolts fixing the valve sub-assy.
Unsolder the soldering joint between gas valve and
air-return pipe and then remove the gas valve.
(note: when unsoldering the soldering joint, wrap the
gas valve with wet cloth completely to avoid the
damage to valve, and release all refrigerant
completely at first). Unsolder the soldering joint
between liquid valve and connection pipe of liquid
valve, and then remove the liquid valve.
ProcedureSteps
isolation
sheet
sound-proof sponge
gas valve
liquid valve
