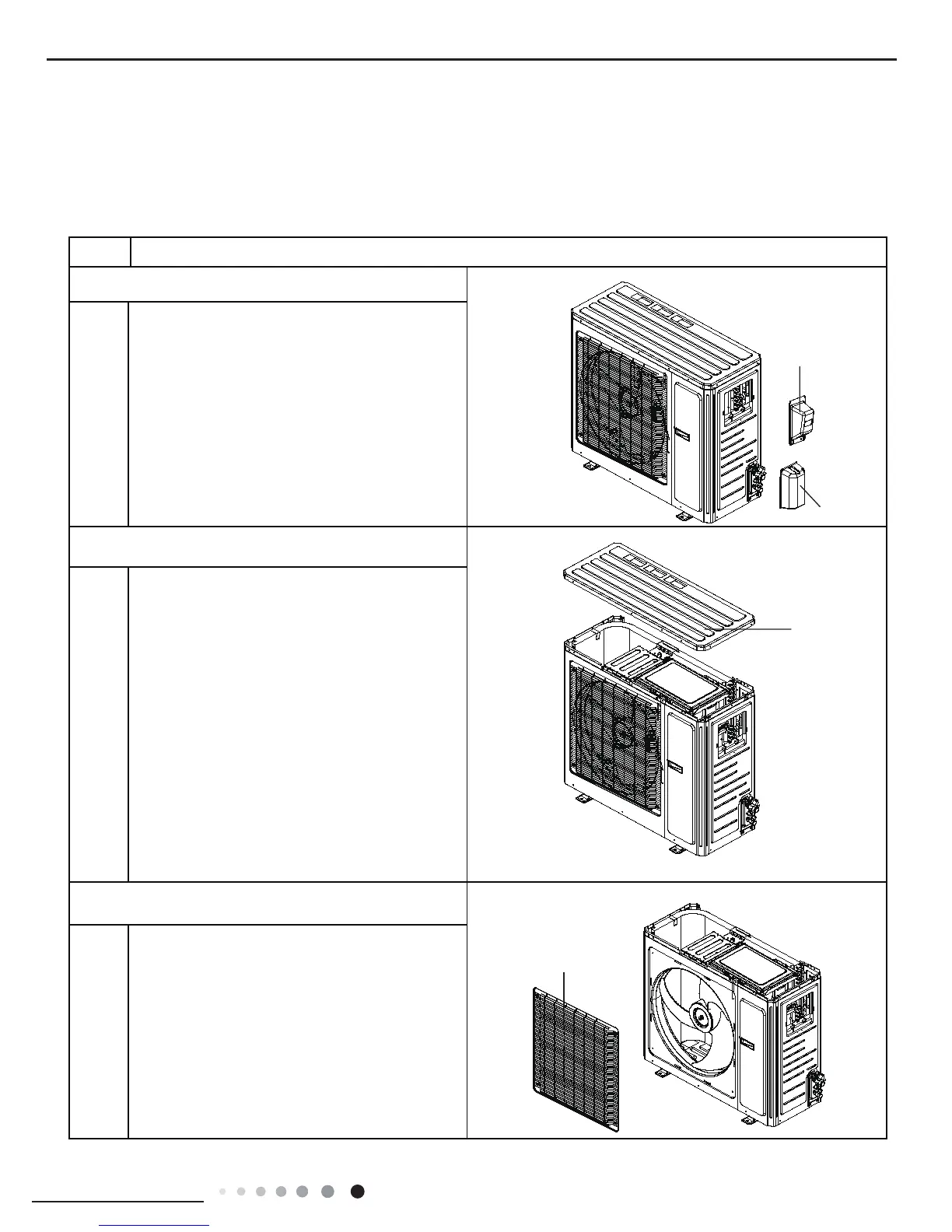

1.Remove handle and valve cover
3.Remove front grill
Twist off the screws used for fixing the handle, pull
the handle upward to remove it.Loosen the screws
fixing the valve cover and then remove it.
ProcedureSteps
2.Remove top cover
Remove connection screws connecting the top
cover plate with the front panel and the right
side plate,and then remove the top cover.
Remove the screws connecting the front grill and
the front panel. Remove the front grill.
handle
valve cover
top cover
front grill
NOTE:Take heat model for example.
24K:
