Technical Information
Service Manual

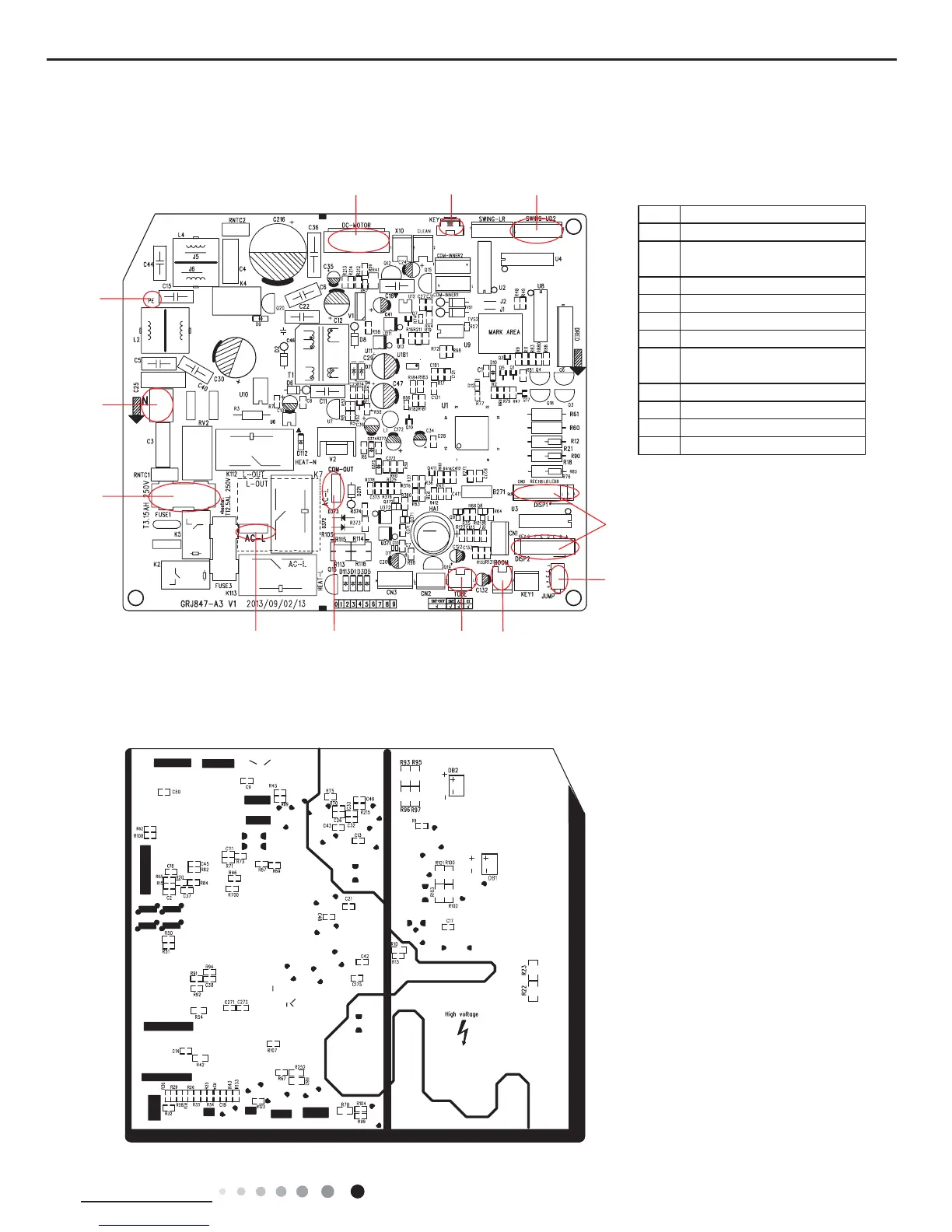

● Top view
● Bottom view
1 DC fan interface
2 Auto button
3
Up and down swing terminal
interface
4 Display terminal interface
5 Jumper cap
6 Ambient temp. sensor
7 Tube temp. sensor
8
IDU and ODU communication
interface
9 Live wire interface
10 Fuse
11 Neutral wire interface
12 Earth wire terminal interface
1 2 3
4
5
6789
10
11
12
GWC24MD-D3DNA3F/I GWC24MD-D3DNA5F/I GWH24MD-D3DNA3F/I GWH24MD-D3DNA8F/I GWH24MD-D3DNA5F/I
