22
Technical Information
Service Manual
1 2 3 4 5 6 7
8
9
10
11
12
13

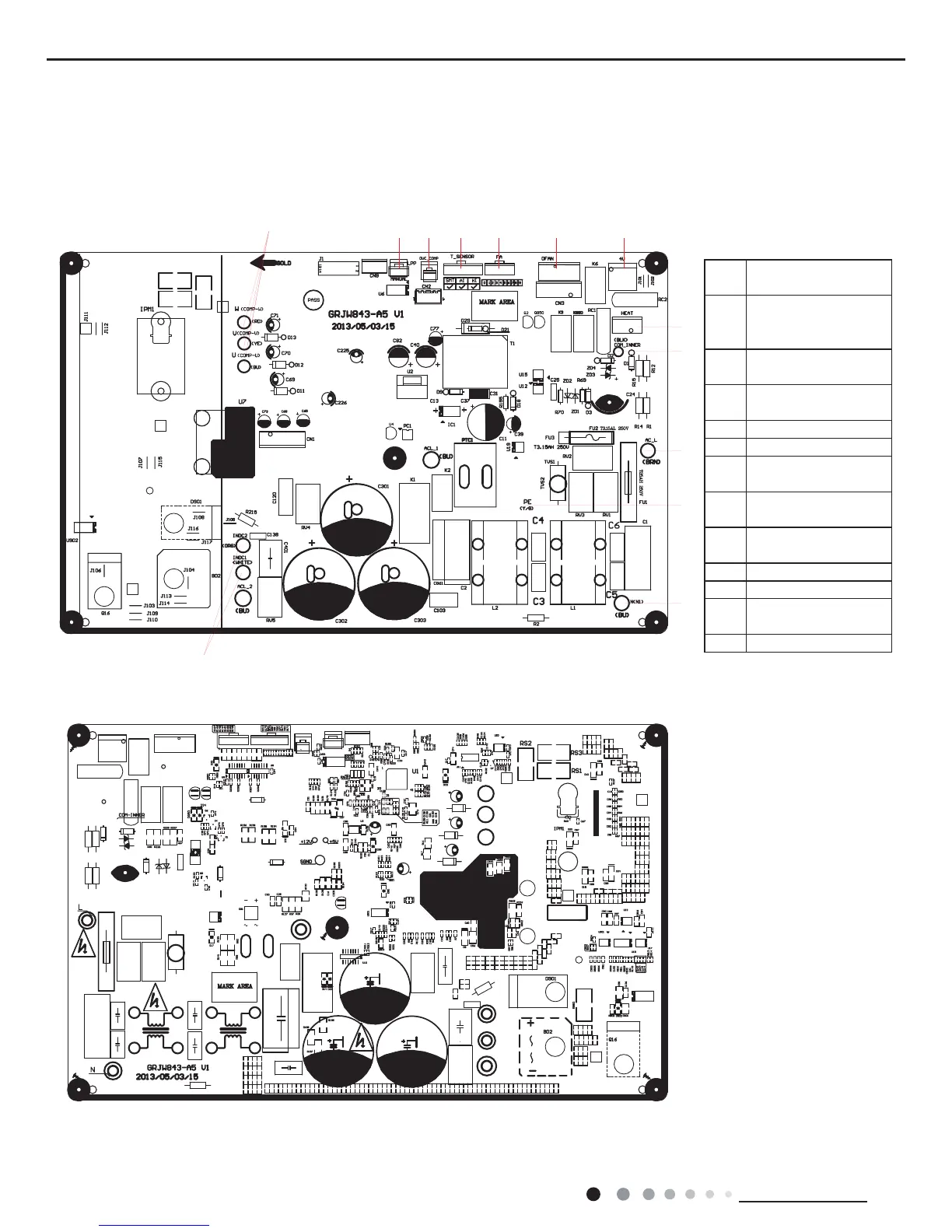

Outdoor Unit
● Top view
● Bottom view
1
Compressor wiring
connection terminal
2
ODU heat exchanger
middle copper pipe
temp. sensor terminal
3
Compressor overload
protection terminal
4
ODU temp. sensor
terminal
5 EXV terminal
6 Outdoor fan terminal
7
Four-way valve
terminal
8
Chassis electric heating
wiring terminal
9
Communication cable
with IDU
10 Power supply live wire
11 Earth wire
12
Power supply neutral
wire
13 PFC inductance wire
GWC18MC-D3DNA3D/O GWH18MC-D3DNA3D/O GWH18MC-D3DNA3D/O(electric heating band)
