23
Technical Information
Service Manual

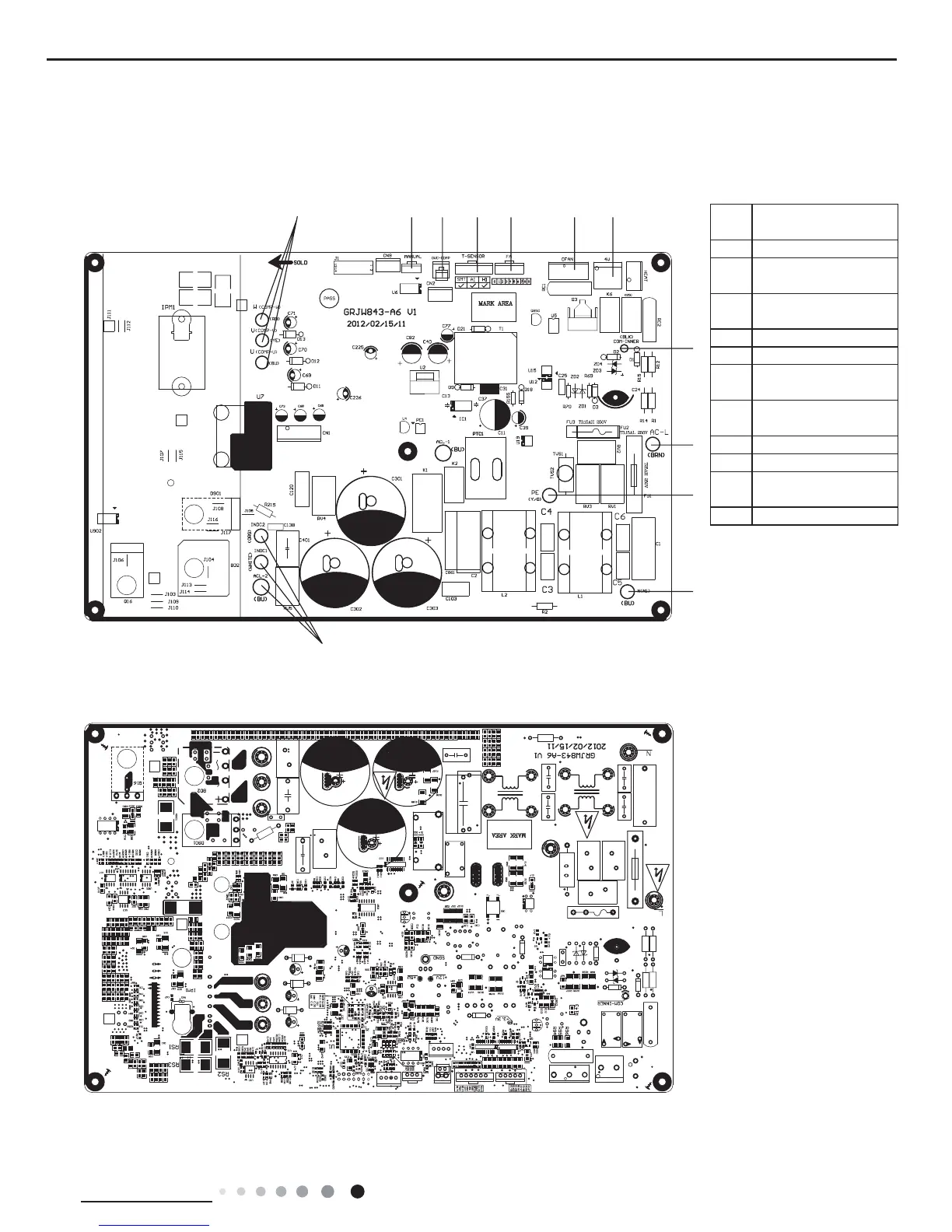

● Top view
GWC24MD-D3DNA3D/O GWH24MD-D3DNA3D/O GWH24MD-D3DNA3D/O(electric heating band)
1 2 3 4 5 6 7
8
9
10
11
12
● Bottom view
1
Compressor wiring
connection terminal
2
低温制冷感温包端子
3
Compressor overload
protection terminal
4
ODU temp. sensor
terminal
5 EXV terminal
6 Outdoor fan terminal
7
Four-way valve
terminal
8
Communication cable
with IDU
9 Power supply live wire
10 Earth wire
11
Power supply neutral
wire
12 PFC inductance wire
