Installation and Maintenance
Service Manual
11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Warning: Be sure to wait for a minimum
of 20 minutes after turning off all power
supplies and discharge the refrigerant
completely before removal.

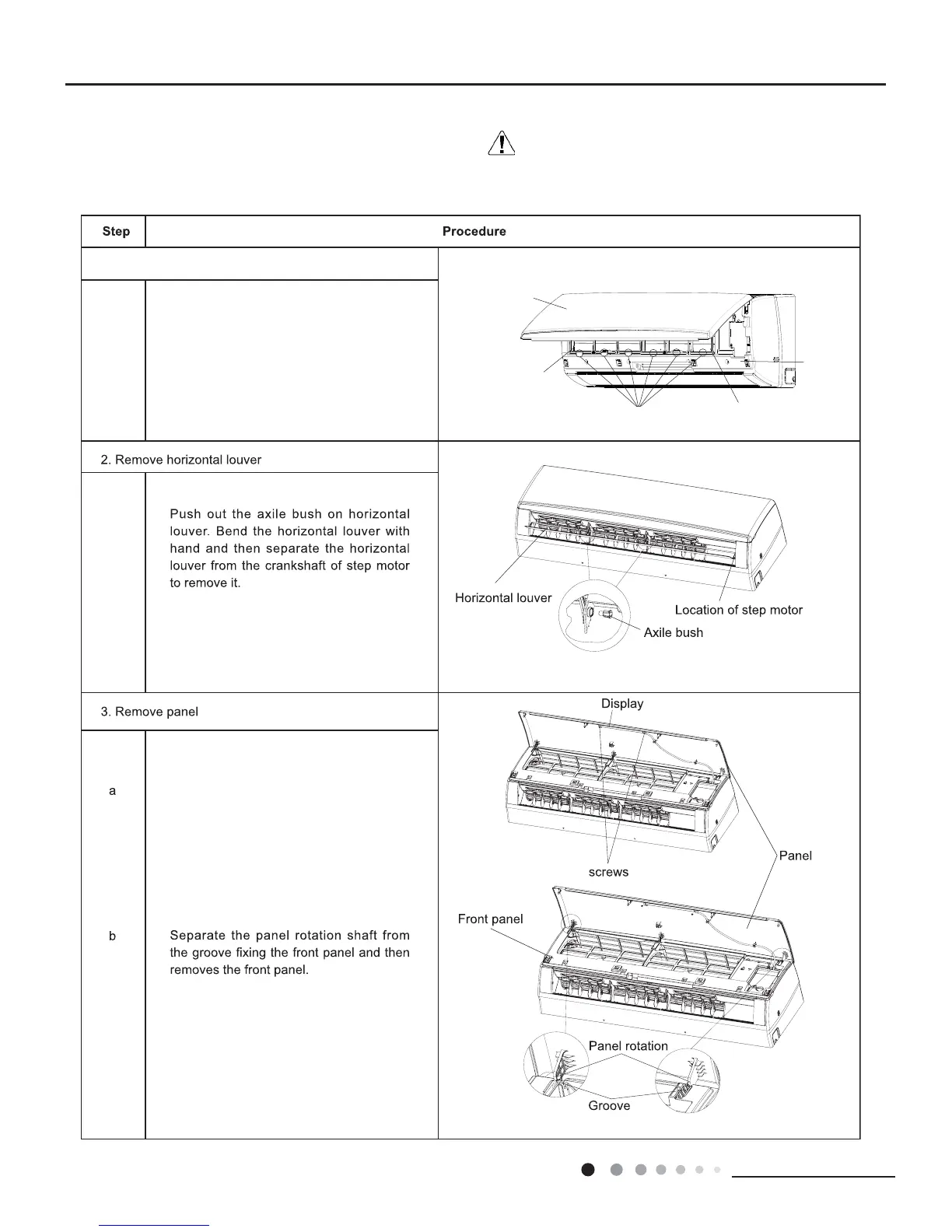

1. Remove filter ass y
Open the front panel. Push the left and right
filters to make them break away from the
groove on the front case. Then remove the left
and right filters one by one.
Front panel
Left filter
Groove
R ight filter
front
case
Screw off the 2 screws that are locking the
display board. Separate the display board from
the front panel.
To Next Page
