Gree GWH(09)KF-K3DNA5E/I - PCB Printed Diagram

8
Technical Information
Service Manual

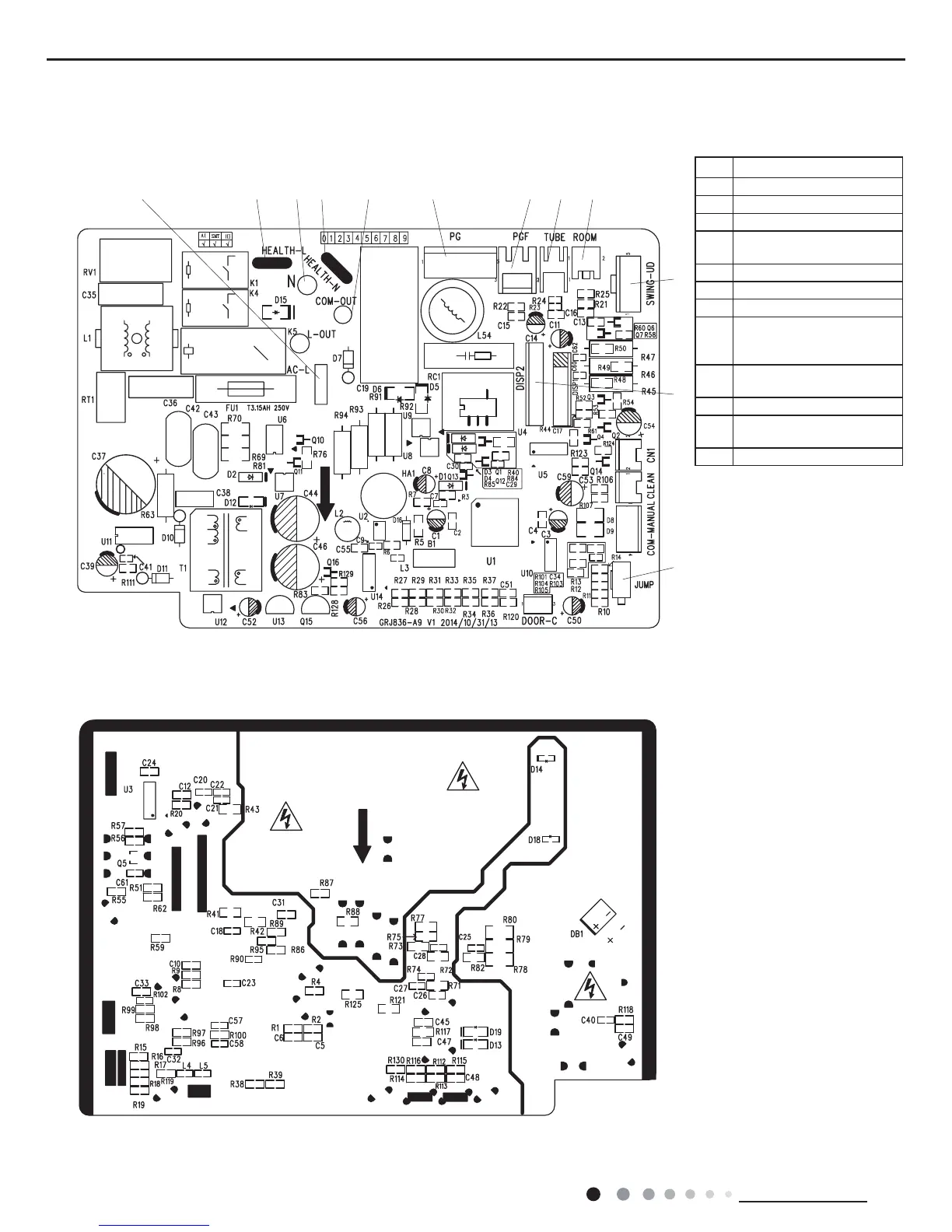

4.2 PCB Printed Diagram
● Top view
● Bottom view
(1) 07/09/12K
No. Name
1 Jumper cap
2 Display interface 1, 2
3 Up&down swing
4
Ambient temperature
sensor
5 Tube temperature sensor
6 PG feedback interface
7 PG motor interface
8
Communication interface
between live wire and
neutral wire
9
Neutral wire for healthy
function
10 Interface of neutral wire
11
Live wire for healthy
function
12 Interface of live wire
1
2
3
456
78
91011
12
