Gree GWH(09)KF-K3DNA5E/I User Manual

10
Technical Information
Service Manual
5. Function and Control

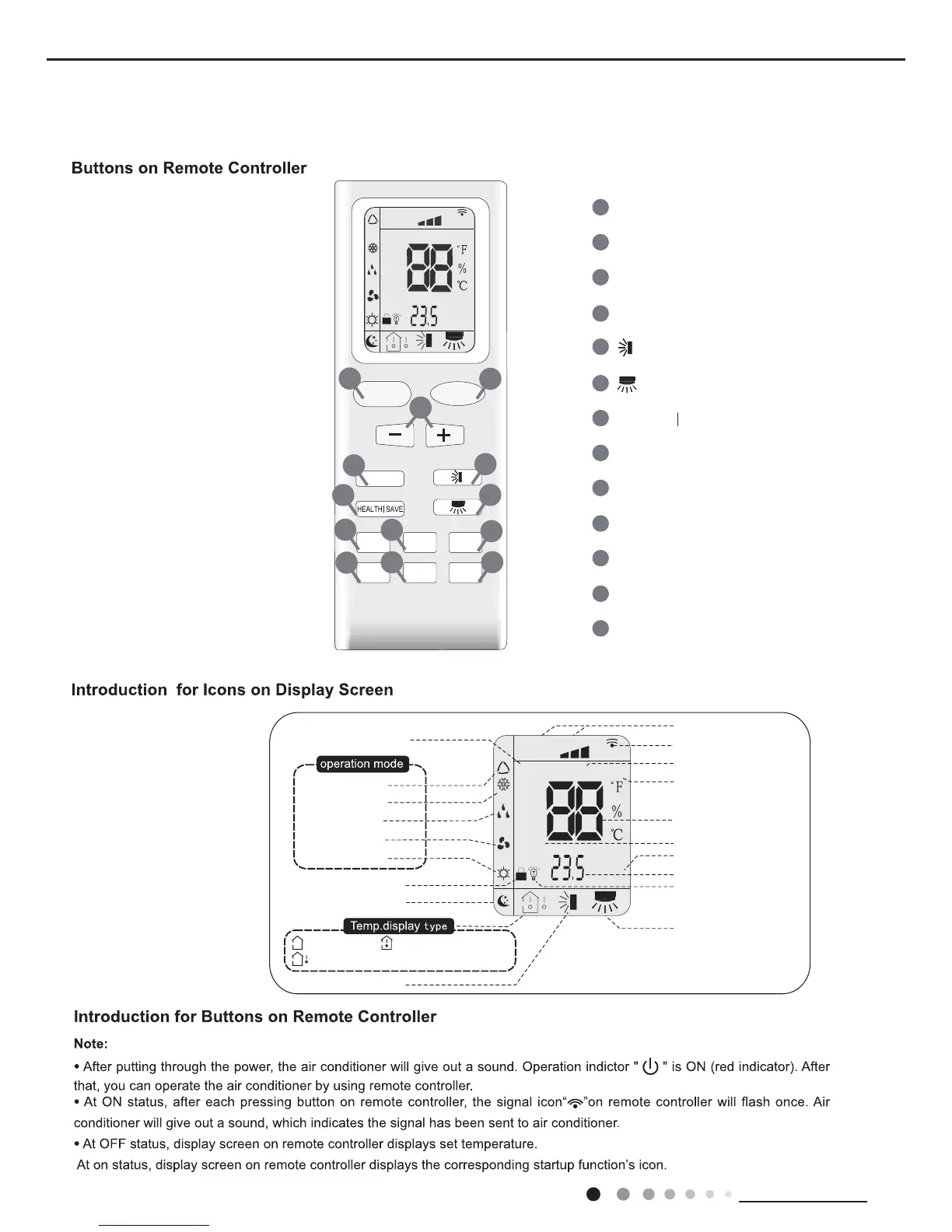

5.1 Remote Controller Introduction
ON/OFF Button
2
3
1
5
6
4
9
10
8
12
13
11
MODE Button
+/- Button
X-FAN Button
TEMP Button
TURBO Button
SLEEP Button
LIGHT Button
Button
HEALTH SAVE Button
7
Button
TIMER Button
FAN Button
FAN
AUTO
OPER
HEALTH
AIR
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
ON/OFF
MODE
FAN
X-FAN
TURBO
TEMP
TIMER
SLEEP
LIGHT
2
10
7
9
12
8
3
11
6
5
13
4
1
Child lock
Left&right swing
Sleep mode
Auto mode
Air mode
Cool mode
Heat mode
Fan mode
Dry mode
Up&down swing
:Indoor ambient temp.:Set temp.
:Outdoor ambient tep.
FAN
OPER
AUTO
HEALTH
AIR
FILTER
TURBO
ON/OFF
X-FAN
HOUR
HUMIDITY
TIMER ON/TIMER OFF
Set time
Light
Send signal
Sleep mode
X-fan
Set fan speed
Set temperature
Turbo mode
Temp. display type
Operation mode

Gree GWH(09)KF-K3DNA5E/I Specifications

General

Cooling Capacity	9000 BTU/h
Energy Efficiency Ratio (EER)	3.21
Coefficient of Performance (COP)	3.61
Power Supply	220-240V, 50Hz
Refrigerant	R32
Noise Level (Indoor/Outdoor)	39/50 dB(A)
Type	Split
