92
Installation and Maintenance
Service Manual
Steps Procedure

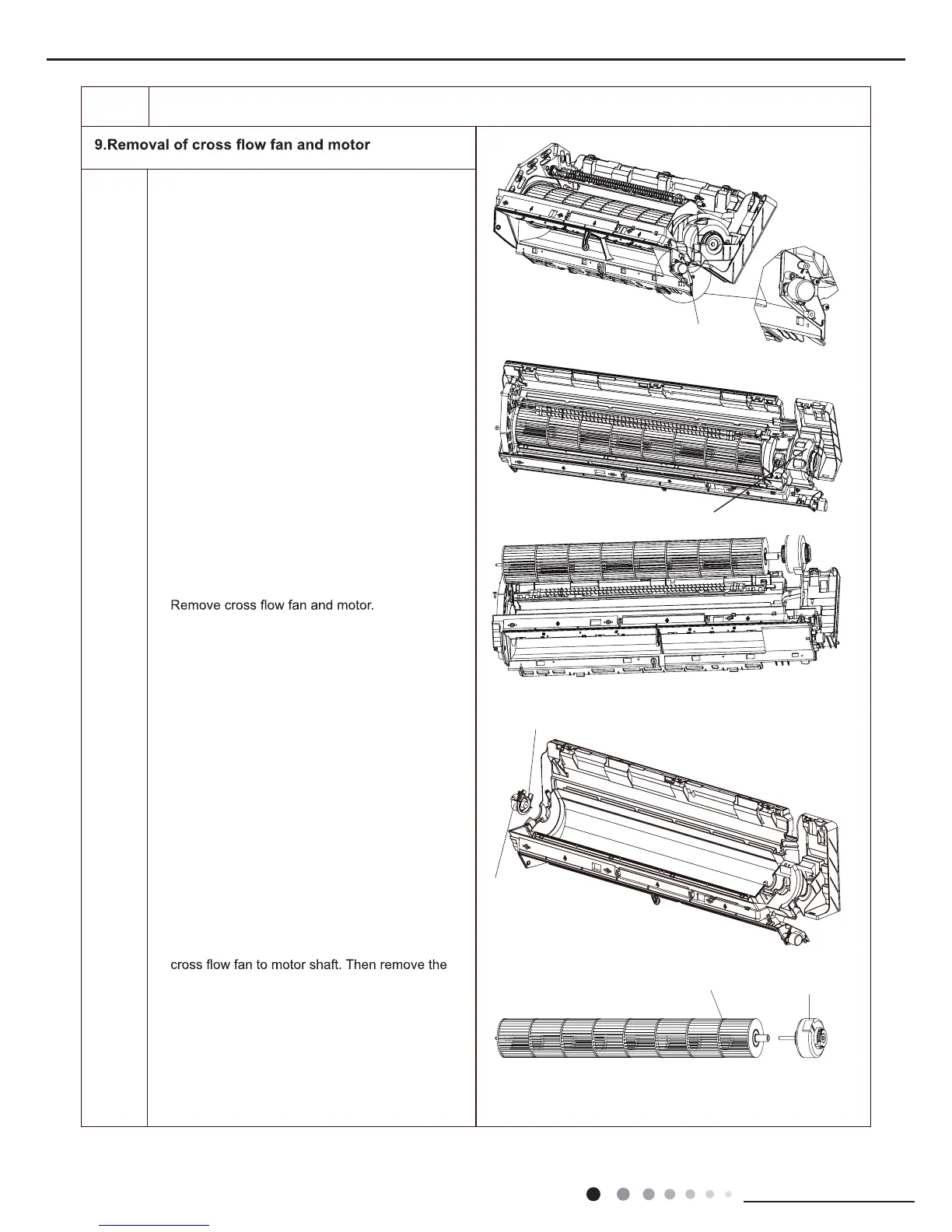

Removal of connection screws connecting
motor.
Remove screws of step motor and then
remove the motor.
Remove 4 connection screws of motor clamp
and rear case. Then remove motor clamp.
Removal of ring of bearing sub-assy.
b
d
a
e
c
Step Motor
Motor Press Plat
Ring of Bearing
Cross Flow Fan
Fan Motor
O-Gasket sub-assy of Bearing
To Next Page
