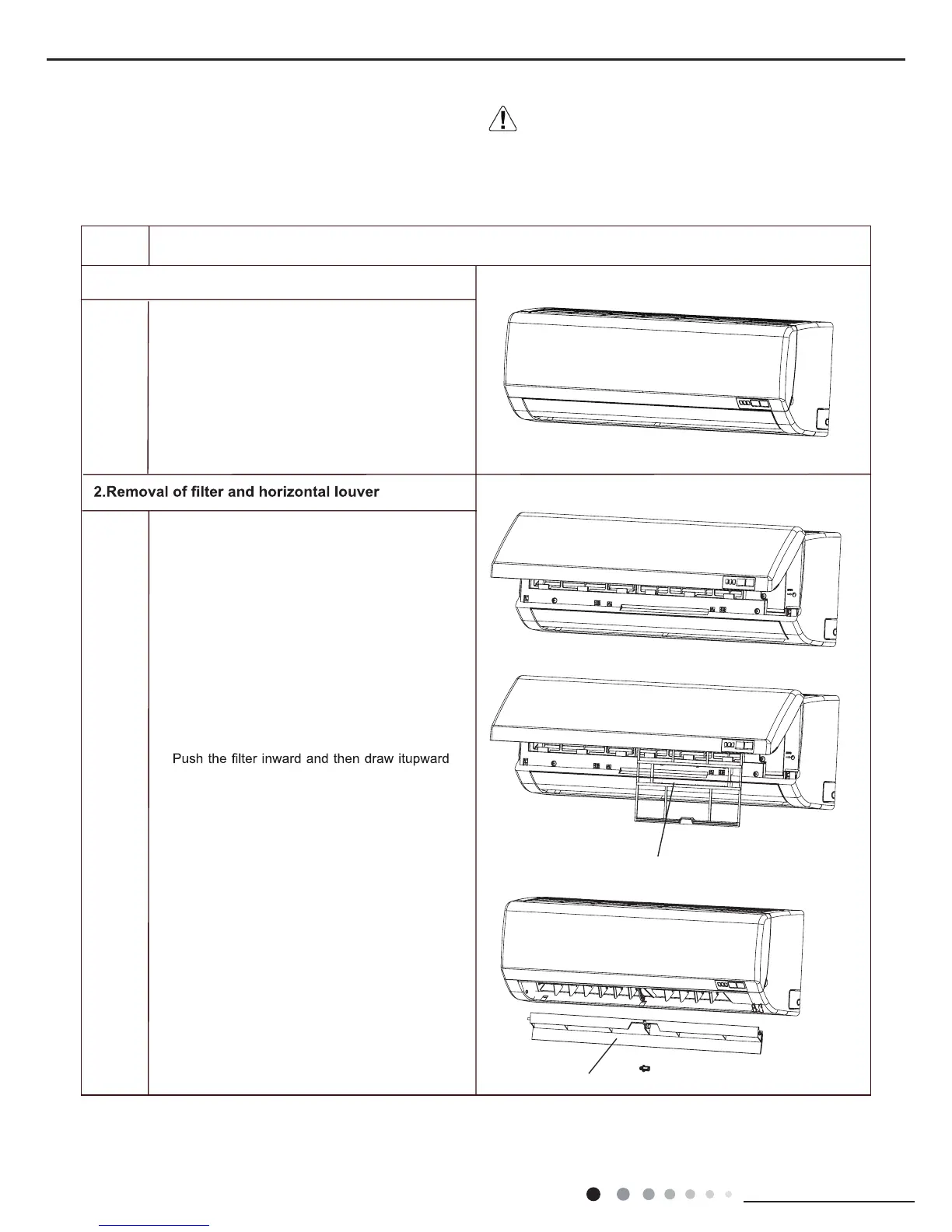

11. Removal Procedure
11.1 Removal Procedure of Indoor Unit
Caution: discharge the refrigerant
completely before removal.
Steps Procedure
1.Before disassembly
Open the front panel .
to remove it.
Remove axial sleeve of horizontal louver and
bend the louver slightly. Then remove the
louver.
b
c
a
Filter
Horizontal louver
Note:Take A1 plane for example.
To Next Page
