Gree JKFD5DQS/Na-E - Page 35

GREE Air-ccoled Closed Control Unit Service Manual
32
JKFD40/Na-M(O)

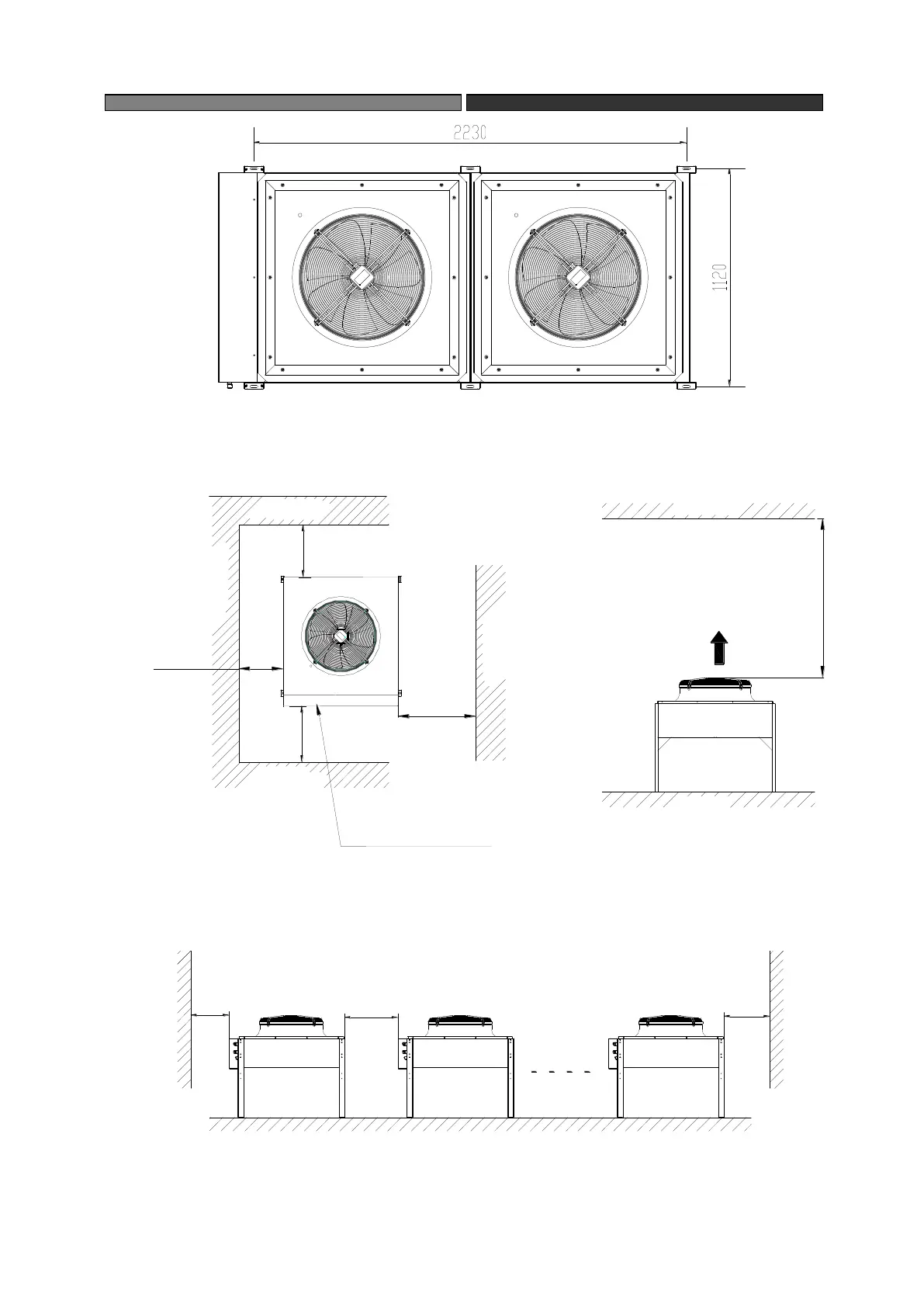

◆ Installation of Single Unit
> 1000
Wall Face
Wall Face
Wall Face
> 1000
> 1000
> 1000
> 1000
Wall Face
Obstacle
Air Outlet
Ground
Electric Box and The Exit of
Tube are On This Side
◆ Parallel Installation of Multi-units
> 1000
> 2000
> 1000
Ground
Wall Face
Wall Face
