GREE Air-ccoled Closed Control Unit Service Manual
28

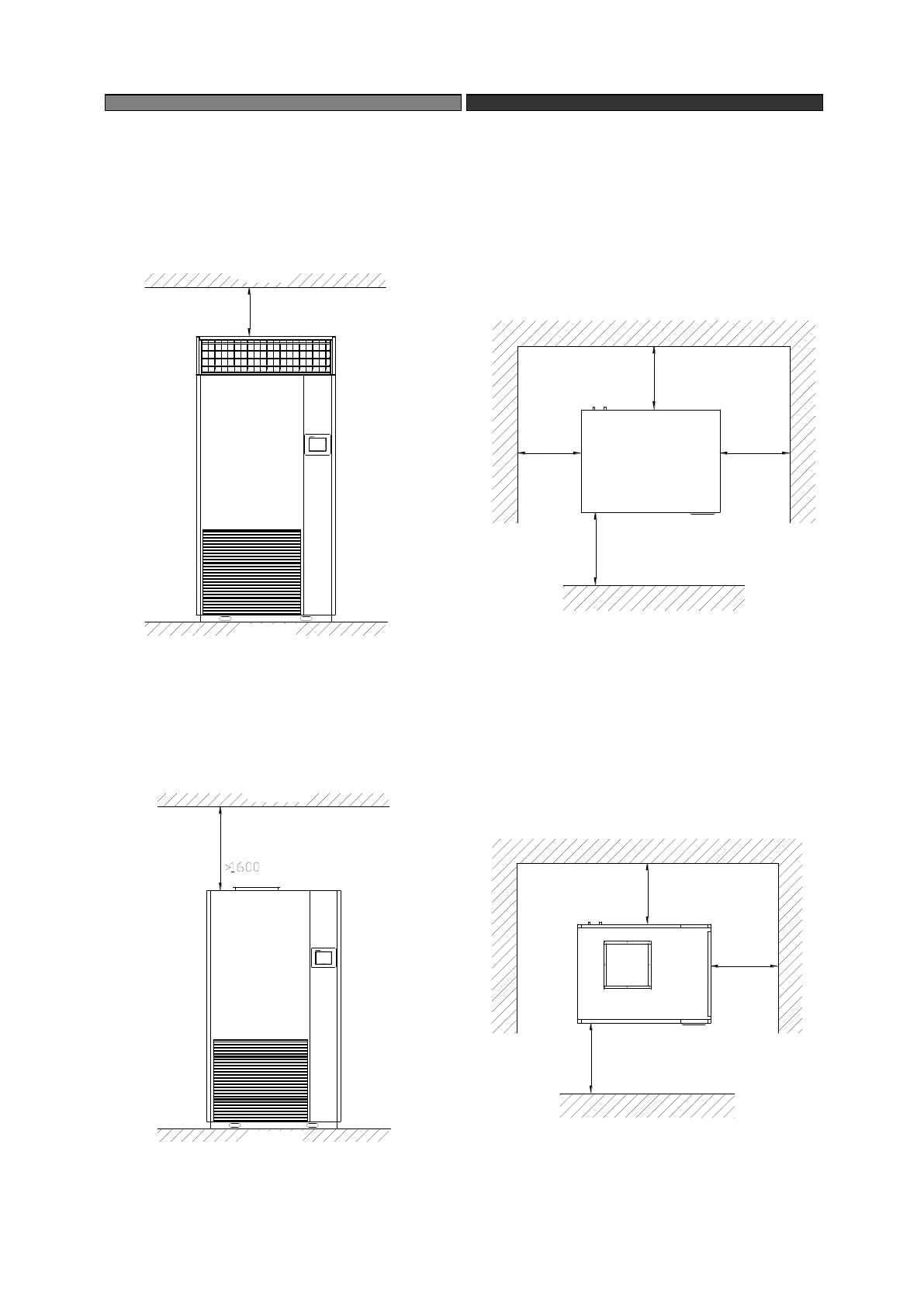

6.3 Installation Dimension and Space
6.3.1 The Installation of Indoor Unit
◆Direct Air Supply (with cowl)
> 600
> 800
> 1000
> 800
Ceiling
Ground
Wall Face Wall Face
Wall Face
Wall Face
Facade
No Special Requirement
On Distance
◆ Front Air Intake and Top Air Discharge （ connecting with air duct ）
> 600
> 800
> 1000
Ceiling
The Recommended Length of
Air Duct Used in Engineering Project
mm
Ground
Wall Face
Wall Face
Wall Face Wall Face
Facade
