Gree JKFD5DQS/Na-E - Page 32

GREE Air-ccoled Closed Control Unit Service Manual
29

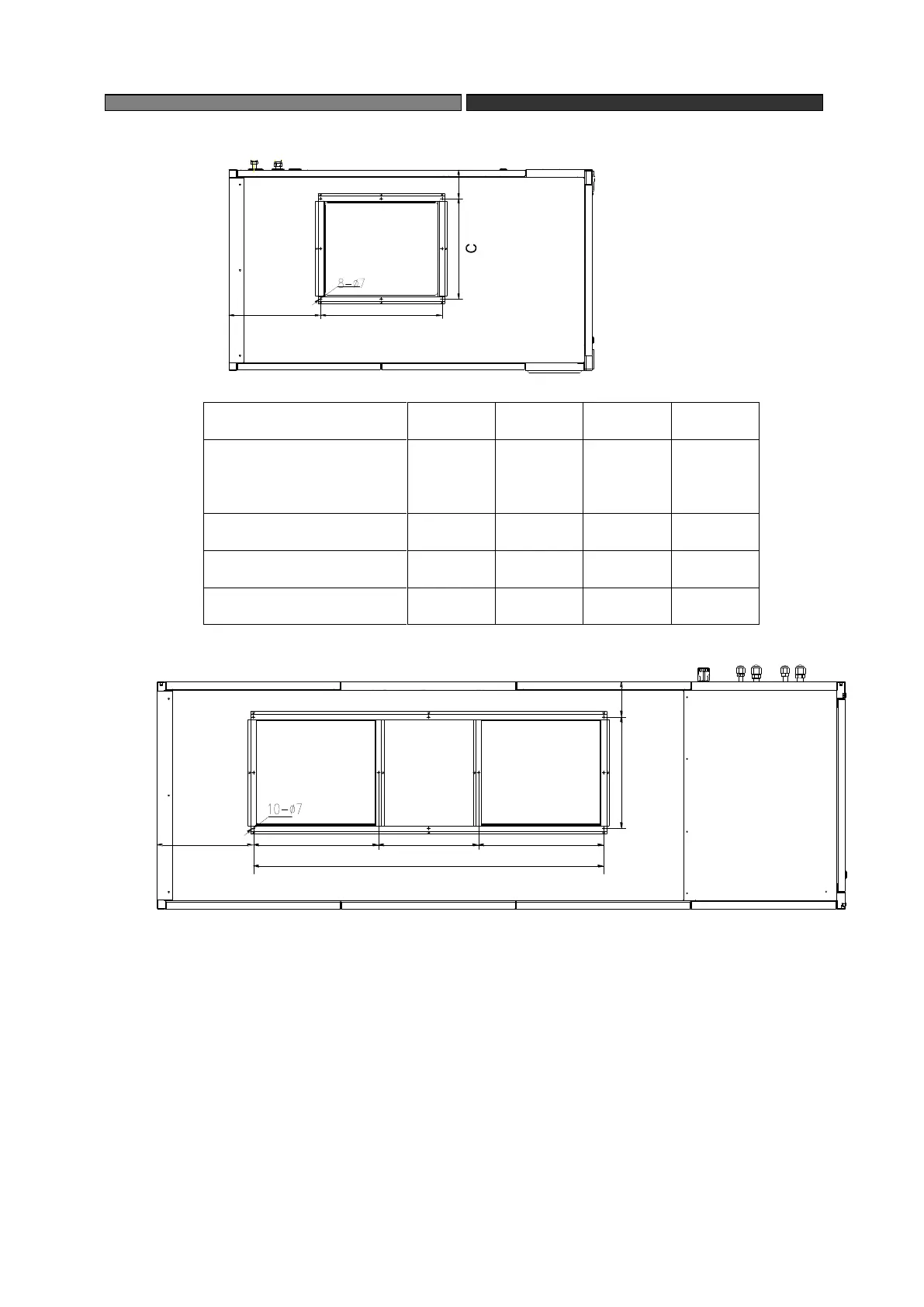

the Flange Size of Air Outlet on Top of the unit
361451 451
1263
347
125398
正面
JKFD40QS2/Na-M(I)、JKFD40QS/Na-M(I)
Model
A
B
C
D
JKFD5DQS/Na-E (I)、
JKFD7DQS/Na-E(I)、
JKFD7QS/Na-M (I)
241
317
286
286
JKFD13QS/Na-M (I)
255
368
368
147
JKFD19QS/Na-M (I)
348
461
405
115
JKFD25QS2/Na-M (I)
384
459
403
117
B
A
D
正面
