Gree JKFD5QSR/Na-E - Exploded View and Parts List

GREE Air-ccoled Closed Control Unit Service Manual
120
6. Exploded View and Parts List
（1）Indoor Unit JKFD5QSR/Na-E(I)、JKFD5CR/Na-E(I)
◆

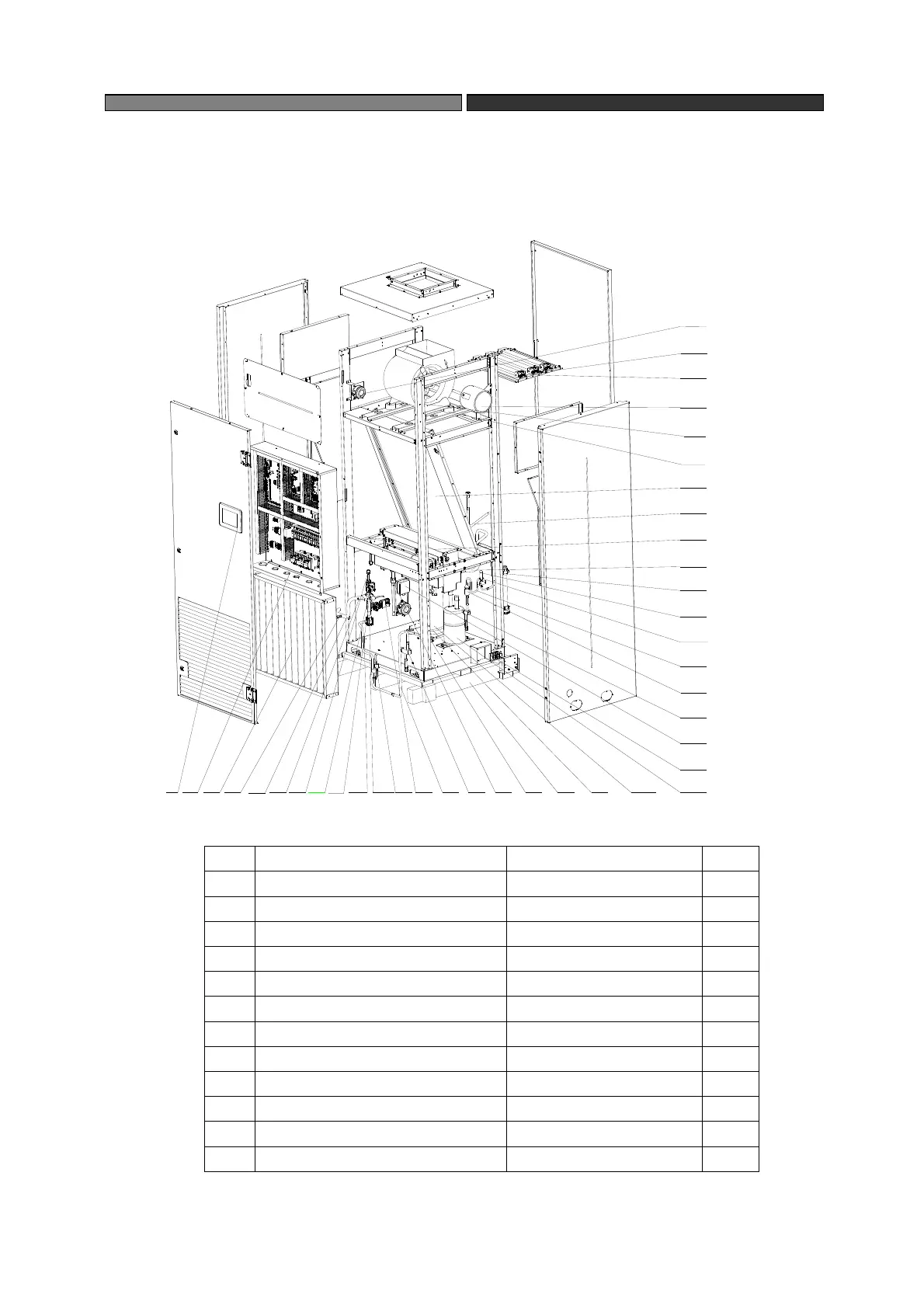

Exploded view of JKFD5QSR/Na-E(I)（applicable to JKFD5CR/Na-E(I)）
45
6
7
8
9
10
11
12
1
2
3
13
14
15
17
18
19
20
21
22
23
24
26
27
28
33
32
31
30
29
25
37
36
35
34
39
38
16
◆ Parts’ list for JKFD5QSR/Na-E(I)
No. Part Name Material Code Q’ty
1
Display Board 300001000009
1
2
Electric Cabinet Assy 100003000028
1
3
Primary filter 710024000004
1
4
Nozzle for Adding Freon 06120016
1
5
Inhalation Tube Sub-assy 030010000171
1
6
Pressure Protect Switch 4602001575
1
7
Discharge pipe Sub-Assy 030022000029
1
8
Electromagnetic water valve 43042800025
1
9
Magnet Coil (electromagnetic valve) 43042800026
1
10
Temperature Sensor 39008000096G
1
11
Water inlet pipe sub-assy 1 030059000033
1
12
Pressure Protect Switch 4602001561
1
