Gree JKFD7CR/Na-M

GREE Air-ccoled Closed Control Unit Service Manual
122
45
6
7
8
9
10
11
12
1
2
3
1314
15
38
17
18
19
20
21
22
23
24
26
27
28
33
32
31
30
29
25
36
35
34
16
37

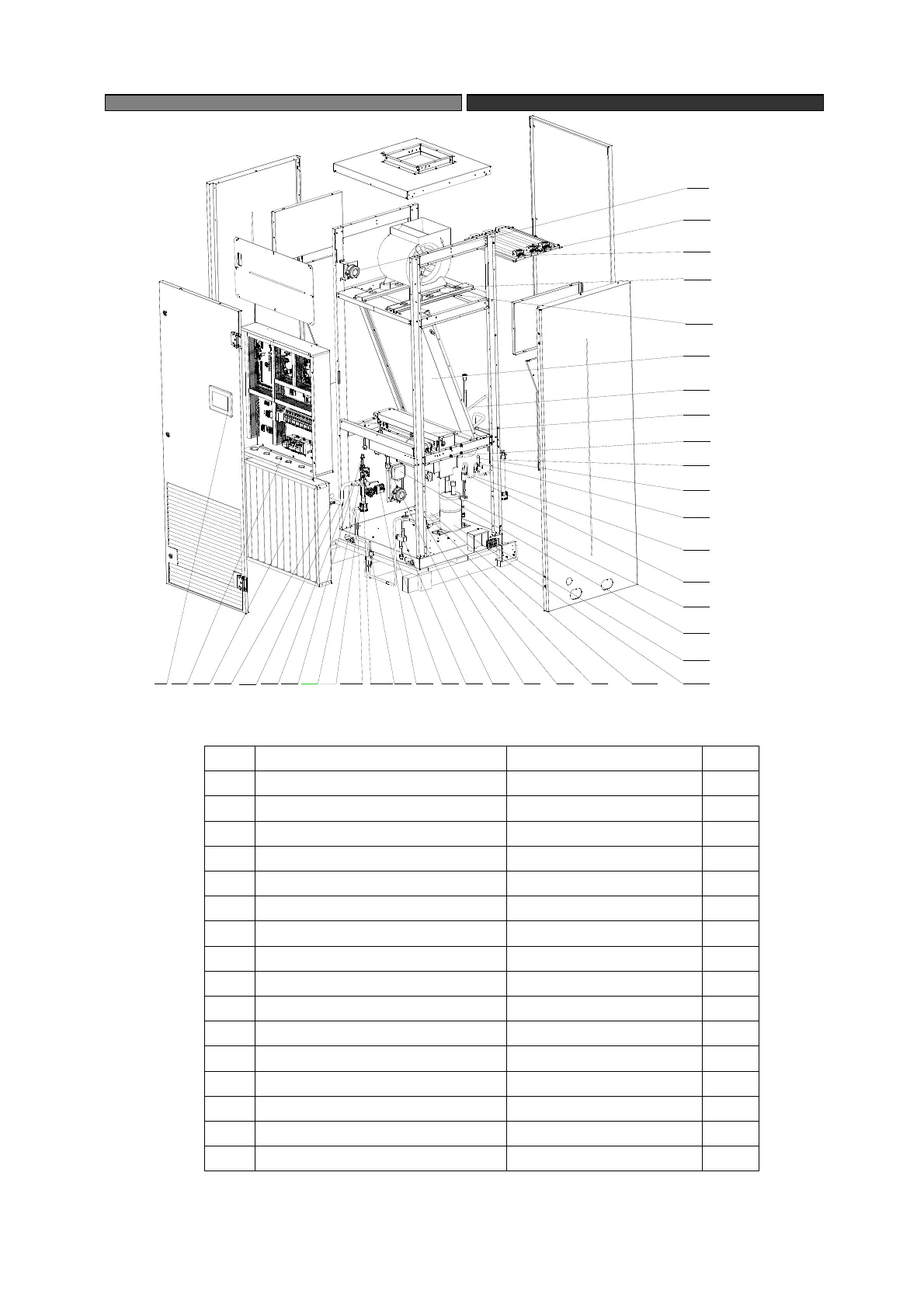

◆ Parts list of modle JKFD7QSR/Na-M(I)
No. Part Name Material Code Q’ty
1
Display Board 300001000009
1
2
Electric Cabinet Assy 100003000027
1
3
Primary filter 710024000004
1
4
Nozzle for Adding Freon 06120016
1
5
Inhalation Tube Sub-assy 030010000171
1
6
Pressure Protect Switch 4602001575
1
7
Discharge pipe Sub-Assy 030022000029
1
8
Electromagnetic water valve 43042800025
1
9
Magnet Coil (electromagnetic valve) 43042800026
1
10
Temperature Sensor 39008000096G
1
11
Water inlet pipe sub-assy 1 030059000033
1
12
Pressure Protect Switch 4602001561
1
13
Detecting Plate 30270005
1
14
Discharge Tube Sub-assy 030013000146
1
15
Square Valve 07138800
1
16
Drainage Pipe Sub-assy 1 030065000007
1
