GREE Air-ccoled Closed Control Unit Service Manual
136
18
Sensor (High Pressure) 322101032
1
19
Square Valve 07138800
1
20
Sealing Cap of Joint 06640104
1
21
Square Valve 07130366
1
22
Rear Side Plate 01314100014P
1
23
Chassis Sub-assy 01194100051P
1
24
Right Connection Board 01344100003P
1
25
Drainage Connecter 06123401
1
26
Drainage hole Cap 06813401
1
27
Temperature Sensor 390001000004
1
28
Sensor Support 26905202
1
（9）Outdoor Unit JKFD13/NaA-M(O)、JKFD19/NaA-M(O)
◆

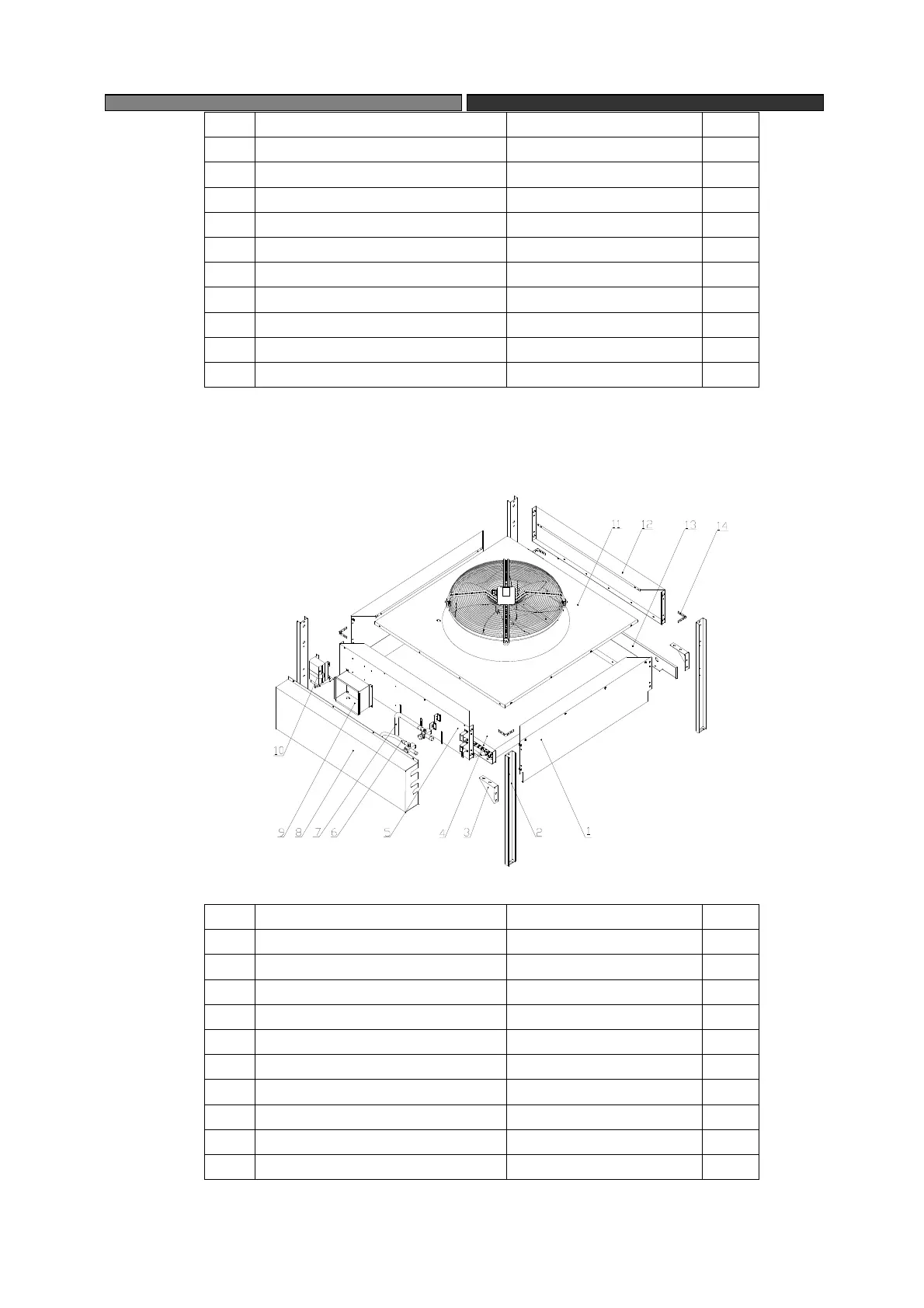

Exploded view of JKFD19/NaA-M(O)（applicable to JKFD13/NaA-M(O)）
◆ Parts' list of JKFD13/NaA-M(O)
No. Part Name Material Code Q’ty
1 Side plate sub-assy 01313735P 2
2 Support leg 01893728P 4
3 Support stand 01803767P 4
4 Condenser 01123718 1
5 Front side plate sub-assy 01313733P 1
6 Cut-off part 07333806 1
7 Cut-off part 07333807 1
8 Front cover plate 01263731P 1
9 Electric box JKFD13(O) 01393748 1
10 Speed controller of fan 30118025 1
