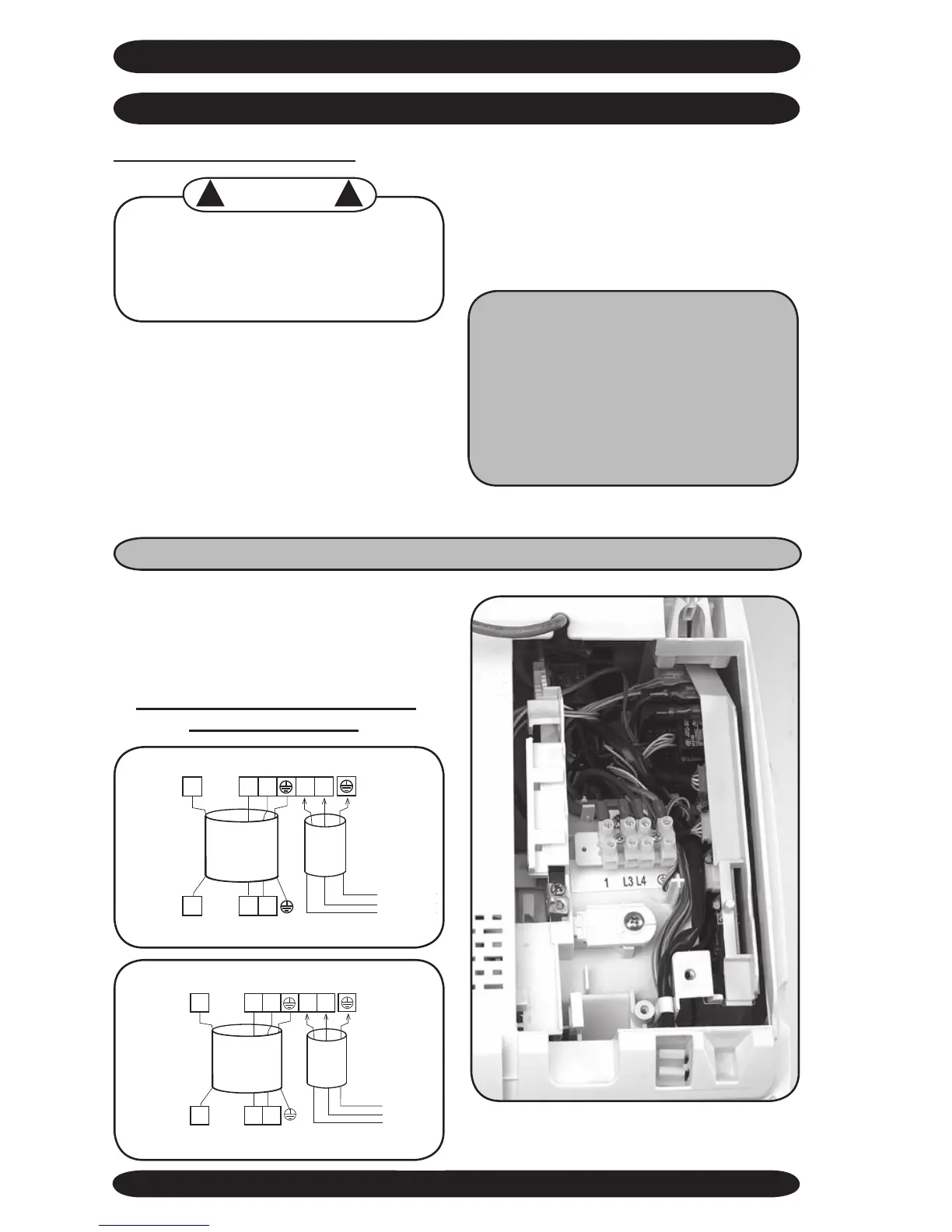

OUTDOOR UNIT INSTALLATION
ENVIROAIR HIGH WALL DUCTLESS SPLIT SYSTEMS
ALL CONTROLS WIRING BETWEEN IN-
DOOR AND OUTDOOR UNIT IS HIGH
VOLTAGE MINIMUM 14 AWG WIRE MUST
BE USED.
Electrical Wiring should be done by a
certified electrician in accordance with
all National ElectricalCode (NEC) and
local state/city building codes.
!
!
CAUTION
Electrical Wiring Installation
Remove terminal covers from indoor unit
and wire to the terminals, (small screw
-
driver required). Control wiring from the
outdoor unit must be a point to point i.e.
the terminal that the wire is attached to on
the outdoor unit must be the same termi
-
nal it is wired to in on the indoor unit.
THIS IS EXTREMELY IMPORTANT:
Switching the L3 - L4 or N1 - L1 wires
will allow the indoor unit to operate
but it will not provide controls signals
for the outdoor unit so that the com-
pressor will not operate. Ground con-
nection should be made to ground
screw marked in indoor unit.
Ground wires connected to the terminal
plate indoor and outdoor units must be
grounded.



Indoor
unit
Outdoor
unit
1
1
L3
L4 L1 L2
L3 L4
To power
source
(cooling only model)
Indoor wire connector
outdoor probe wire connector
for defrosting
(208/230V Models)
COOLING ONLY WIRING
Control wiring at outdoor unit (cooling only).
Indoor
unit
Outdoor
unit
1
1
L1
N1 L N
L1 N1
  

 
To power
source
(cooling only model)
(115V Models)
Connection of wires for outdoor
unit and indoor unit
