Gree LIVV09HP230V1A Series

Service Manual

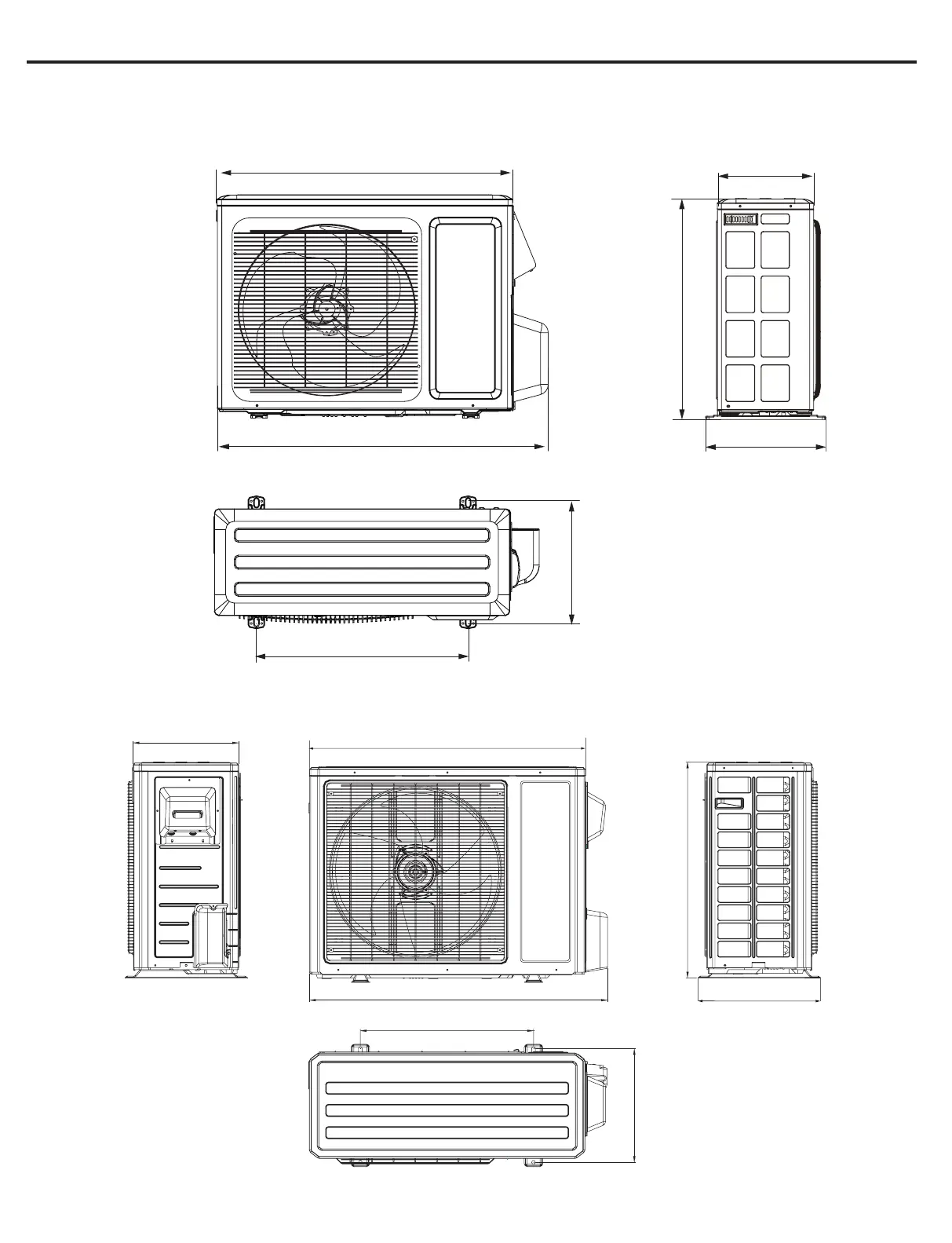

3.2 Outdoor Unit
Unit:inch
30 5/8
21 1/4
12 5/8
28
11 1/4
20
10 1/8
Unit: inch
LIVV12HP230V1AO LIVV09HP230V1AO
LIVV18HP230V1AO LIVV24HP230V1AO
33 1/4
12 1/4
25 5/8
14 11/16
35 3/4
13 1/2
23
11
