Gree NCHS1D User Manual

GMV6 HR Mode Exchange Box
5

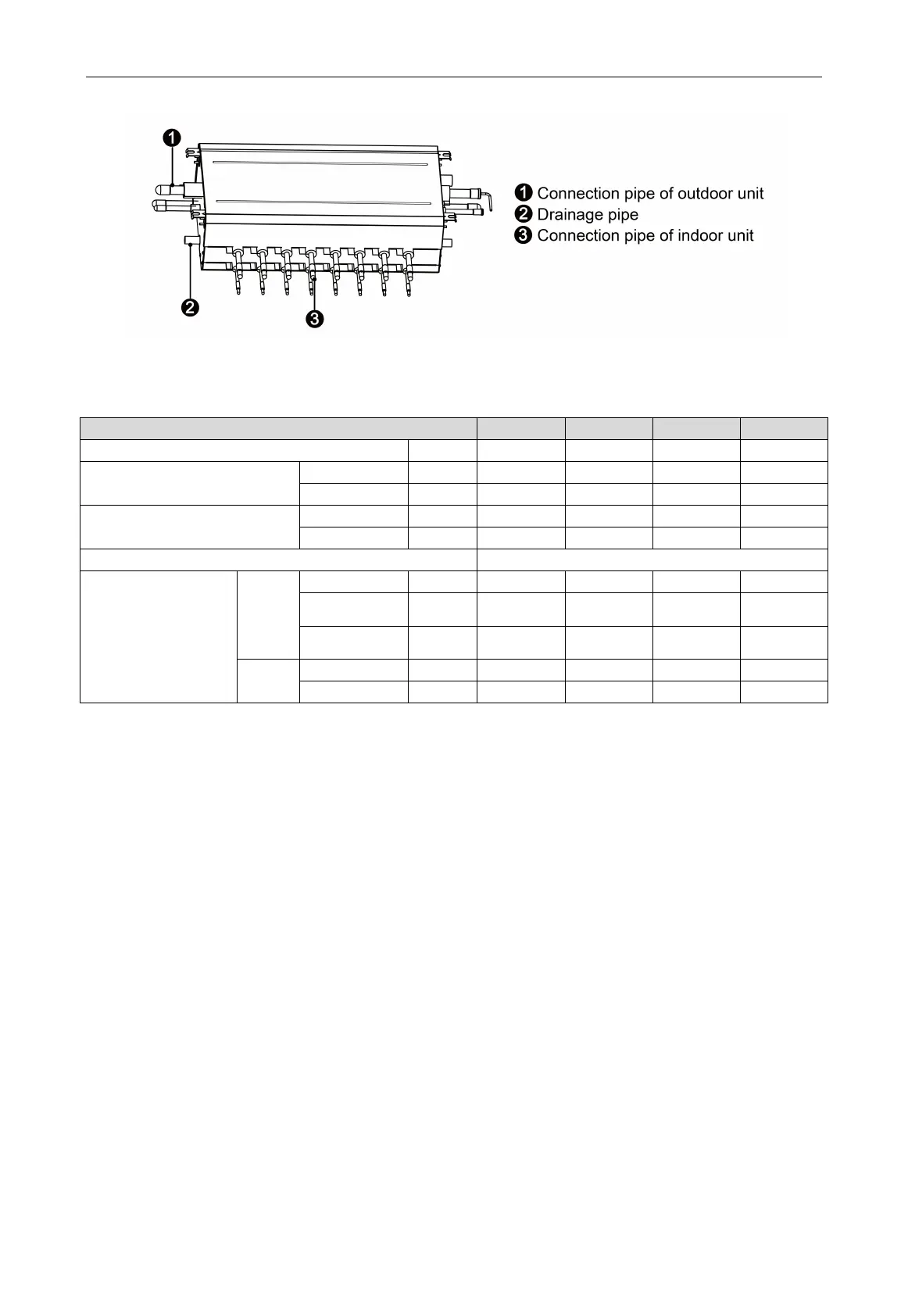

One-to-eight Mode Exchange Box:
Fig.2.1.4
2.2 Parameter Table
Model NCHS1D NCHS2D NCHS4D NCHS8D
Numbers of branches unit 1 2 4 8
Maximum numbers of
connectable IDUs
Per branch unit 8 8 8 8
Total unit 8 16 32 64
Maximum capacity of
connectable IDUs
Per branch kW 16 16 16 16
Total kW 16 28 45 85
Power supply 220-240V ~50/60Hz
Piping connections
ODU
Liquid mm Φ9.52 Φ9.52 Φ12.7 Φ15.9
High pressure
gas
mm Φ19.05 Φ19.05 Φ22.2 Φ22.2
Low pressure
gas
mm Φ22.2 Φ22.2 Φ28.6 Φ28.6
IDU
Liquid mm Φ6.35/9.52 Φ6.35/9.52 Φ6.35/9.52 Φ6.35/9.52
Gas mm Φ12.7/15.9 Φ12.7/15.9 Φ12.7/15.9 Φ12.7/15.9

Gree NCHS1D Specifications

General

Brand	Gree
Model	NCHS1D
Category	Heat Pump
Language	English
