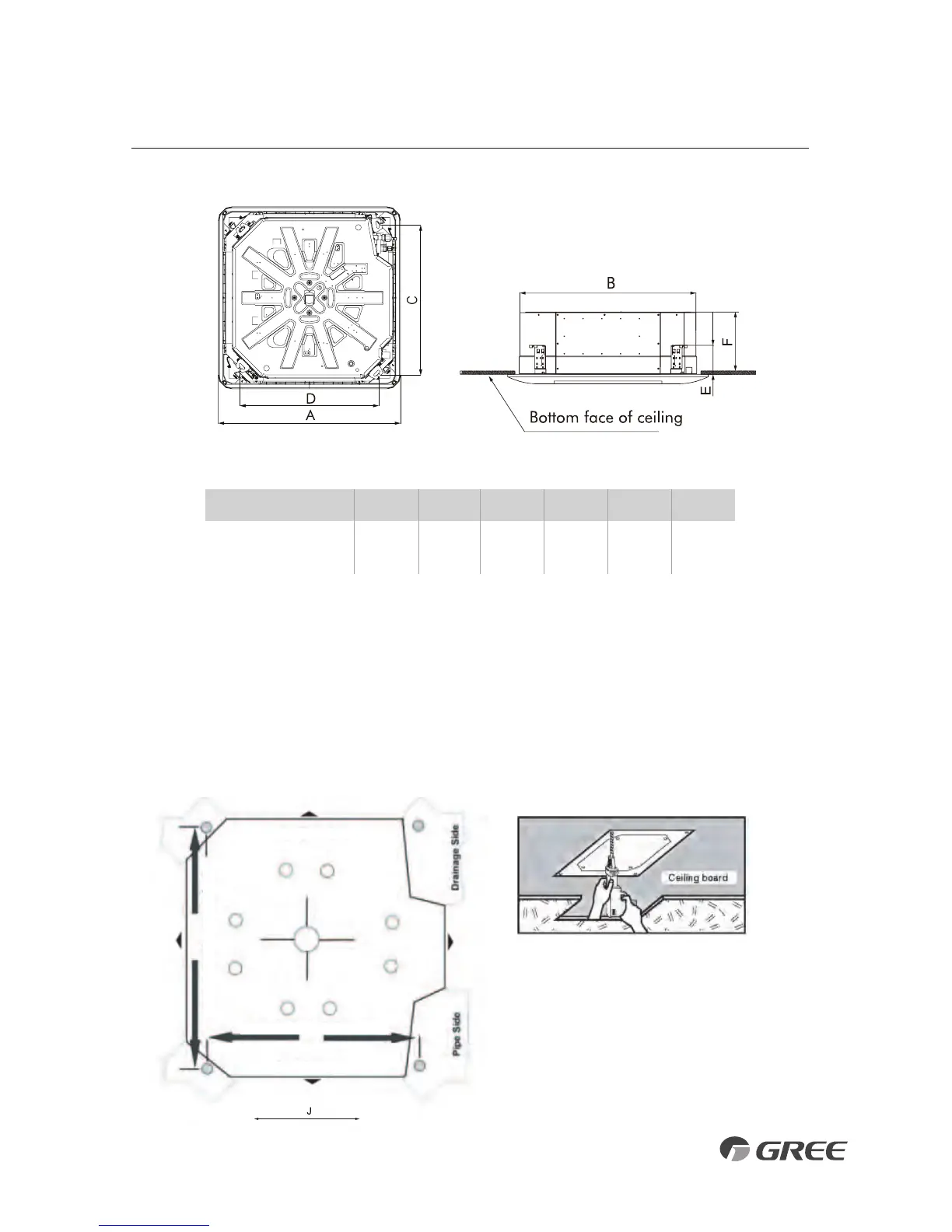

Model ABCDE F
UMAT48HP230V1AC
41 35-7/8 33-1/8 31 6-3/4 11-3/8
(1041) (911) (841) (787) (171) (289)
INDOOR UNIT DIMENSIONS in (mm)
INDOOR UNIT DIMENSIONS
Hanger Bolts Distance 22.5in (570mm)
Hanger Bolts Distance 23.75in (604mm)
Ceiling Center Point
Ceiling Center Point
Laying Out Indoor Location
Locate the factory supplied installation template included in carton.
Use the template to make an opening in the ceiling for the ceiling cassette main body.
Mark the position of the 4 hanger bolts, refrigerant lines and condensate drain pipes.
11
48K Indoor Unit Dimensions
