Gree UMatch UMAT18HP230V1AC - System Parts; Indoor Unit Components; Outdoor Unit Components

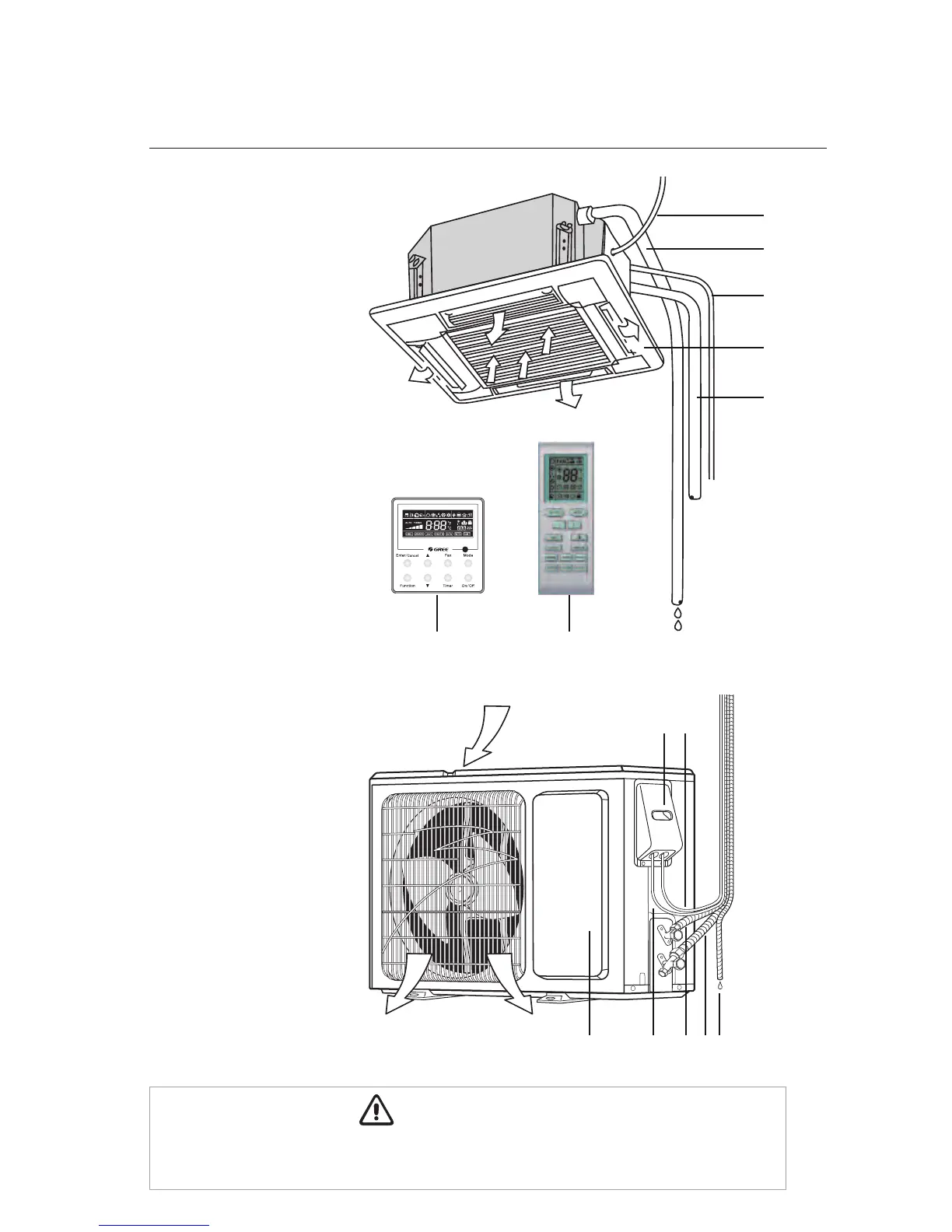

SYSTEM PARTS
Indoor unit
Part Name
1. Indoor Power Supply
2. Drain Pipe
3. Communication Cable
4. Decorative Discharge Air
Grille (sold separately)
5. Refrigeration Pipes
6. Wired Tether Controller
(sold separately)
7. Remote Controller
8. Service Cover
9. Communication Cable
10. Front Panel
11. Outdoor Power Supply
12. Liquid Pipe
13. Gas Pipe
14. Drain Hose
Outdoor Unit
Air outlet
Air inlet
1
2
5
4
3
67
6
Air outlet
Air inlet
14 12 1110
The refrigerant pipe, drain pipe and electrical wiring for this unit should be installed by a
qualified HVAC professional only.
CAUTION
98
13
