Fire Ready Hood

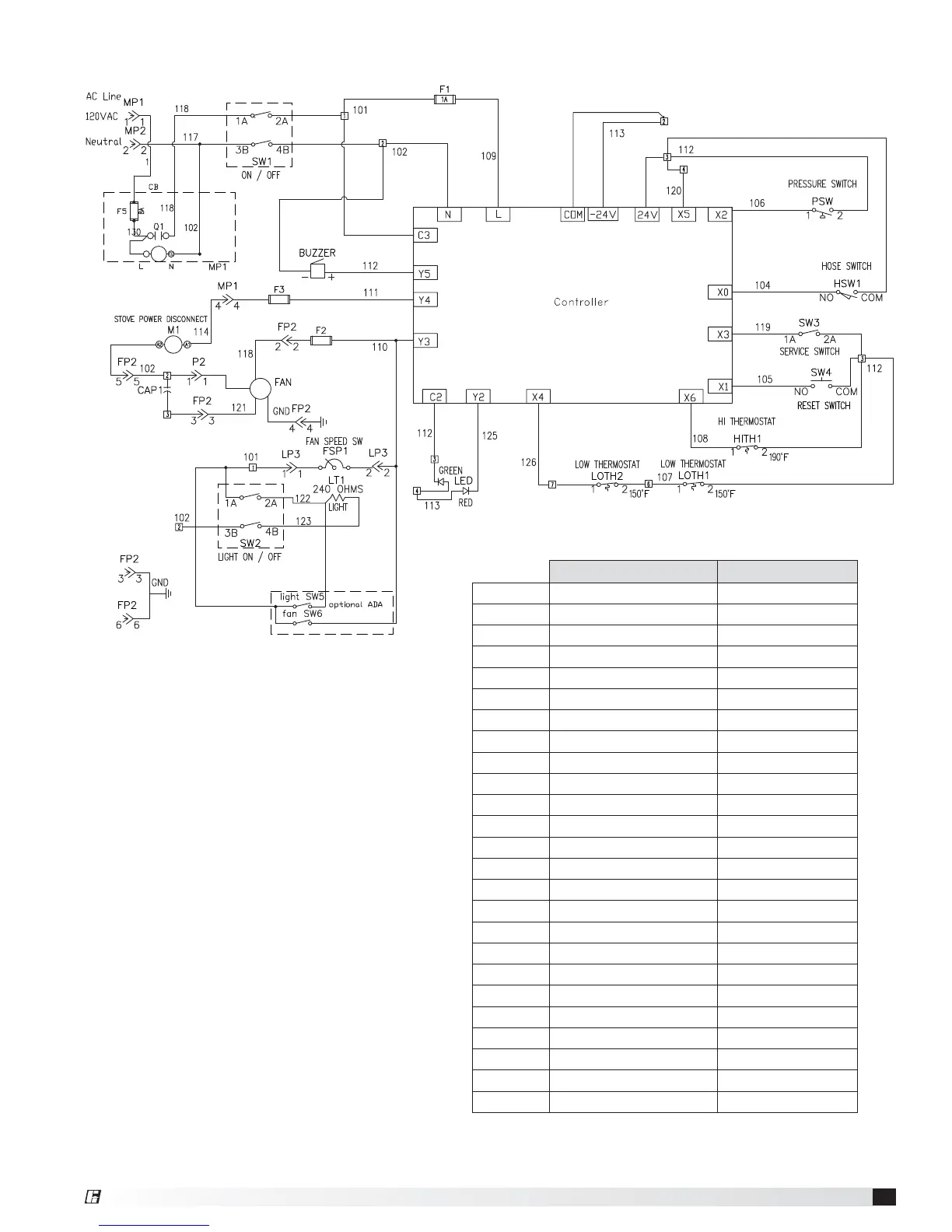

Wiring Diagram
Description Value
CB ClockBox 2 HR
F1 Controller Fuse 1 AMP Fast Blow
F2 Fan Fuse 2 AMP Slow Blow
F3 Dual Disconnect 1 AMP Slow Blow
F3 Disconnect Fuse 0.5 AMP Slow Blow
F4 Main Fuse 8 AMP Slow Blow
F5 ClockBox Fuse 8 AMP Slow Blow
MP1 Main Power Connector
FP2 Fan Connector
SW1 Main Power Switch
SW2 Light Switch
SW3 Service Switch
SW4 Reset Switch
SW5 Optional ADA Light
SW6 Optional ADA Fan
HSW1 Hose Switch
HITH1 High Temp Thermostat 190°F
LOTH1,2 Low Temp Thermostat 150°F
FSP1 Fan Speed Controller 4.0 FLA
FAN Inline or Recirc Fan
CAP1 For Recirc Fan 10 UF
M1 Stove Disconnect 40 FLA 50 A RES
LIGHT Hood Light 60 WATT
Controller Computer Driving Hood
BUZZER Alarm in Hood 90 DB
®
