8
Fire Ready Hood
1. Lift hood onto mounting bracket and seat the lower
tabs of the mounting bracket into slots in back of
hood.
2. While holding the hood up, hook safety cable to
chain link on mounting bracket and screw nut
to close the link. The hood is now in the service
position.
3. Connect male plug from top of hood into female plug
mounted in junction box.
5. Remove the safety key from the actuator arm by
rotating and lifting straight upwards. The system will
not actuate without completing steps 4 and 5.
6. Rotate hood to wall and thread the three thumb nuts
to the bolts in the mounting plate. Check page 17 for
location of thumb nuts.

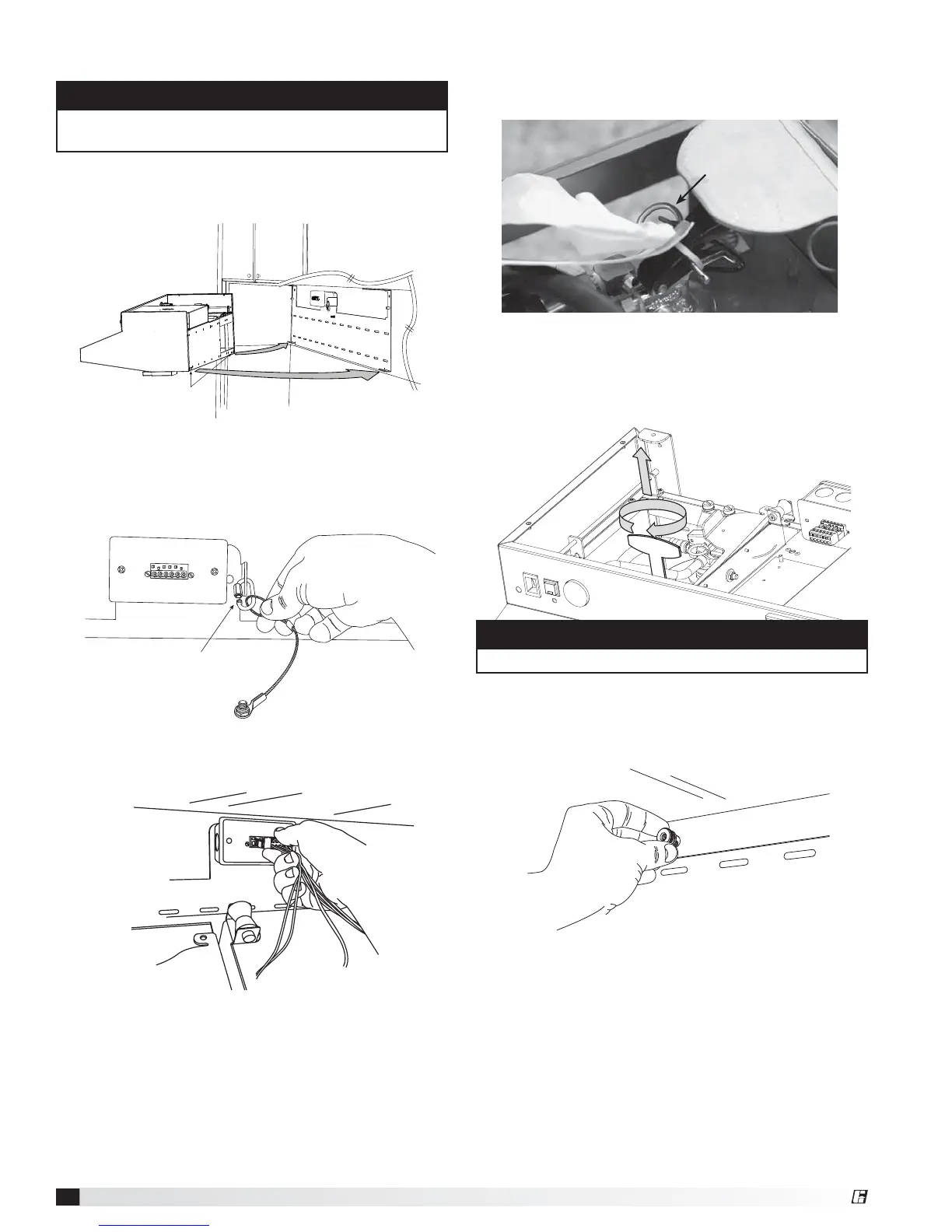

Installing Hood onto Mounting Bracket
4. Remove the safety pin - identified with the yellow
CAUTION flag from the trigger on top of the
extinguisher bottle.
Safety Pin
CAUTION
The system is now armed.
NOTE
Install manual pull station, if provided, before arming
the system.
Slots
Lower Tabs
Chain Link
®
To Next Page
