Ceiling Exhaust and Inline Fans 5
®

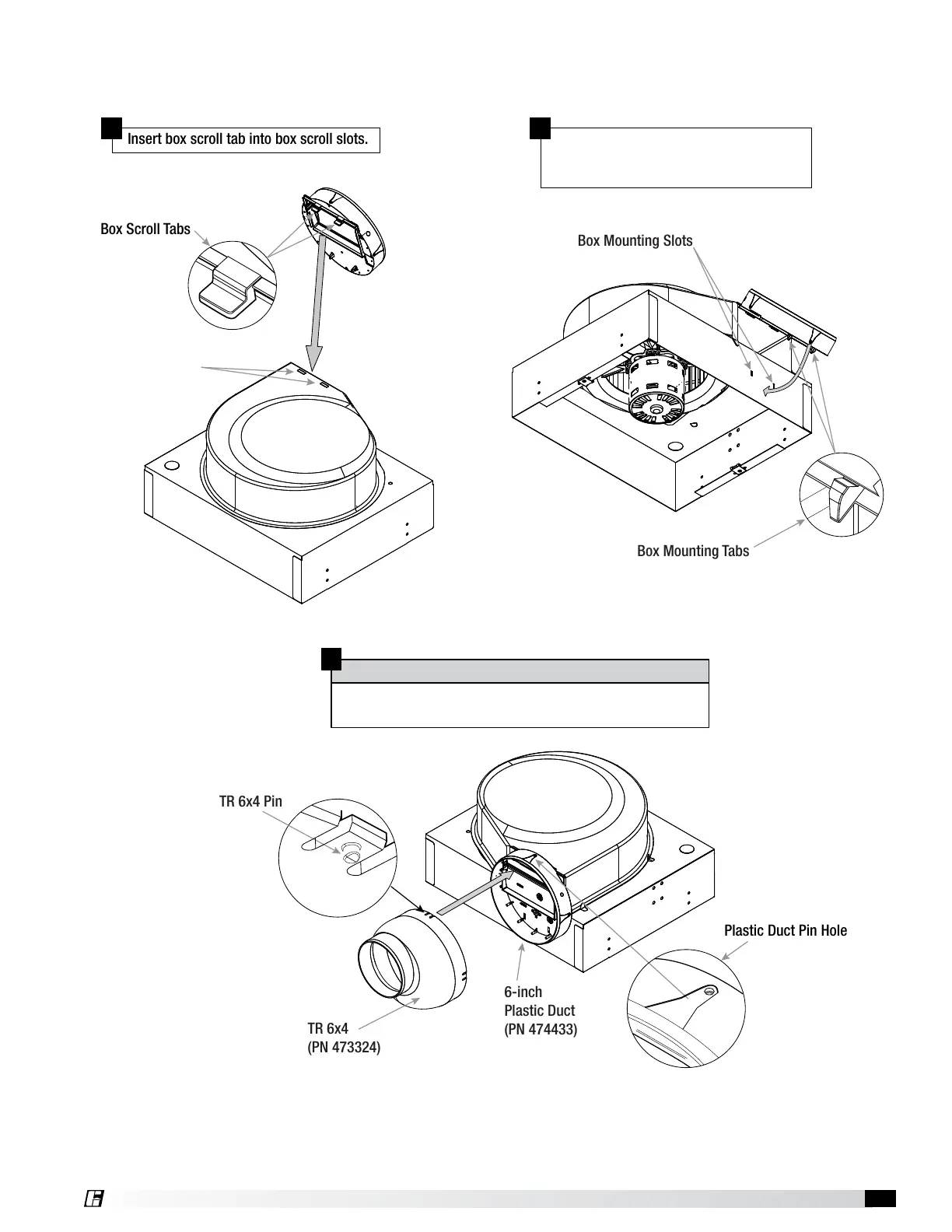

Discharge Installation for Ceiling and Inline Exhaust Models Sizes B50-200
Insert box scroll tab into box scroll slots.
Rotate plastic duct adapter (PN 474433)
until the two mounting tabs fully engage
into the two box mounting slots.
1 2
OPTIONAL
Align the pins on the TR 6x4 adaptor to the duct pin hole on
the 6-inch duct. Push until the adaptor snaps into place.
3
Box Mounting Tabs
Box Mounting Slots
TR 6x4 Pin
TR 6x4
(PN 473324)
6-inch
Plastic Duct
(PN 474433)
Plastic Duct Pin Hole
Updated drawing for #1 supplied to me
by Jesse Welsh on April 5, 2011.
Box Scroll Tabs
Box Scroll Slots

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Greenheck SP Series and is the answer not in the manual?

Greenheck SP Series Specifications

General IconGeneral
Wheel TypeBackward inclined
Housing MaterialGalvanized steel
MountingInline
Drive TypeDirect drive
ConstructionHeavy-duty
