Greenlee / A Textron Company 10 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
763 and 764M4 Ratchet Cable Cutter
Note: Use Loctite
®
262 Threadlocker on all screws
and tighten all 5/16" diameter screws to 190/170 in-lb.
Use Loctite 416 Super Bonder
®
(cyanoacrylate) to attach
release pin bumpers (10). Lubricate moving parts with
Molykote
®
grease (see Figure 1).

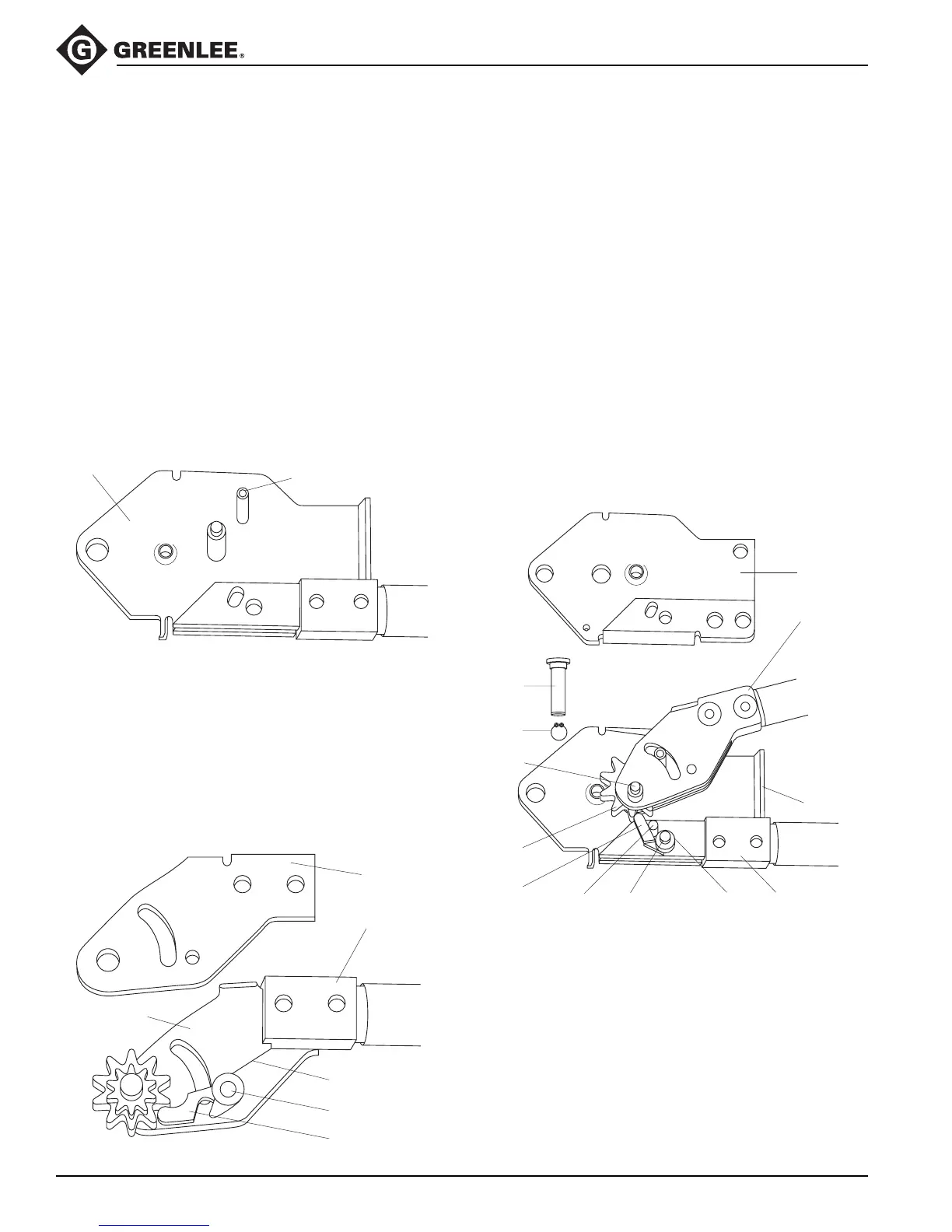

Assembly (cont’d)
1.
Assemble handle assembly (39) to bottom of housing
plate (13) using two screws (11).
2. Install stop pin (20). Place a spare 3/8" x 1.500"
screw through the master gear hole in bottom
housing plate (13) and place assembly on bench
with screws up (see Figure 2).
3. Lubricate pawl shaft (19) and assemble pawl shaft,
pawl (15) with pin (33) projecting from pawl surface,
spring (12), bottom handle plate (14) and top handle
plate (22) to handle assembly using two screws (11).
The long leg of the spring goes against the bottom
handle adapter (28) and the short leg goes under the
pawl (see Figure 3).
4. Insert master gear (16) between top and bottom
handle plates against drive pawl (15) and assemble
over spare screw in bottom housing plate (see
Figure 4).
5. Place holding pawl (15) with release pin (27) and
spring (17) over hole in bottom housing plate and
insert lubricated pawl shaft (19). The pawl will
engage the master gear. The long leg of the spring
goes against the handle adapter (28) where it
touches the bottom housing plate and the short leg
goes under the pawl (see Figure 4).
6. Thread housing cover (35) between handle plates
above the master gear—between spring (17) and
handle adapter (28) (see Figure 4).
Maintenance (cont’d)
14
22
28
19
15
12
Figure 3
13
20
Figure 2
26
9
26
16
15
27 19 17 28
13
28
23
Figure 4
