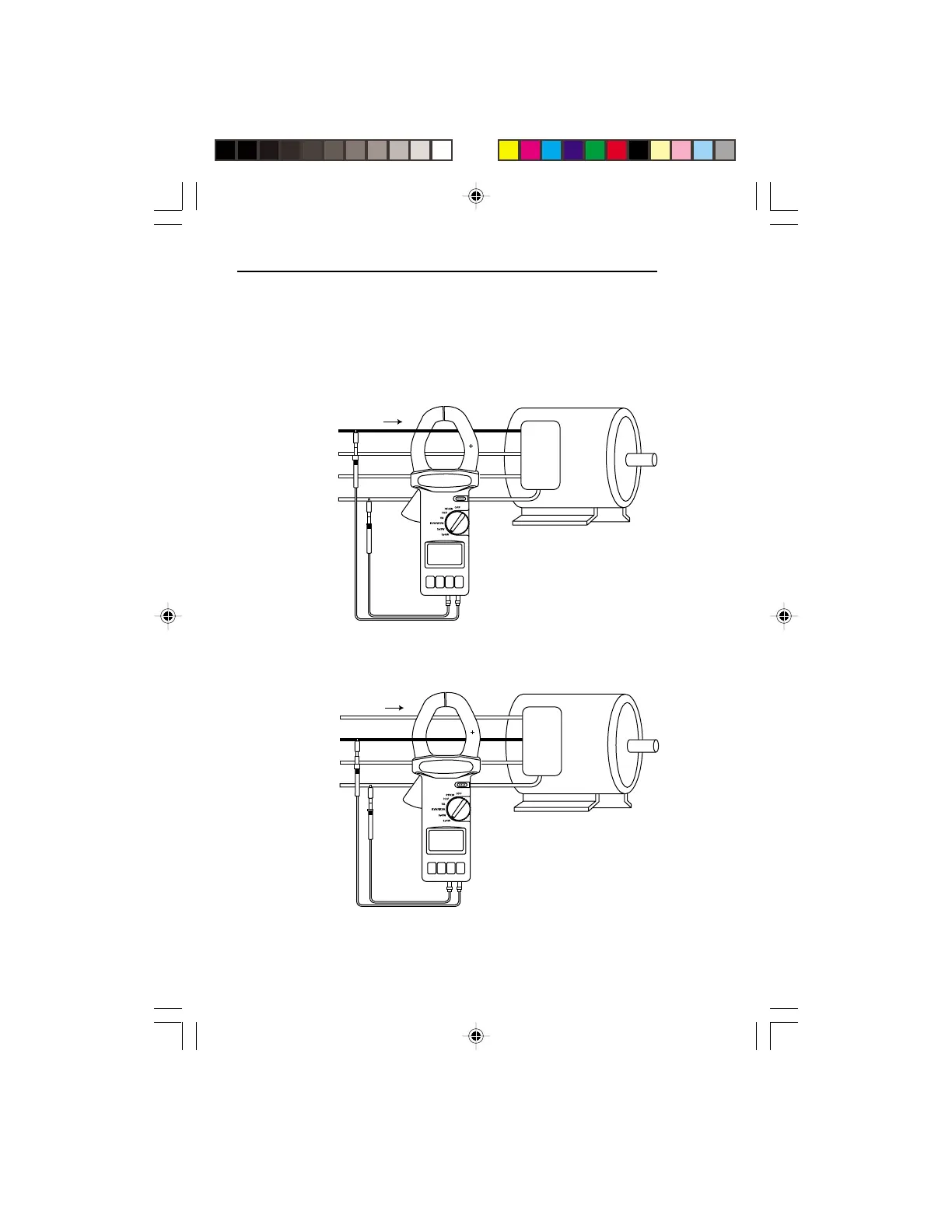

Measurements on Three-Phase Circuits (cont’d)
Three-Phase Four-Wire Measurements: True Power, Power Factor,
Apparent Power and Reactive Power Measurement
