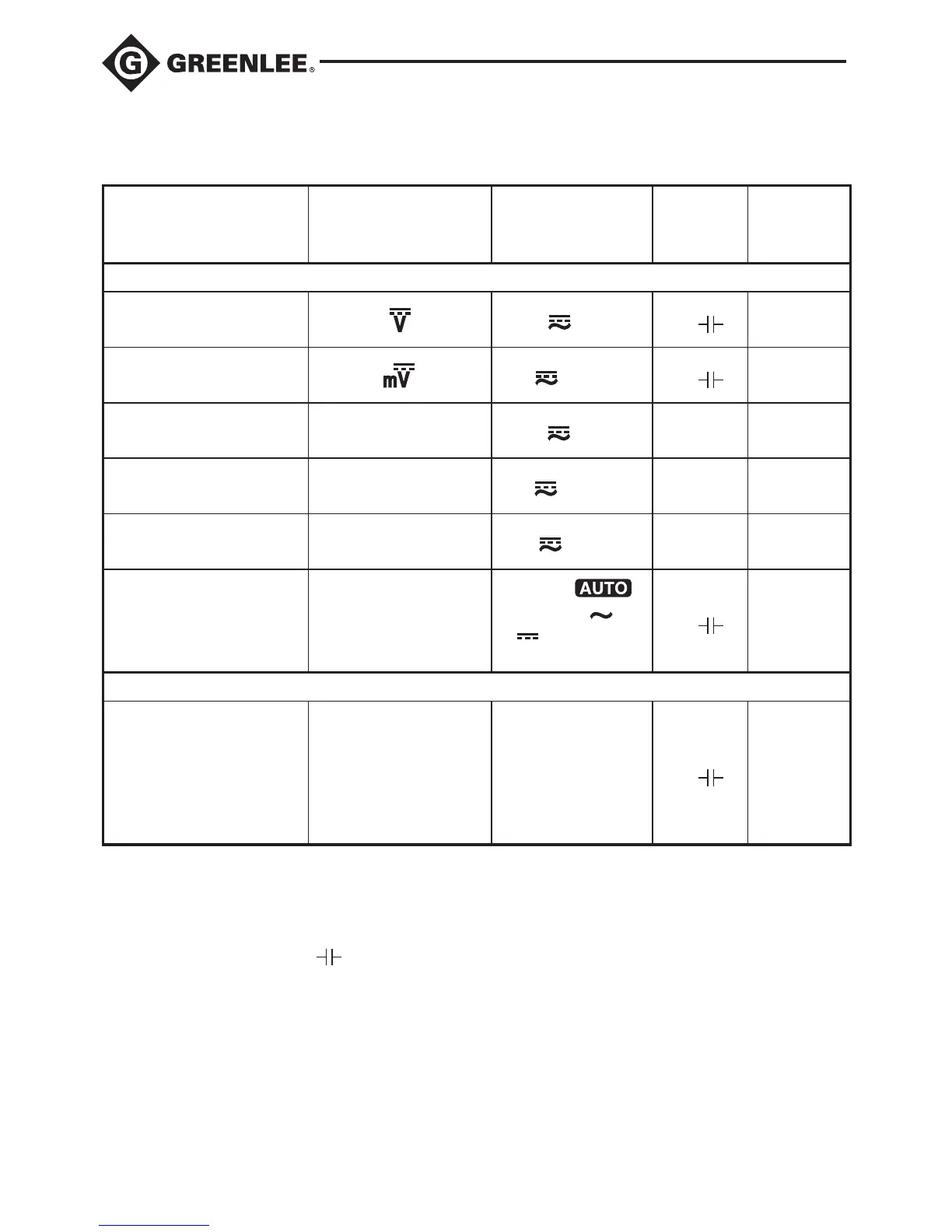

Greenlee DM-810A - Settings Table: AC+DC True RMS and AutoCheck

16
Settings Table (cont’d)
To measure this
characteristic …
Set the selector to
this symbol …
Press SELECT until
these icons appear
on the display …
Connect
the red
lead to …
Connect the
black lead
to …
DM-830A and DML-430A Only
Voltage—AC + DC
True RMS (1000 V max)
V
~V
ΩV
COM
Voltage—AC + DC
True RMS (600 mV max)
mV
~mV
ΩV
COM
Current—AC + DC
True RMS (10 A max)
A
A
~A
A COM
Current—AC + DC
True RMS (600 mA max)
mA
mA
~mA
mAµA COM
Current—AC + DC
True RMS (6000 µA max)
µA
µA
~µA
mAµA COM
†Auto select AC volts,
DC volts, resistance, and
continuity (low impedance
measurement)
AutoCheck
LoZ and
(LoZ with V,
V or Ω when
using Feature Lock)
ΩV
COM
DM-830A Only
dBm (0 dB = 1 mW in
reference impedance)
dBm
Reference
impedance and dBm
for 1 s, then dBm
Hz
(press RANGE to
change reference
impedance)
ΩV
COM
* Logic level frequency has a fixed sensitivity and is for digital signals. Refer to “Accuracy”.
** Discharge capacitor before measurement. Refer to “Typical Measurements” regarding
polarized capacitors.
† Refer to “Using the Features” for a detailed description of this mode.
Note 1: T1+ connects to ΩV and T1– connects to COM.
Note 2: T2+ connects to mAµA and T2– connects to A.
Operation (cont’d)
