Greenlee G3 - Head Assembly; Mobile Carriage

G3 Tugger
®
System
Greenlee / A Textron Company
50
1 52066729 Dolly bottom plate weldment ...............1
2 Wheel ....................................................2
3 Clip, hitch pin ........................................ 2
52066178 Wheel assembly kit (includes 2, 3)
1 52066728 Nose weldment ..................................... 1
2 Nose weldment, hinged ........................ 1
3 Clamp weldment assembly ..................1
4 Spring, compression,
.53 x .66 x 1.25 (H6245A) .....................1
5 Nut ........................................................1
6 Nut, acorn-light, 3/8-16 ........................1
7 Sleeve detent, black oxide....................1
8 Detent, black oxide ............................... 2
9 Grip detent, 0.187 ................................. 4
10 Pin, clevis, ø 1/2 x 4 ..............................2
11 Spring, compression,
.177 ID x .329 OD x 1.410/1.420 L .......1
Key Part No. Description Qty
Key Part No. Description Qty Key Part No. Description Qty

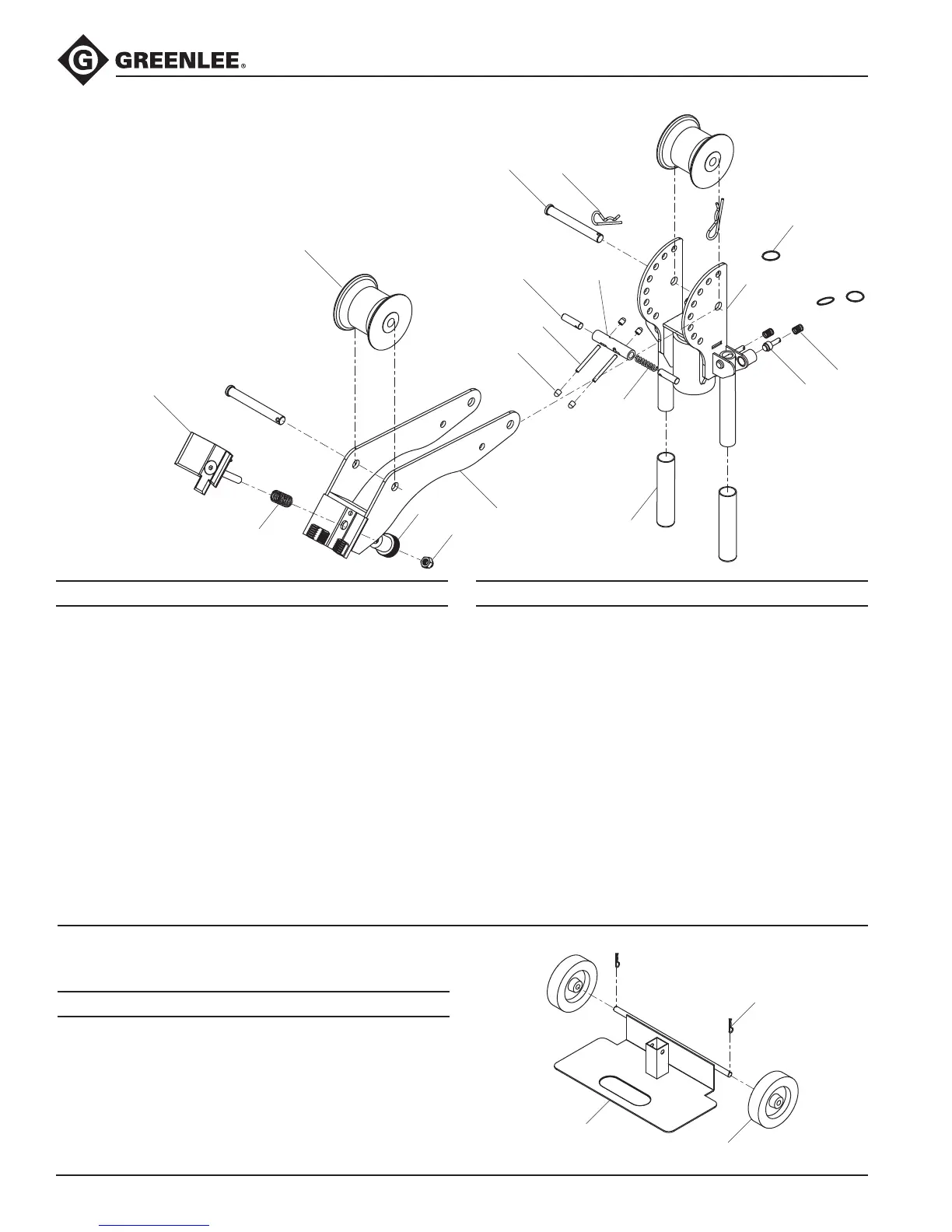

Mobile Carriage / Carro móvil
Head Assembly
3
2
1
13
1
3
4
5
6
9
8
15
14
10
16
17
18
2
11
12
7
12 Grip .......................................................2
13 52066741 Sheave ..................................................2
14 Rollpin, .187 x 2.00 ............................... 2
15 Clip, hitch pin, ø .12 x 2.56 ................... 2
16 Plunger ..................................................3
17 Spring, collar .........................................3
18 Ring, pull ............................................... 3
52066177 Nose handle assembly kit (includes 2, 12)
52066175 Clamp assembly kit (includes 3–6)
52063080 Lock pin assembly kit
(includes 7–9, 11, 14)
52066176 Spring-loaded pin assembly kit
(includes one each of 16–18)
