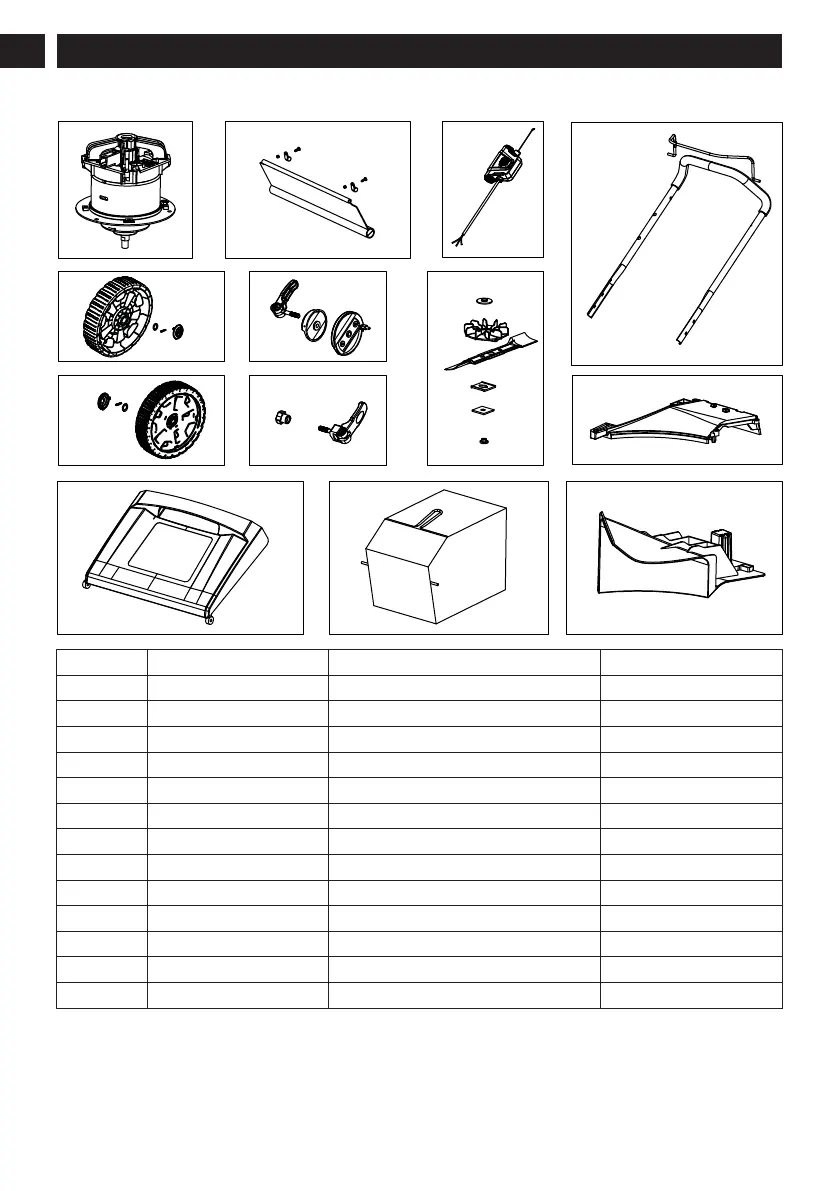

GreenWorks MO10B00 - Exploded View

13 EXPLODED VIEW
21
3
4
5
6
7
8
9
10
11
12
13
No. Part No. Description Qty.
1 R0204538-00 Motor 1
2 R0204537-00 Rear Flap Assembly 1
3 R0204539-00 Switch Box Assembly 1
4 R0204540-00 Upper Push Handle Assembly 1
5 R0100555-00 Front Wheel Assembly 2
6 R0204541-00 Rear Wheel Assembly 2
7 R0202445-00 Quick Clamping Assembly 1
8 R0102630-00 Quick Clamping Handle Assembly 2
9 R0204542-00 Blade/Bar Assembly 1
10 R0204543-00 Rear Cowl 1
11 R0204544-00 Rear Cover 1
12 R0202443-00 Catcher bag 1
13 R0300443-00 Rear Plug 1
