GreenWorks MO10B00 - Unfold and Adjust the Handle; Install the Grass Catcher; Install the Mulch Plug

1. Open the package.
2. Read the documentation in the box.
3. Remove all the unassembled parts from the box.
4. Remove the machine from the box.
5. Discard the box and package in compliance with
local regulations.

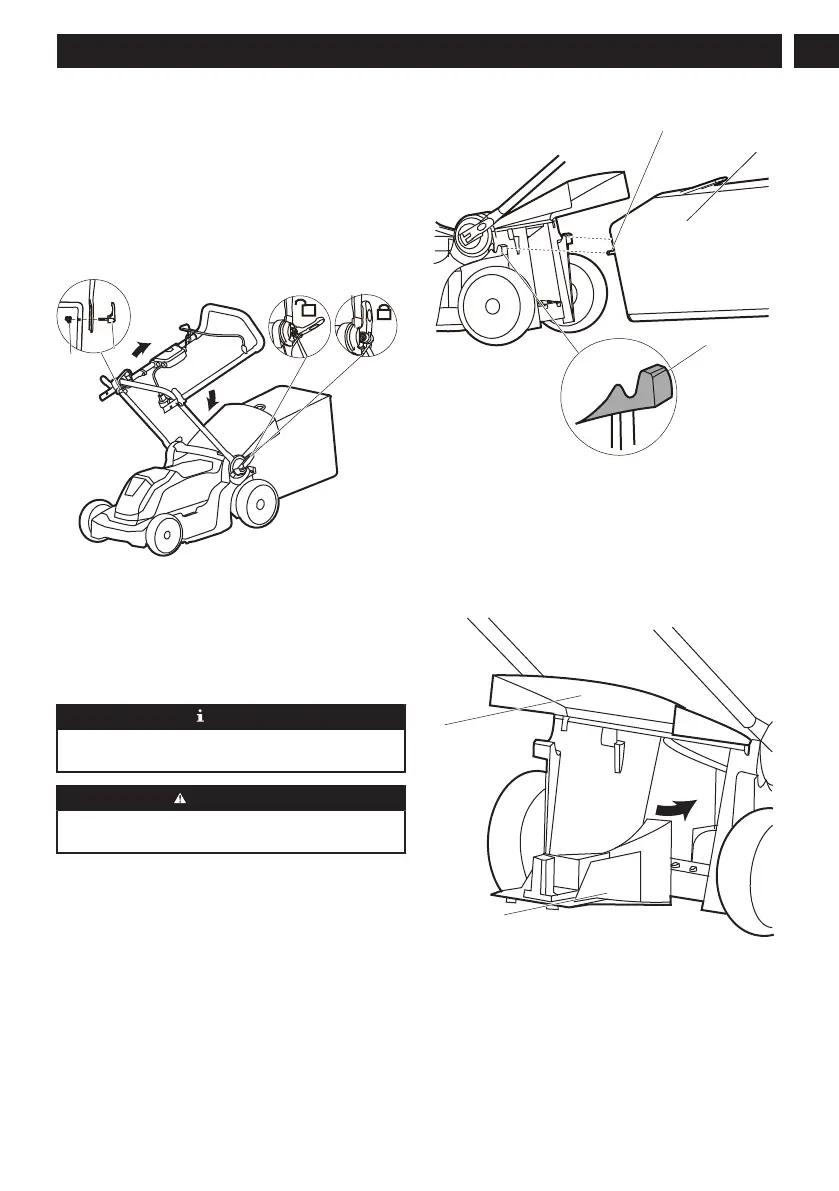

7.2 UNFOLD AND ADJUST THE
HANDLE
12
11
1. Pull up and back the upper handle to lift the handle
into operation position. Make sure that the handles
click into position correctly.
2. Tighten the lower handle with the quick-release
levers (10) on the two sides.
3. Tighten the upper handle with the cam locks (11)
and knobs (12) on the two sides.
NOTE
Make sure that the two handles are in the same
position.
WARNING
Do not make damage to the cables when you fold or
unfold the handle.
7.3 INSTALL THE GRASS CATCHER
14
8
13
1. Remove the mulch plug.
2. Open the rear discharge door and hold it.
3. Hold the the grass catcher (8) by its handle and
engage the hooks (14) on the slots (13).
4. Close the rear discharge door.
7.4 INSTALL THE MULCH PLUG
4
6
1. Remove the grass catcher.
2. Open the rear discharge door (6) and hold it.
3. Hold the mulch plug (4) by its handle and fit it in the
discharge chute.
4. Close the rear discharge door.
7
