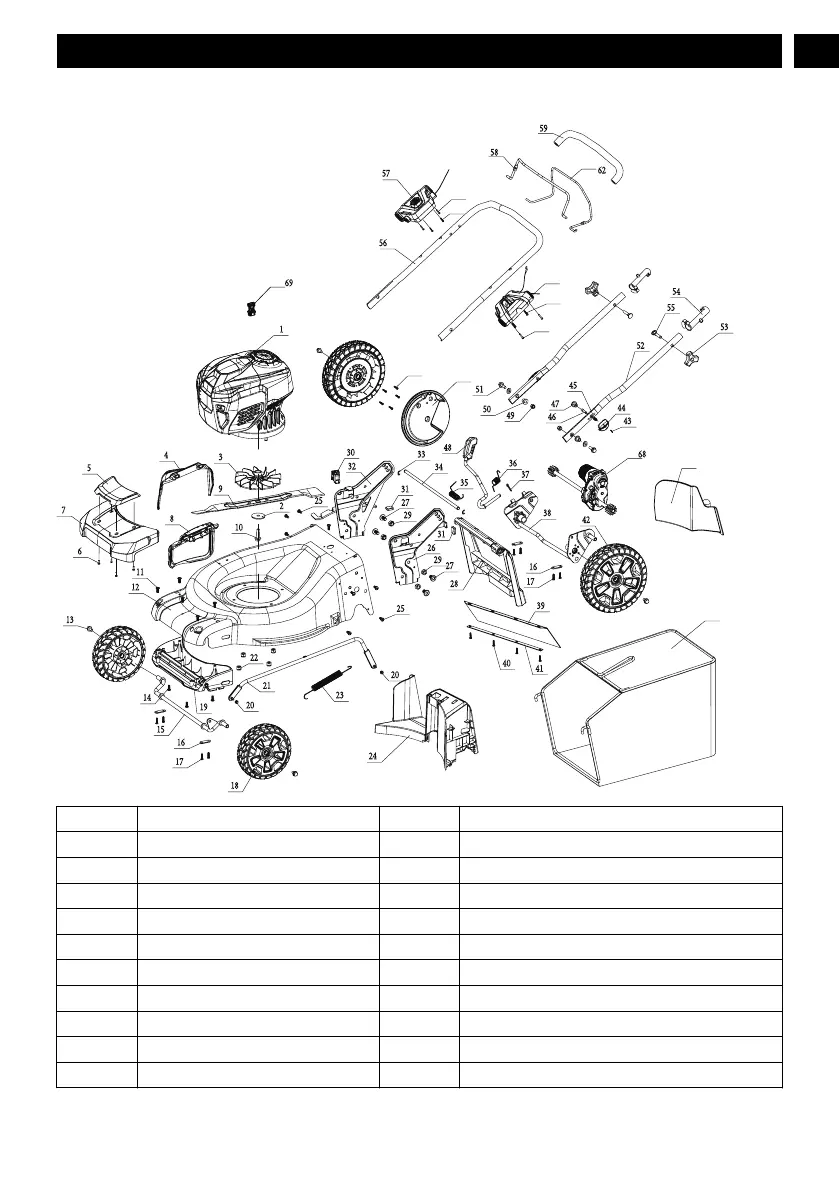

GreenWorks MO40L02 - Exploded View; Exploded View and Parts List

13 EXPLODED VIEW
1
4
8
5
7
6
12
13
15
16
18
23
21
22
24
19
26
40
41
39
42
28
38
37
36
48
35
34
33
32
51
50
49
47
46
44
45
43
53
55
56
58
59
60
61
20
10
31
52
57
62
11
17
14
64
2
3
29
9
54
30
31
20
27
27
29
25
25
16
17
63
65
66
67
68
69
65
64
No. Part No. Qty Description
1 311011576AB 1 Motor assembly
2 333021527 1 Pad
3 341191179-1 1 Fan
4 341241179 1 Side discharge chute
5 341331179U 1 Bumper cover
6 32205836 4 Screw
7 341061179C 1 Bumper main body
8 311201546 1 Side discharge cover assembly
9 333041179 1 Blade
10 322011179AC 1 Bolt
