GreenWorks Optimow 10 - Installing and Connecting the Charging Station; Position for the Charging Station as Follows

GREENWORKSTOOLS.EU
9
EN
The majority of the charging station must be inside the operating area.

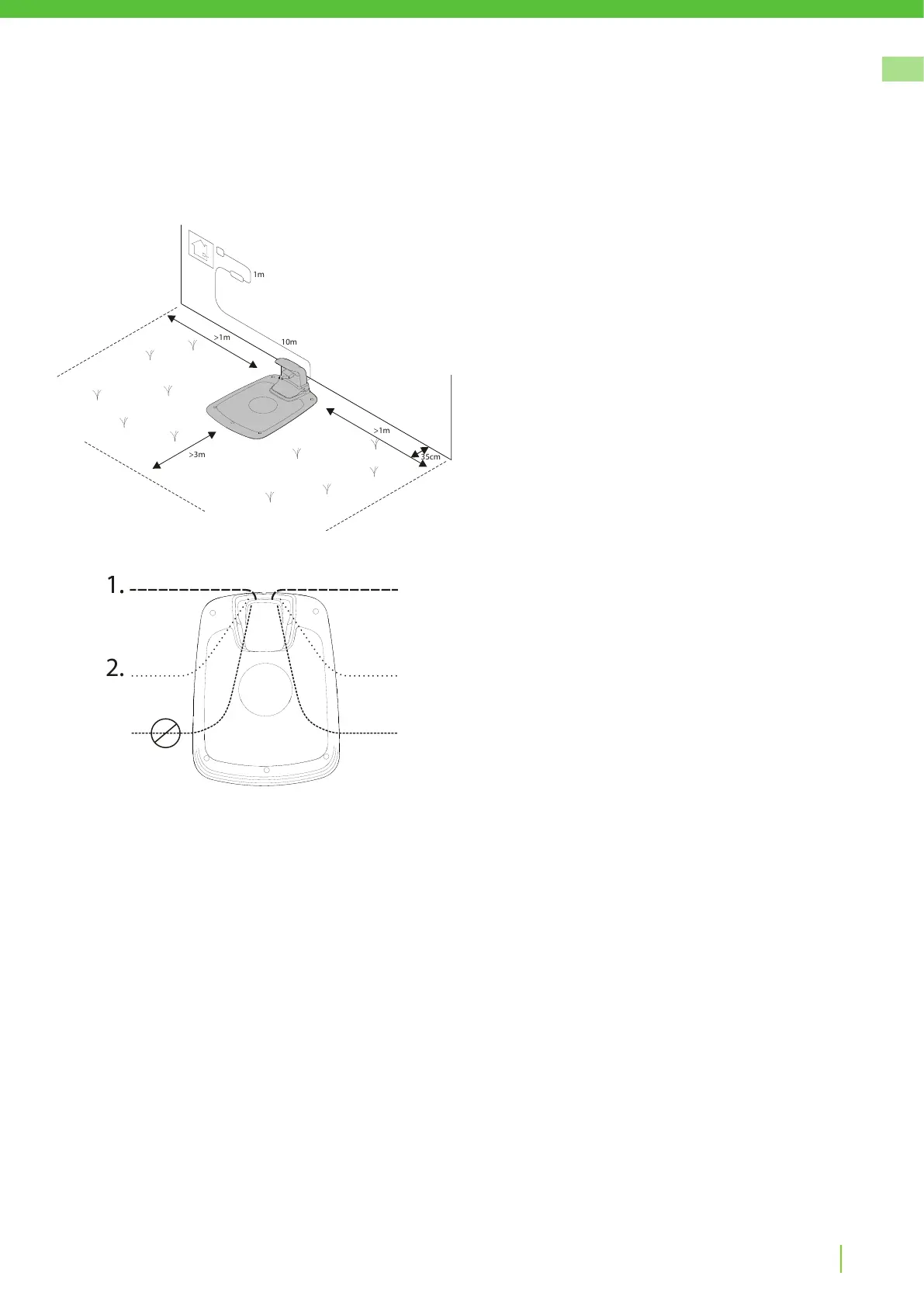

The following two options are shown in figure:
• Option 1 - Charging station is completely inside the operating area.
• Option 2 - Charging station partly outside the operating area.
Installation
Position for the charging station as follows:
• In a level spot out of direct sunlight
(The front end of the charging station must not be 5 cm higher or
lower than the back end.)
• Within reach of a wall socket
(The low voltage cable is 10 m long.)
• With at least 3 m in front of it and 1 m to each side
(Do not position in confined spaces in the operating area.)
INSTALLING AND CONNECTING THE CHARGING STATION
>1m
>1m
1m
35cm
>3m
10m
1.1.
2.
