COMPONENT DESCRIPTIONS
Tank Connections

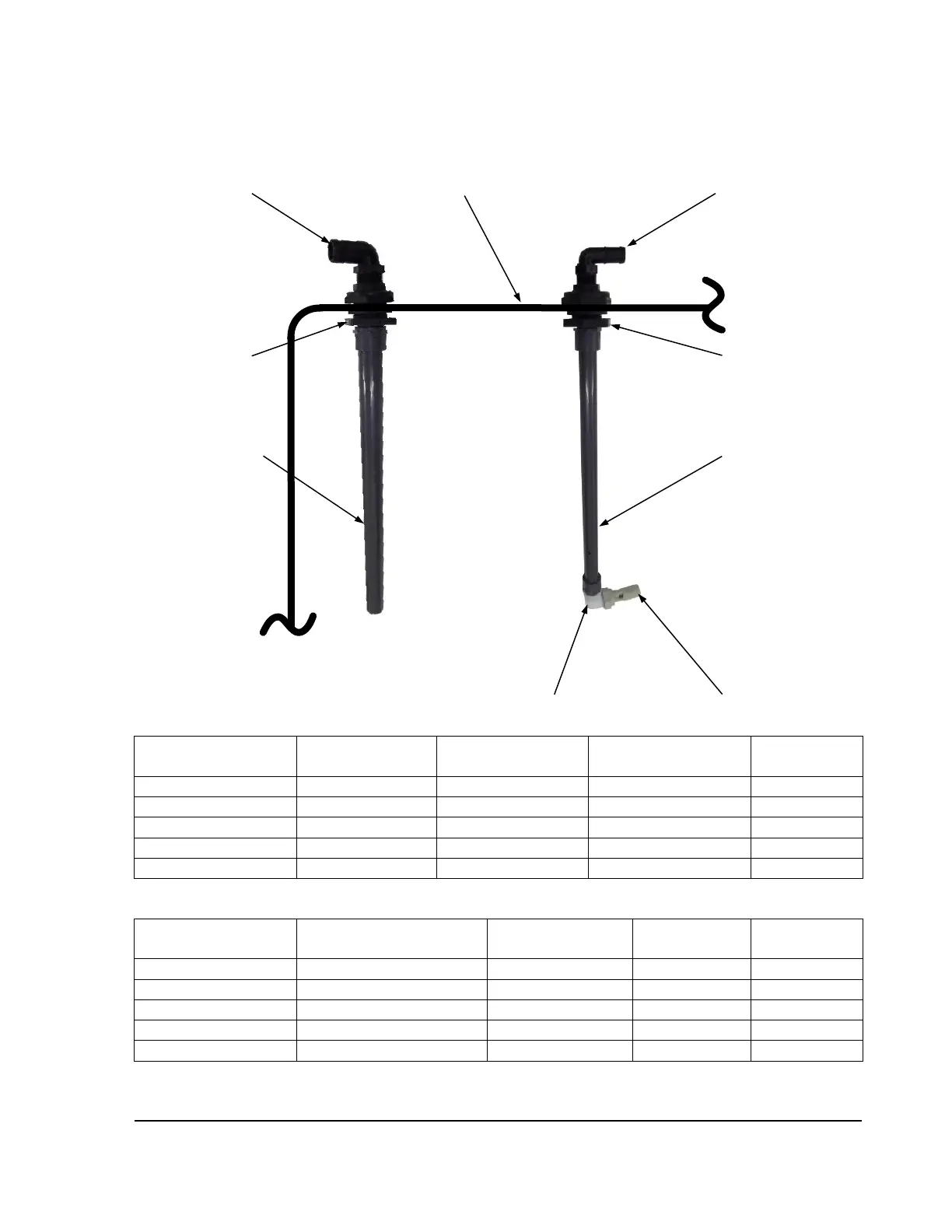

Photo 15 Tank Connection Fittings
Part Numbers
Suction Tube
Assembly
Agitator Tube
Assembly
Tank Fitting
Assembly, Suction
Barb Elbow,
Suction
V-50 & 50B-SA
STA-20
AGIT-14, 14” Lg.
TF125
HB125-90
V-100 & 100B-SA
STA-20
AGIT-20, 20” Lg.
TF125
HB125-90
V-150 & 150B-SA
STA-26
AGIT-20, 20” Lg.
TF125
HB125-90
V-200 & 200B-SA
STA-35
AGIT-29, 29” Lg.
TF125
HB125-90
V-300 & 300B-SA
STA-37
AGIT-29, 29” Lg.
TF125
HB125-90
Tank Fitting
Assembly, Return
Barb Elbow,
Return
Elbow,
Agitator
Agitator
V-50 & 50B-SA
TF075
HB075-90
SE34
500262
V-100 & 100B-SA
TF075
HB075-90
SE34
500262
V-150 & 150B-SA
TF075
HB075-90
SE34
500262
V-200 & 200B-SA
TF075
HB075-90
SE34
500262
V-300 & 300B-SA
TF075
HB075-90
SE34
500262
Suction Tube
Assembly
Tank Fitting,
Suction
Barb Elbow,
Suction
Tank Fitting,
Return
Barb Elbow,
Return
Agitator Tube
Assembly
Agitator
Elbow
Tank Wall
