VSS 10-12
SET-UP AND ASSEMBLY
Check for apparent signs of shipping damage and that the order is complete. Carefully
uncrate the sprayer and report any freight damage or shortages. Claims must be within
five days of delivery. The sprayer was completely assembled and tested prior to
shipping. Some disassembly may have been required for shipping. Re-attach the reel
to the frame in the desired location. Mount the reel on the end opposite the pump for
use in pick-up trucks or under the pump when used in enclosed trailers or vans. (See
photos 1 & 2)

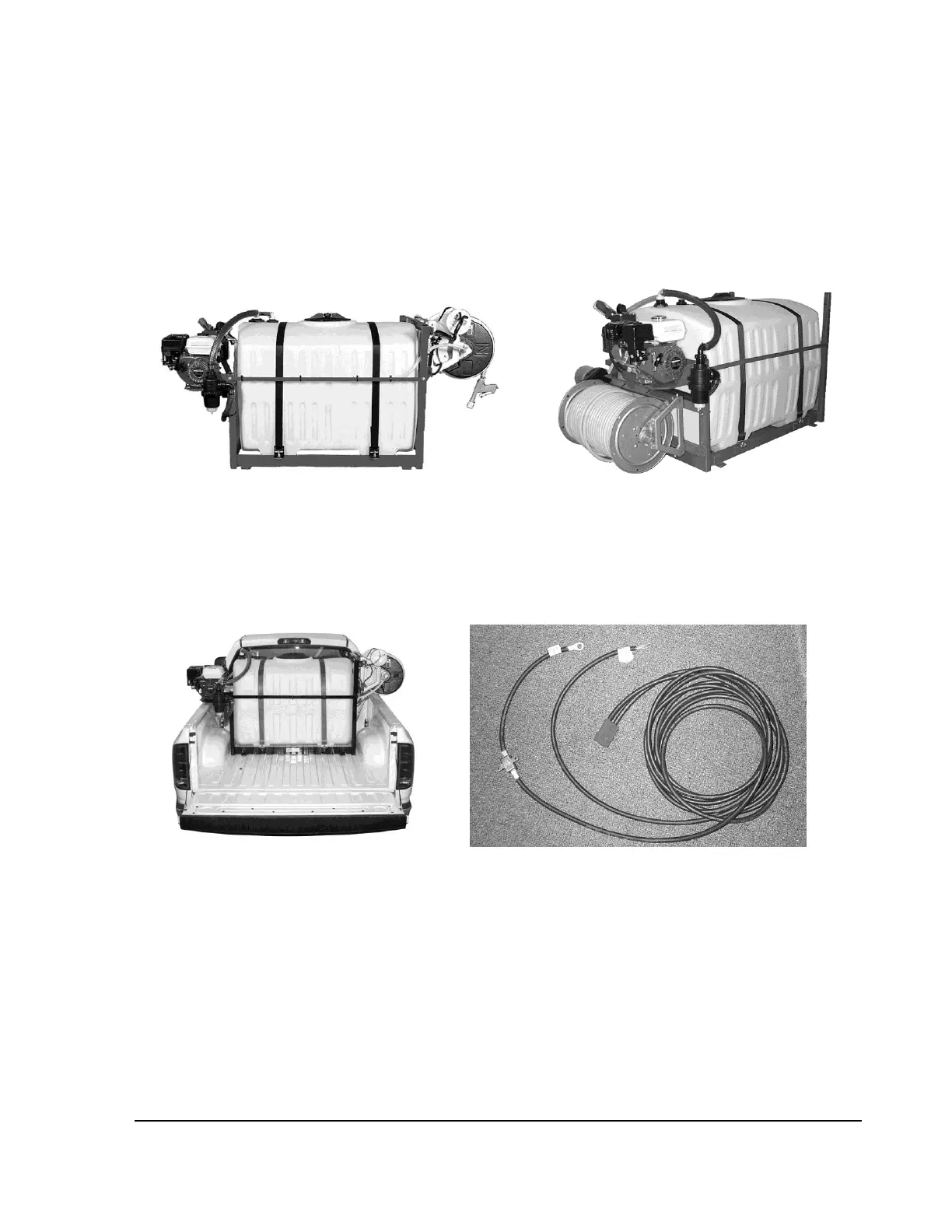

Photo 1 Reel mounted opposite pump. Photo 2 Reel mounted under pump
In a pick-up truck, the sprayer typically is mounted in the forward-most position against the
front wall of the truck bed. Secure the frame by bolting through the truck bed or by using a
ratchet strap if suitable anchoring locations are available. (See photo 3) Note that your skid
must be secured in compliance with your local Department of Transportation regulations.
Photo 3 Sprayer mounted in truck Photo 4 Wiring Harness
Do not exceed weight limitations of vehicle. The weight should be balanced left-to-right and
positioned for-and-aft to distribute the weight in accordance with the capacities of the
vehicle’s axles.
If the sprayer is equipped with an electric hose reel, install the quick-disconnect wiring
harness provided. (See photo 4) Once installed, the shorter section will stay with the sprayer
and the longer section will remain with the truck. When removing the sprayer from the truck,
simply pull the modular connectors apart. Refer to Diagram 1 (See page 4) and connect
according to the labels on the terminals at the ends of the harness cables.
