4 Operation
The operation of a retrofit seat is shown here using the example of a Vario F (0841124) without and with e-package.
4.1 Seat length adjustment (option)
By pulling the release lever (1), the complete seat can be pushed back and forth by means of guide rails.
The adjustment is latching and is limited by stops on the guide rails.
1. Release lever for length adjustment of the seat

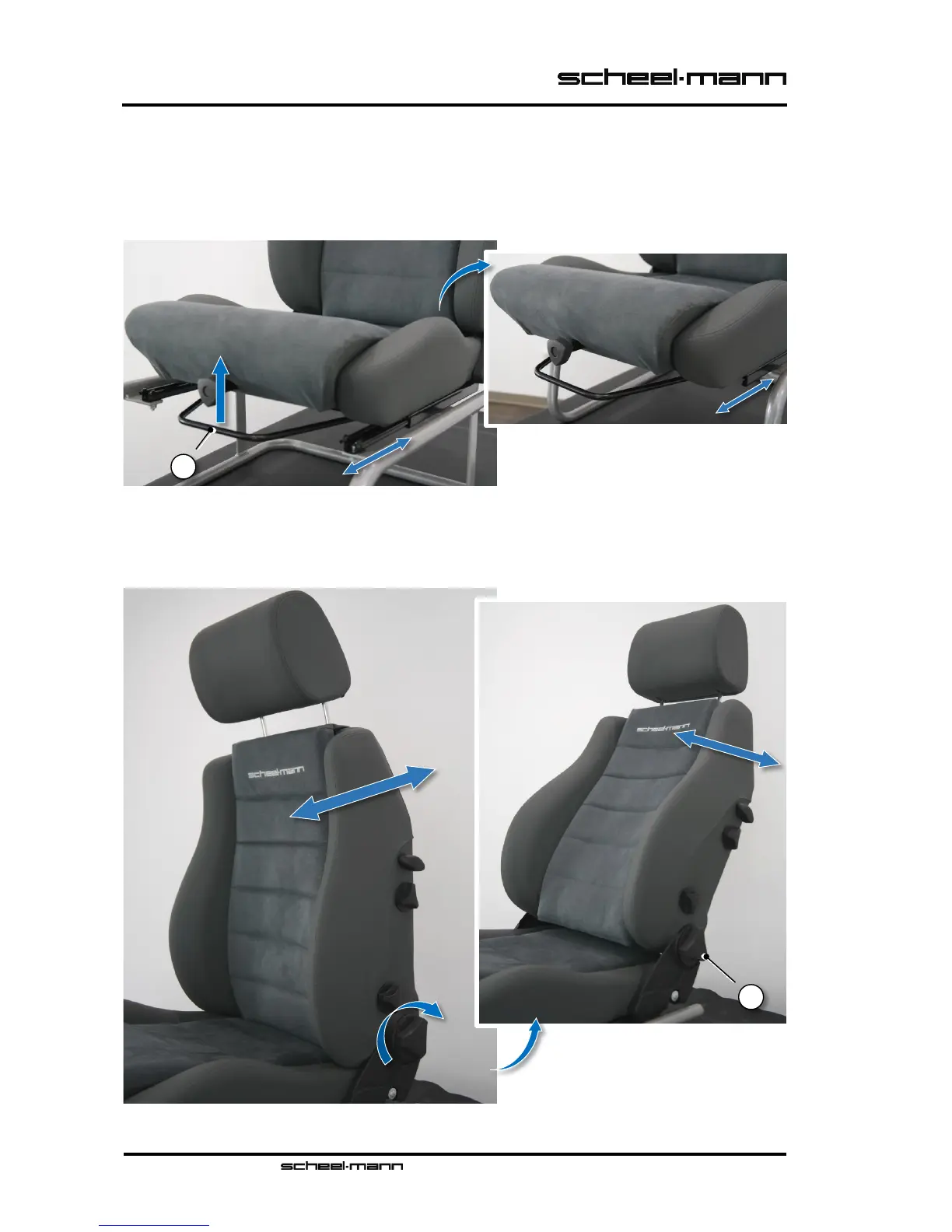

Fig. 12 Seat length adjustment (option)
4.2 Backrest inclination adjustment
The inclination of the backrest can be continuously adjusted using one of the handwheels (9) on both sides.
The possible inclination range is limited by stops.
9. Handwheel for backrest inclination adjustment
Fig. 13 Backrest inclination adjustment
