4.8 Heating in seat and back (option)
The 2-level electric heating, installed in the seat and backrest, is supplied directly with 12 V DC via a cable har-
ness by means of relays. The position of the switch (14) and a two-colour LED signal the actual operating status.
The switch is either installed in an operating panel (10) (left or right) or on a cable harness for free installation in
a suitable position in the vehicle (see 2.3.1 Electrical connection (option)).
Version with operating panel not available for the models Sportline T/F and Retro.
10. Operating panel (left or right)
14. 2-level heating switch for seat and backrest
Low (green LED)
Off (no LED)
High (red LED)

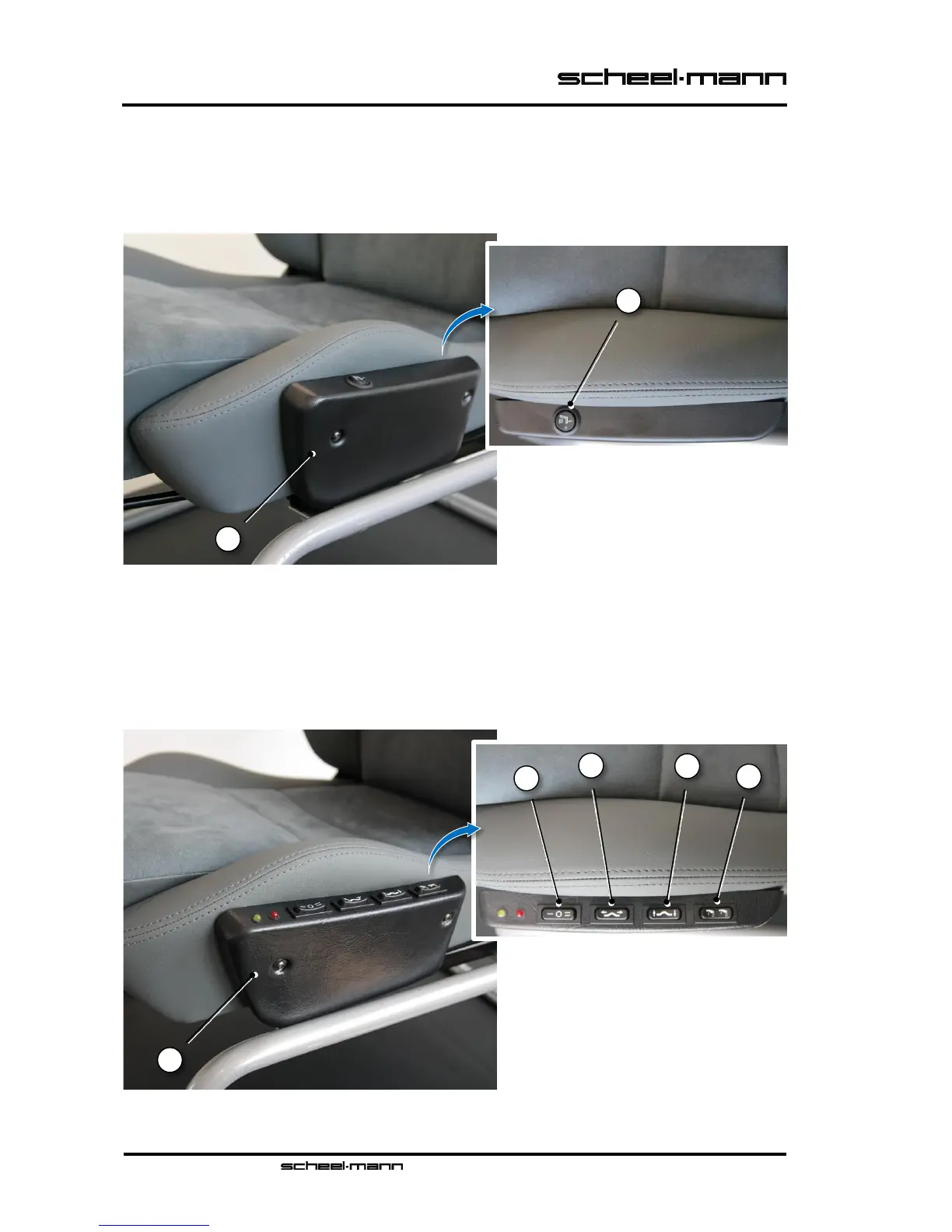

Fig. 20 Heating in seat and back (option)
4.9 E-package for Vario and Vario XXL
The e-package enables the continuously variable electrical inclination of the backrest and the continuously electri-
cal adjustment of the 4-way lumbar support. For this purpose, three clearly marked rocker keys (16 + 17 + 18)
are installed on the operating panel (10) (left or right). The drives run as long as the keys are pressed. Stops limit
the possible adjustment ranges. The e-package is only available together with 2-level electric heating in seat and
back. The position of the switch (15) and a yellow or red LED indicate the actual operating status.
Exclusive feature on the Vario and Vario XXL models with e-package.
10. Operating panel (left or right)
15. 2-level heating switch for seat and backrest
Low (yellow LED)
Off (no LED)
High (red LED)
16. Rocker key - 4-way lumbar support
curvature adjustment
17. Rocker key - 4-way lumbar support
height adjustment
18. Rocker key - backrest inclination
Fig. 21 E-package for Vario and Vario XXL
