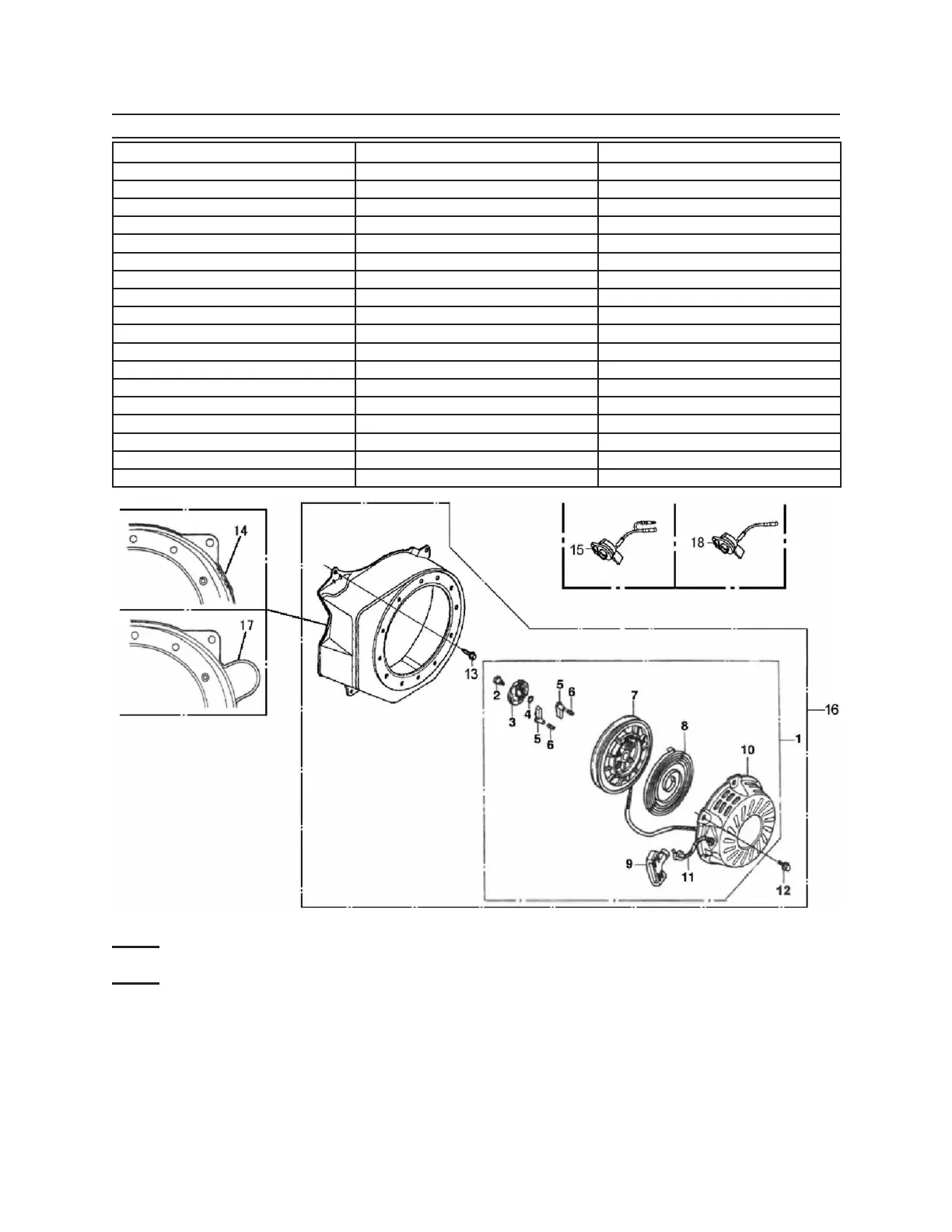

STARTER SUBASSEMBLY PARTS LIST & DIAGRAM
Part # Description Qty
1G Starter Assembly 1
2G Set Screw 1
3G Ratchet Guide 1
4G Friction Spring 1
5G Starter Ratchet 2
6G Return Spring 2
7G Recoil Starter Reel 1
8G Recoil Starter Spring 1
9G Recoil Starter Knob 1
10G Fan Cover 1
11G Rope 1
12G Bolt 6x8 3
13G Bolt 6x10 4
14G Fan Cover 1
15G Switch Assembly 1
16G Recoil Starter 1
17G Fan Cover 1
18G Stop Switch Assembly 1
Note: When ordering replacement parts from this diagram, use the sufx “G”.
Note: Some parts are listed and shown for illustration purposes only, and are not avail-
able individually as replacement parts.
