Note: When ordering replacement parts from this diagram, use the sufx “J”.
Part # Description Qty
1J Carburetor Assembly 1
2J Carburetor 1
3J Main Nozzle 1
4J Main Jet 1
5J Float Valve 1
6J Valve Set Spring 1
7J Float 1
8J Float Pin 1
9J Oil Cup Gasket 1
10J Oil Cup 1
11J Gasket Bolt 1
12J Bolt 1
13J Drain Bolt 1
14J Drain Bolt Gasket 1
15J Fuel Strainer Cup 1
16J Fuel Strainer Cup Packing 1
17J Fuel Packing 1
18J Lever 1
Part # Description Qty
19J Lever Spring 1
20J Setting Plate 1
21J Screw 3x8 2
22J Jet Set 1
23J Pilot Jet Set 1
24J Choke Lever Assembly 1
25J Choke Lever 1
26J Choke Lever Pin 1
27J Choke Set 1
28J Screw 1
29J Screw Spring 1
30J Throttle Stop Screw 1
31J Air Cleaner 1
32J Carburetor Packing 1
33J Carburetor Insulation 1
34J Packing 1
35J Throttle Valve 1

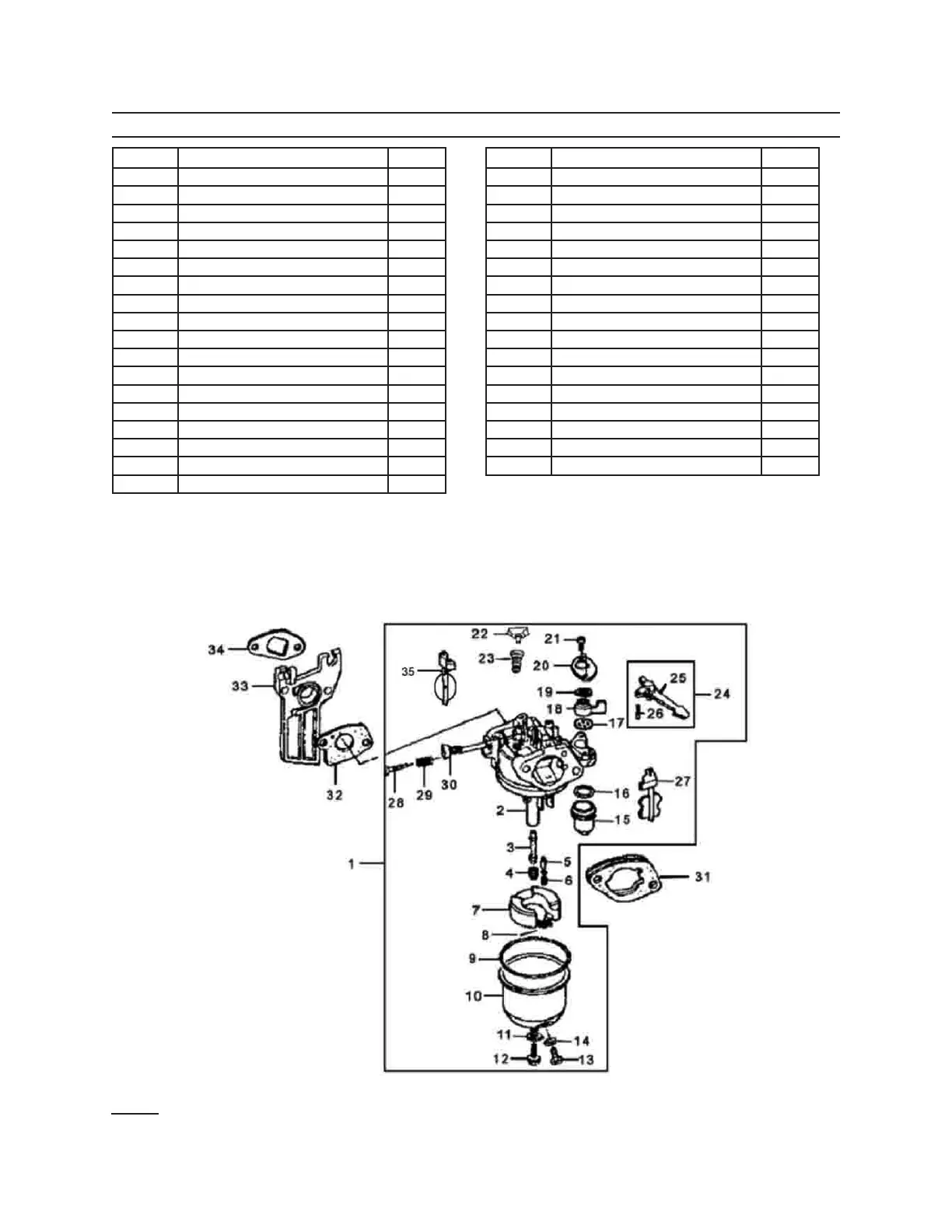

CARBURETOR PARTS LIST & DIAGRAM
