Grill Chef SS72 LP - Rotisserie Component Identification; Rotisserie Parts Diagram and List

10

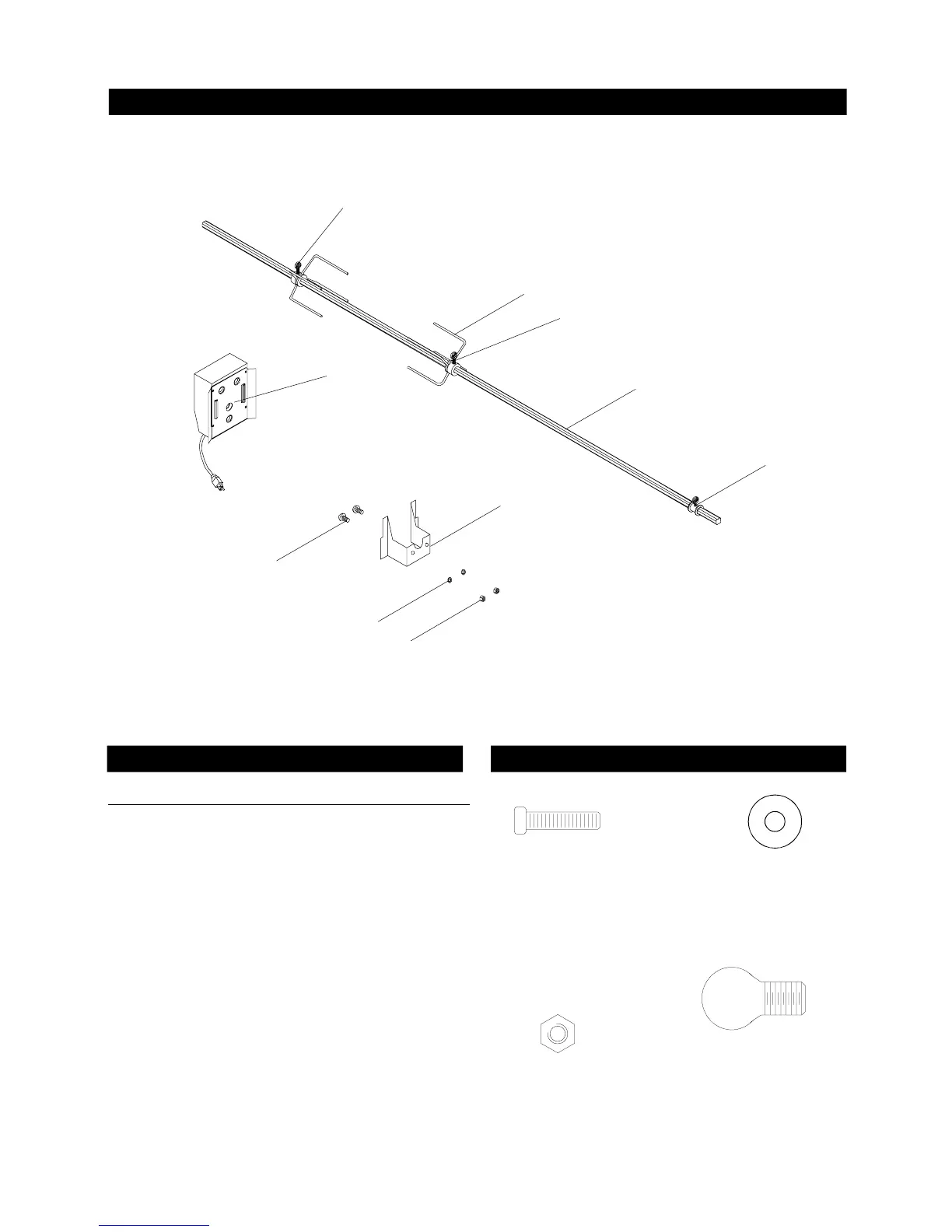

Rotisserie Parts Diagram Y0250098
Rot. Collar
Rot. Spit
Rot. Holding Fork
Rot. Motor Bracket
Rot. Motor/AC
Rot. Screw #10-24x3/4"
Rot. Washer
Rot. Nut #10-24
Rot. Thumbscrew 1/4"x1/2"
1.
2.
3.
4.
5.
6.
7.
8.
9.
1
1
2
1
1
2
2
2
2
P05508177F
P05508158F
P05508112F
P03307028A
P07101010A
S112G10124
S411G03084
S362G10124
S196G04084
Rot. Screw#10-24x3/4"
UNC
QTY. 2
Ref.# S112G10124
QTY.REF# PART#DESCRIPTION
Rotisserie Parts List Hardware for Rotisserie
Rot.Washer
QTY. 2
Ref.# S411G03084
Rot. Nut.#10-24
QTY. 2
Ref.# S362G10124
Rot.Thumbscrew
1/4"x1/2"
QTY. 2
Ref.# S196G04084
