GrillBoss GBC1306J - Expanded View & Hardware

4

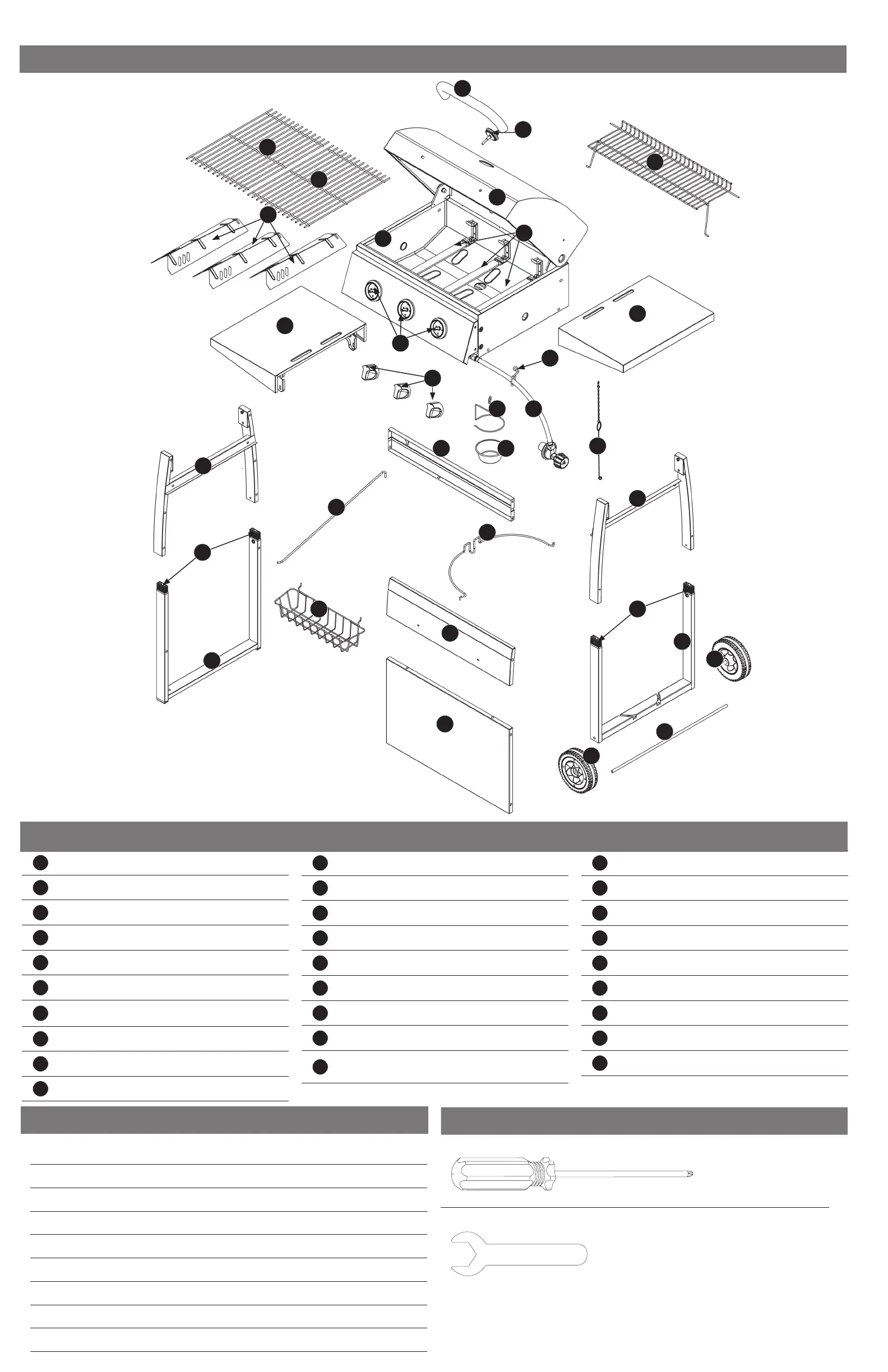

Expanded View
1
Handle G1205-030
2
Temperature Gauge B0104- JR1
3
Warming Rack G1306-010
4
Cooking Grid (2) G1406-020
5
Lid* H1306-040
6
Heat Plate (3) B0212-030
7
Burner (3)* G1306-060
8
Grill Body Assembly* G1306-070
9
Control Knob Bezel (3)* G1205-200
10
Control Knob (3) G0900-080
11
Side Shelf (2) G1205-050
12
QCC Clip* G1205-220
13
Regulator/Hose Assembly* G1306-090
14
Lighting Hook B0223-B01
15
Grease Cup Support B0220-D01
16
Grease Cup B0219-D01
17
Rear Cart Frame Support G1306-140
18
Upper Cart Frame (2) G1205-100
19
Cart Frame Support
Wire
G1306-130
20
LP Gas Tank Retainer Wire G1205-150
21
Left Lower Cart Frame G1205-120
22
Condiment Basket G0900-160
23
Upper Front Panel G1306-170
24
Right Lower Cart Frame G1205-210
25
Axle G1205-220
26
Wheel (2) B0302-E01
27
Lower Front Panel G1306-190
28
Cart Frame Support (4)* G0900-110
* Pre-assembled
Parts List
A
Screw
ST4.8x10 Nickel Plated Phillips Truss Head
4 pcs
B
Screw
M5x15 Nickel Plated Phillips Truss Head
12 pcs
C
Screw
M5x15 Nickel Plated Phillips Step
4 pcs
D
Screw
M6x15 Nickel Plated Phillips Truss Head
7 pcs
E
Wing Screw
M6x15 Nickel Plated
1 pc
F
Nut
M8 Nickel Plated
2 pcs
G
Wing Nut
M5 Nickel Plated
1 pc
H
Washer
ø6 Nickel Plated
4 pcs
I
Lock Washer
ø6 Nickel Plated
2 pcs
Tools Required for Assembly ( Included)
#2 Phillips Head Screwdriver 1 pc
M8 Wrench 2 pcs
Hardware
1
13
11
20
18
23
24
14
26
26
17
8
5
3
4
4
18
21
19
22
25
27
2
15
16
11
9
10
7
12
6
28
28
