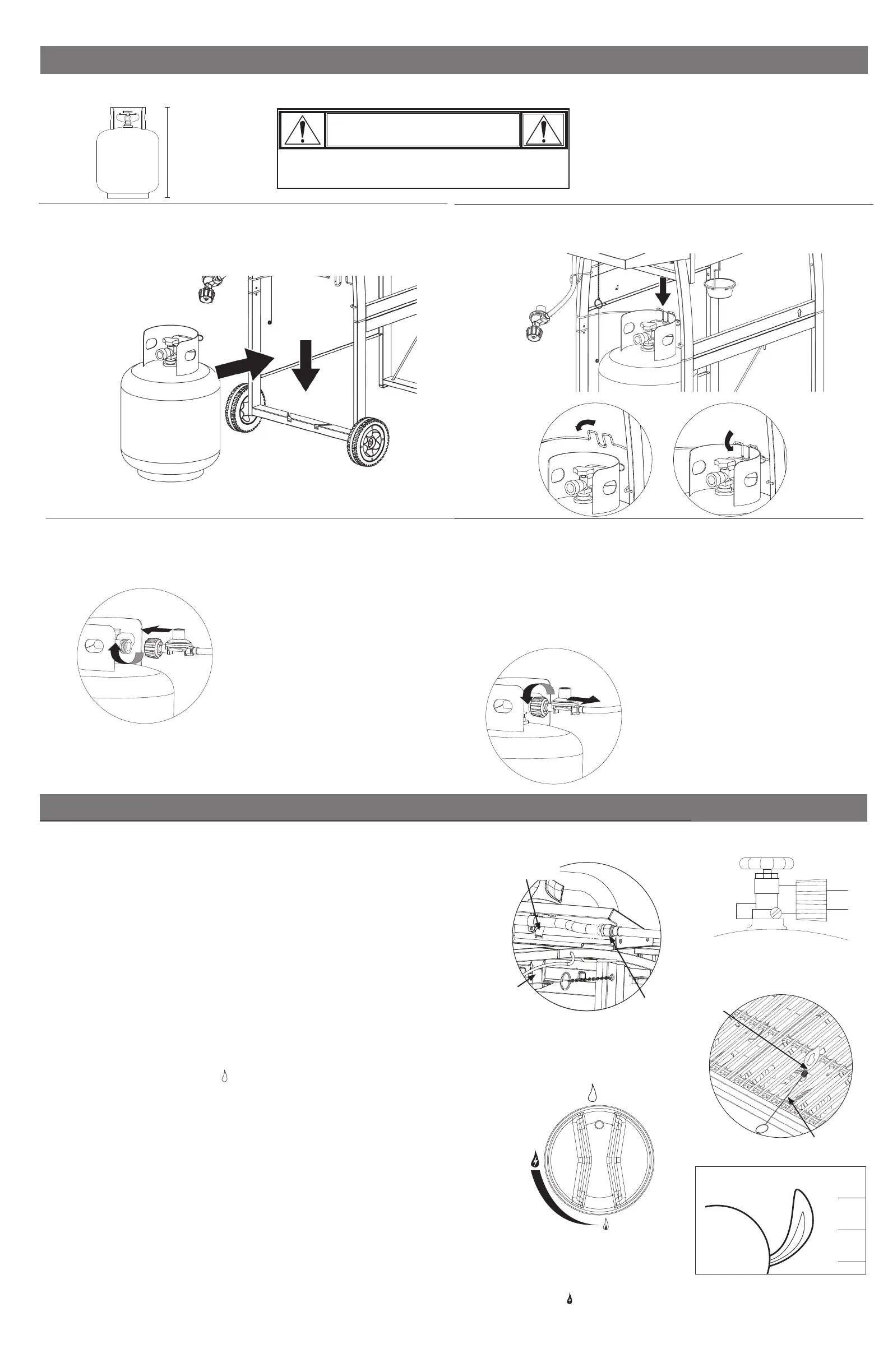

9
To operate, you will need one precision-filled standard grill LP gas tank with external valve threads.
Operating Main Burners
First Use
1. Make sure all labels, packaging and protective films have been removed from the grill.
2. Remove manufacturing oils before cooking on this grill for the first time by operating the grill for at least 15 minutes on
(HIGH) with the lid closed. This will “heat clean” the internal parts and
dissipate odors.
20 lb
9 Kg
17.9 in. / 45.5 cm
12.2 in. / 31 cm
Securing LP Gas Tank
Secure tank by sliding the tank retainer wire over shoulder of LP gas tank.
Inserting LP Gas Tank
Place precision-filled LP gas tank upright into the notches in
the right cart frame so the tank valve is facing the gas line connection.
Connecting LP Gas Tank
1. Before connecting, be sure there is no debris caught in the head of the LP gas tank, head
of the regulator valve or in the head of the burner or burner ports.
2. Connect regulator/hose assembly to tank by turning knob clockwise until it stops.
Disconnecting LP Gas Tank
1. Before disconnecting, make sure the LP gas tank valve is “CLOSED.”
2. Disconnect regulator/hose assembly from LP gas tank by turning knob counterclockwise
until it is loose.
W CAUTION: LP gas tank must be properly disconnected and removed
prior to moving this grill.
3. Place the protective cap cover on the LP tank and store the tank outdoors in a well
ventilated area out of direct sunlight.
Operating Instructions
Checking for Leaks
Burner Connections
1. Make sure the regulator hose and valve connections are securely fastened to the burner and the tank.
2. Visually check the connection between the burner/venturi tube and orifice.
3. Make sure the burner/venturi tube fits over the orifice.
W WARNING: Failure to inspect this connection or follow these instructions could
cause a fire or an explosion which can cause death, serious bodily injury or
damage to property.
4. Please refer to diagram for proper installation (Figure 1).
5. If the burner/venturi tube does not rest flush to the orifice, as shown，please contact 1.800.694.0013
for assistance.
Tank/Gas Line Connection
1. Make 2-3 oz. of leak detection solution by mixing one part liquid dishwashing soap with three parts
water.
2. Make sure control knobs are in the “
OFF” position (Figure 2).
3. Connect LP gas tank per “Installing LP Gas Tank” section.
4. Turn LP gas tank valve to “OPEN.”
5. Spoon several drops of solution, or use a squirt bottle, at all “X” locations (Figures 1 and 3).
a. If any bubbles appear, turn LP gas tank valve to “CLOSED,” reconnect and re-test.
b. If you continue to see bubbles after several attempts, turn LP gas tank valve to “CLOSED” and
disconnect LP gas tank, per “Disconnecting LP Gas Tank” section.
c. If no bubbles appear after one minute, turn LP gas tank valve to “CLOSED,” wipe away solution and
proceed.
Figure 1
LP Gas Valve
with Orifice
Valve
Soft Pipe
Connection
Burner/
Venturi
Tube
Figue 2
OFF
APAGADO
Figure 3
X
X
X
X
X
Figue 2
Lighting
Rod
Match
Figure 5
Burner
Flame
Slight
Yellow
Slight
Blue
Dark
Blue
Installing LP Gas Tank
.
W LP gas tank must be properly disconnected and
removed prior to moving this grill.
CAUTION
