Controls
Pos. Designation Function
B Flame regulator middle Fill burner with gas to ignite (keep depressed and turn to „lar-
ge ame“ setting).
After igniting set the heat output for the centre burner (turn).
left Fill burner with gas to ignite (keep depressed and turn to „lar-
ge ame“ setting).
After ignition adjust the heat input for the left burner (turn).
right Ignite the right burner (keep depressed briey and turn to "lar-
ge ame" setting).
After ignition adjust the heat supply for the right burner (turn).

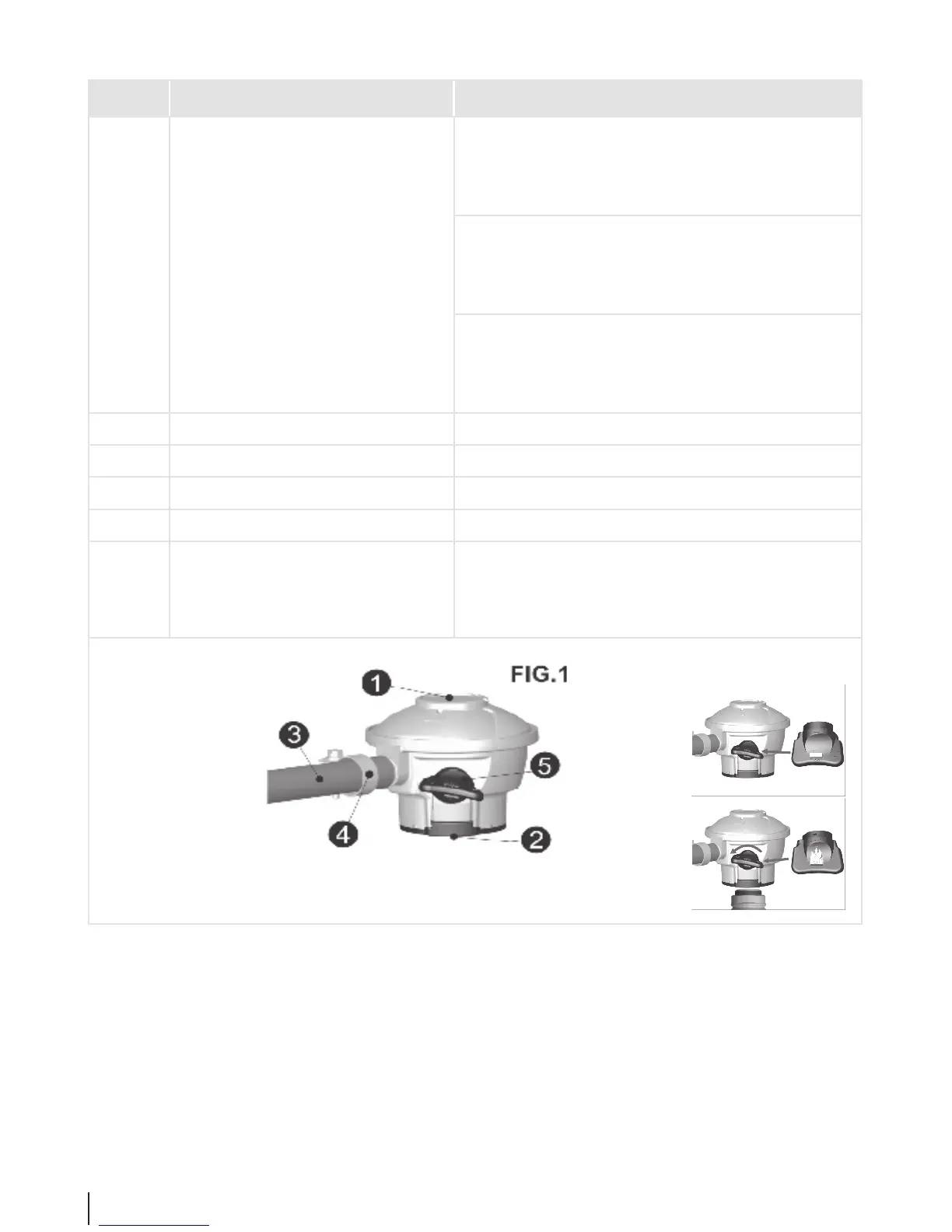

1 Pressure reducer Reduce gas pressure.
2 Gas cylinder for bottle valve Fuel container
3 Rubber hose Directs gas to burner
4 Proper hose clip Fuel container
5 Regulator handle Cut-o safety device with 2 settings:
„-“ setting: Gas o / shut o gas cylinder
„ame“: Gas is on.
Gas o:
Gas on:
