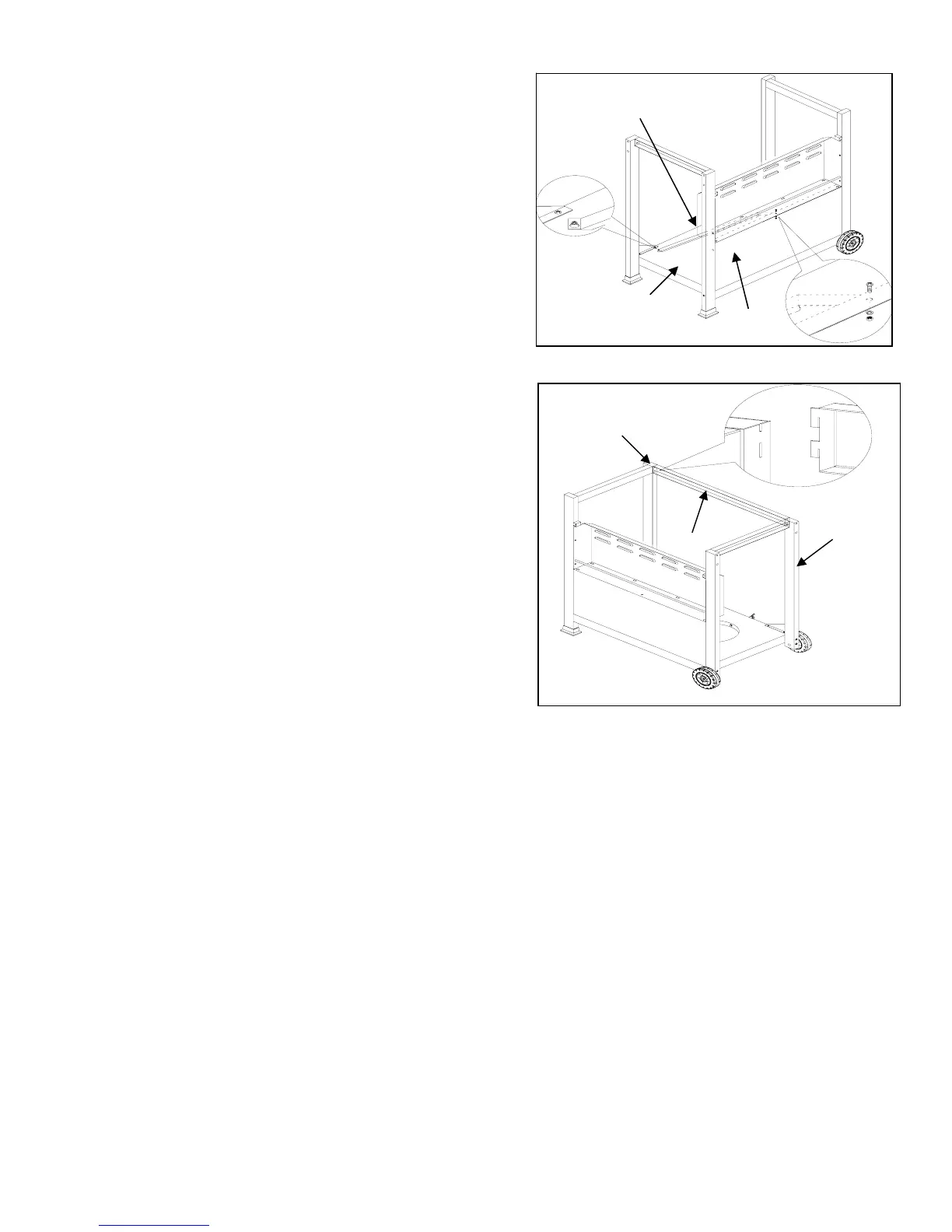

8. Diagonal Bar Barrier Assembly
Loosen but do not remove the one screw
which is pre-assembled on the Bottom
Panel (B). Secure solid end of the Diagonal
Bar Barrier (Y) to the underside of the Front
Panel (S), then secure other end of Diagonal
Bar Barrier (Y) by clipping the open hole onto
the screw which pre-assembled on the Bottom
Panel (B). Tighten the loosened screw
As shown in Fig. 10.
9. Cart Beam Assembly
Insert the Cart Beam (R) into Cart Leg, Back
Left (G) and Cart Leg, Back Right (J), aligning
the holes. The Cart Beam (R) will fit into holes
as shown in Fig. 11. Secure the Cart Beam by
pressing it firmly into the holes of the Cart Legs
Fig. 11
G
Y
B
S
Fig. 10
R
J
