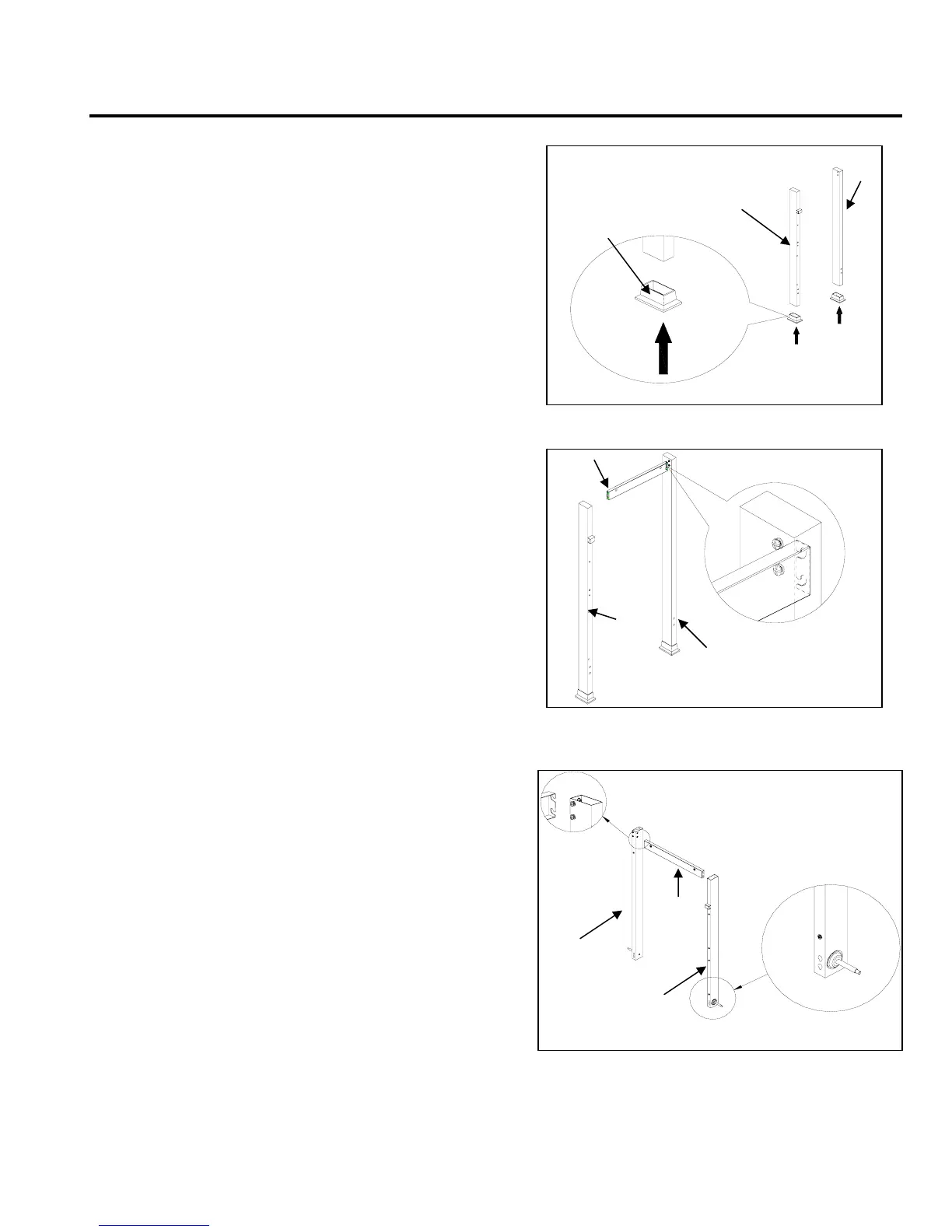

1. Cart Caster and Cart Assembly
a) Place the Cart Caster Inset (K) into the Cart Leg,
Front Left (F) and Cart Leg, Back Left (G).
As shown in Fig. 1.
b) Loosen, but do not remove the screws that are
pre-assembled on the Cart Leg, Front Left (F) and
Cart Leg, Back Left (G). Attach Cart Leg, Front
Left (F) and Cart Leg, Back Left (G) to Cart
Frame (H), by aligning the holes on the Cart Frame (H).
Tighten the screws that were loosened above.
Note: Make sure the flat side of Cart Frame (H)
faces out to the left when attaching. As shown in Fig. 2.
c) Loosen, but do not remove the screws that are
pre-assembled on the Cart Leg, Front Right (I)
and Cart Leg, Back Right (J). Attach Cart Leg,
Front Right (I) and Cart Leg, Back Right (J) to
Cart Frame (H), by aligning the holes on the Cart
Frame. Tighten the screws that were loosened above.
Note: Make sure the flat side of Cart Frame (H) faces
out to the right when attaching. As shown in Fig. 3.
ASSEMBLY INSTRUCTIONS
Fig. 2
Fig. 3
J
I
Fi
g
. 1
G
K
F
H
G
F
